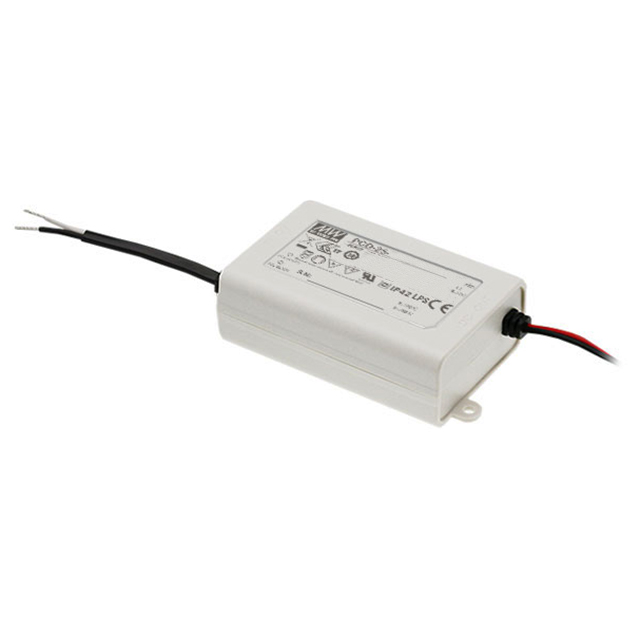

PCD-25 Series

Catalog

LED DRIVER CC AC/DC 12-18V 1.4A

Part	Mounting Type	Voltage - Input (Min) [Min]	Number of Outputs	Topology	Efficiency	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Voltage - Output [Min]	Voltage - Output [Max]	Termination Style	Features	Type	Ratings	Dimming	Voltage - Input (Max) [Max]	Approval Agency
MEAN WELL USA Inc. PCD-25-1400A	Chassis Mount	90 VAC	1	AC DC Converter	80 %	3750 VDC	-30 ░C	60 °C	1.4 A	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	25 W	12 V	18 V	Wire Leads	OTP SCP	Constant Current	IP42	TRIAC	135 VAC
MEAN WELL USA Inc. PCD-25-1050A	Chassis Mount	90 VAC	1	AC DC Converter	80.5 %	3750 VDC	-30 ░C	60 °C	1.05 A	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	25 W	16 V	24 V	Wire Leads	OTP SCP	Constant Current	IP42	TRIAC	135 VAC
MEAN WELL USA Inc. PCD-25-700B	Chassis Mount	180 VAC	1	AC DC Converter	81 %	3750 VDC	-30 ░C	60 °C	700 mA	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	25 W	24 V	36 V	Wire Leads	OTP SCP	Constant Current	IP42	TRIAC	295 VAC	CB CE
