ATS2D Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K

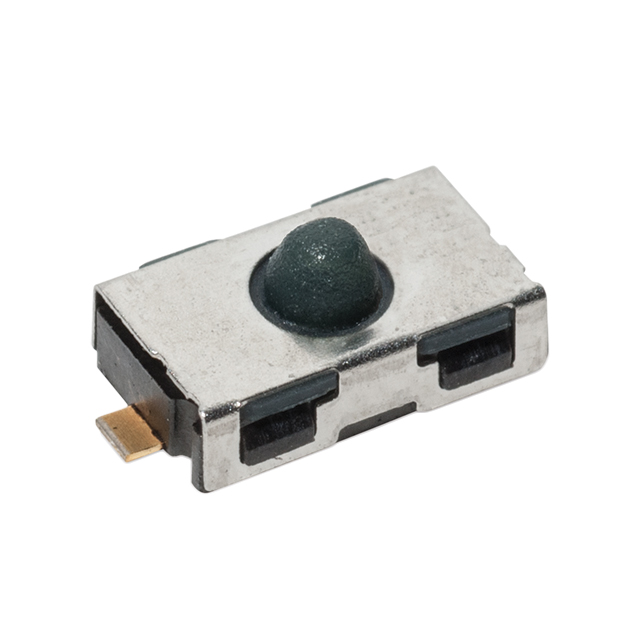

SWITCH DETECTOR N.C. SPST PLUNGER GULL WING 0.05A 32VDC 1VA SMD T/R
| Part | Mounting Type | Switch Travel | Outline [x] | Outline [y] | Contact Rating @ Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Operating Force | Switch Function | Actuator Orientation | Circuit | Illumination | Actuator Height off PCB, Vertical | Termination Style | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Surface Mount | 1.1 mm | 6 mm | 3.8 mm | 0.05 A | 85 °C | -40 °C | IP54 - Dust Protected Water Resistant | 204 gf | On-Mom | Top Actuated | SPST-NC | Non-Illuminated | 3.2 mm | Gull Wing | Standard |
 Littelfuse/Commercial Vehicle Products | Surface Mount | 1.1 mm | 6 mm | 3.8 mm | 0.01 A 32 VDC | 125 °C | -40 °C | IP54 - Dust Protected Water Resistant | 204 gf | On-Mom | Top Actuated | SPST-NC | Non-Illuminated | 3.2 mm | Gull Wing | Standard |
