TPA6203A1 Series

1.25-W, mono, analog input Class-AB audio amplifier

Catalog

1.25-W, mono, analog input Class-AB audio amplifier

Part	Max Output Power x Channels @ Load	Supplier Device Package	Output Type	Type	Features	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [custom]
Texas Instruments TPA6203A1DRBR	1 1.25 W	8-SON (3x3)	1-Channel (Mono)	Class AB	Depop Differential Inputs Shutdown Thermal Protection	Surface Mount	2.5 V	5.5 V	8-VDFN Exposed Pad	85 °C	-40 °C

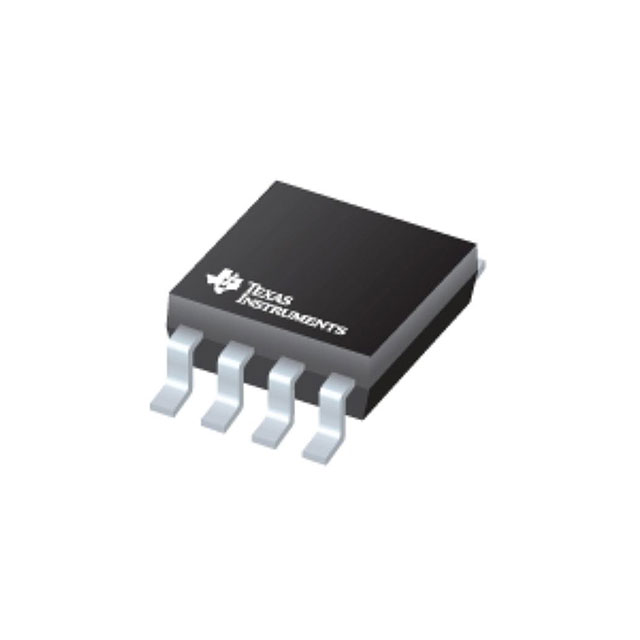

Texas Instruments TPA6203A1NMBR	1 1.25 W	8-NFBGA (2x2)	1-Channel (Mono)	Class AB		Surface Mount	2.5 V	5.5 V	8-VFBGA	85 °C	-40 °C
Texas Instruments TPA6203A1DRB	1 1.25 W	8-SON (3x3)	1-Channel (Mono)	Class AB	Depop Differential Inputs Shutdown Thermal Protection	Surface Mount	2.5 V	5.5 V	8-VDFN Exposed Pad	85 °C	-40 °C
Texas Instruments TPA6203A1DGN	1 1.25 W	8-HVSSOP	1-Channel (Mono)	Class AB	Differential Inputs Shutdown Thermal Protection	Surface Mount	2.5 V	5.5 V	8-MSOP 8-TSSOP Exposed Pad	85 °C	-40 °C	0.118 in 3 mm

Catalog

1.25-W, mono, analog input Class-AB audio amplifier

Key Features

• 1.25 W Into 8 Ω From a 5-V Supply atTHD = 1% (Typical)Low Supply Current: 1.7 mA TypicalShutdown Control < 10 µAOnly Five External ComponentsImproved PSRR (90 dB) and Wide Supply Voltage (2.5 V to 5.5 V) for Direct Battery OperationFully Differential Design Reduces RFRectificationImproved CMRR Eliminates Two Input Coupling CapacitorsC(BYPASS)Is Optional Due to Fully Differential Design and High PSRRAvaliable in a 2 mm x 2 mm MicroStarJunior BGA Package (GQV, ZQV)Available in 3 mm x 3 mm QFN Package (DRB)Available in an 8-Pin PowerPAD MSOP (DGN)APPLICATIONSDesigned for Wireless or Cellular Handsets and PDAs1.25 W Into 8 Ω From a 5-V Supply atTHD = 1% (Typical)Low Supply Current: 1.7 mA TypicalShutdown Control < 10 µAOnly Five External ComponentsImproved PSRR (90 dB) and Wide Supply Voltage (2.5 V to 5.5 V) for Direct Battery OperationFully Differential Design Reduces RFRectificationImproved CMRR Eliminates Two Input Coupling CapacitorsC(BYPASS)Is Optional Due to Fully Differential Design and High PSRRAvaliable in a 2 mm x 2 mm MicroStarJunior BGA Package (GQV, ZQV)Available in 3 mm x 3 mm QFN Package (DRB)Available in an 8-Pin PowerPAD MSOP (DGN)APPLICATIONSDesigned for Wireless or Cellular Handsets and PDAs

Description

The TPA6203A1 is a 1.25-W mono fully differential amplifier designed to drive a speaker with at least 8-Ω impedance while consuming less than 37 mm2(ZQV package option) total printed-circuit board (PCB) area in most applications. This device operates from 2.5 V to 5.5 V, drawing only 1.7 mA of quiescent supply current. The TPA6203A1 is available in the space-saving 2 mm x 2 mm MicroStar Junior BGA package, and the space saving 3 mm x 3 mm QFN (DRB) package. Features like 85-dB PSRR from 90 Hz to 5 kHz, improved RF-rectification immunity, and small PCB area makes the TPA6203A1 ideal for wireless handsets. A fast start-up time of 4 µs with minimal pop makes the TPA6203A1 ideal for PDA applications. The TPA6203A1 is a 1.25-W mono fully differential amplifier designed to drive a speaker with at least 8-Ω impedance while consuming less than 37 mm2(ZQV package option) total printed-circuit board (PCB) area in most applications. This device operates from 2.5 V to 5.5 V, drawing only 1.7 mA of quiescent supply current. The TPA6203A1 is available in the space-saving 2 mm x 2 mm MicroStar Junior BGA package, and the space saving 3 mm x 3 mm QFN (DRB) package. Features like 85-dB PSRR from 90 Hz to 5 kHz, improved RF-rectification immunity, and small PCB area makes the TPA6203A1 ideal for wireless handsets. A fast start-up time of 4 µs with minimal pop makes the TPA6203A1 ideal for PDA applications.
