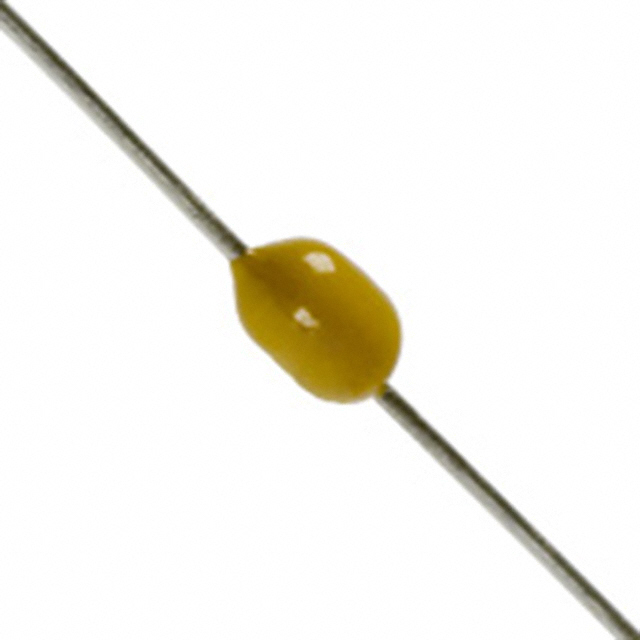

C412C Series

Manufacturer: KEMET

Catalog

MULTILAYER CERAMIC CAPACITOR, AXIMAX SERIES, 0.1 - F, - 10%, X7R, 50 V, AXIAL LEADED ROHS COMPLIANT: YES

Part	Mounting Type	Capacitance	Voltage - Rated	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Applications	Tolerance	Temperature Coefficient	Lead Style	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Features
KEMET C412C104K5R5TA	Through Hole	100000 pF	50 VDC	0.17 in	0.12 "	4.32 mm	3.05 mm	General Purpose	10 %	X7R	Straight	Axial	-55 C	125 °C
KEMET C412C223K1R5TA	Through Hole	0.022 µF	100 V	0.17 in	0.12 "	4.32 mm	3.05 mm	General Purpose	10 %	X7R	Straight	Axial	-55 C	125 °C
KEMET C412C683K5R5TA7200	Through Hole	0.068 µF	50 VDC	0.17 in	0.12 "	4.32 mm	3.05 mm	General Purpose	10 %	X7R	Straight	Axial	-55 C	125 °C
KEMET C412C222J5G5TA	Through Hole	2200 pF	50 VDC	0.17 in	0.12 "	4.32 mm	3.05 mm	General Purpose	5 %	C0G NP0	Straight	Axial	-55 C	125 °C	Low ESL
KEMET C412C152J5G5TA7200	Through Hole	1500 pF	50 VDC	0.17 in	0.12 "	4.32 mm	3.05 mm	General Purpose	5 %	C0G NP0	Straight	Axial	-55 C	125 °C	Low ESL
KEMET C412C104K5R5TA7200	Through Hole	100000 pF	50 VDC	0.17 in	0.12 "	4.32 mm	3.05 mm	General Purpose	10 %	X7R	Straight	Axial	-55 C	125 °C
KEMET C412C223K1R5TA7200	Through Hole	0.022 µF	100 V	0.17 in	0.12 "	4.32 mm	3.05 mm	General Purpose	10 %	X7R	Straight	Axial	-55 C	125 °C
KEMET C412C152F5G5TA	Through Hole	1500 pF	50 VDC	0.17 in	0.12 "	4.32 mm	3.05 mm	General Purpose	1 %	C0G NP0	Straight	Axial	-55 C	125 °C	Low ESL
KEMET C412C222J5G5TA7200	Through Hole	2200 pF	50 VDC	0.17 in	0.12 "	4.32 mm	3.05 mm	General Purpose	5 %	C0G NP0	Straight	Axial	-55 C	125 °C	Low ESL
KEMET C412C104M1U5TA7200	Through Hole	100000 pF	100 V	0.17 in	0.12 "	4.32 mm	3.05 mm	General Purpose	20 %	Z5U	Straight	Axial	10 °C	85 °C
