0531-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

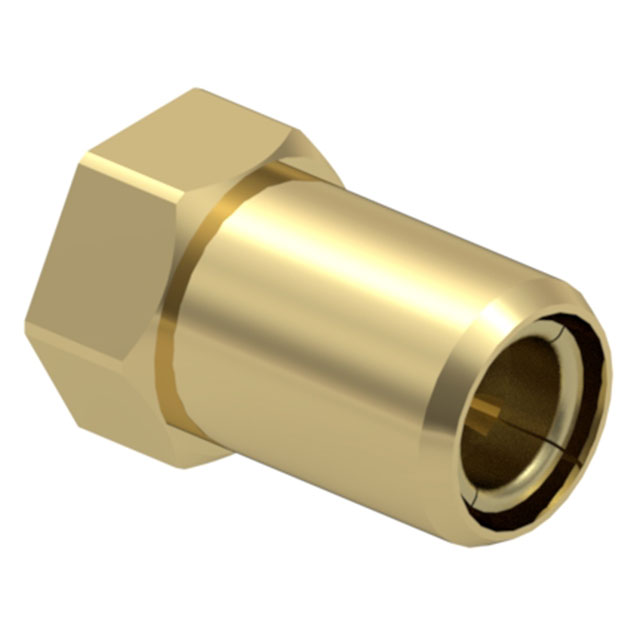

CONN PIN RCPT .018-.023 HEX
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Socket Depth | Socket Depth | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Termination | Tail Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.68 mm | 0.066 in | 0.6 mm | 0.018 in | 0.024 in | 0.46 mm | 0.048 in | 1.22 mm | Gold | 30 Áin | 0.76 Ám | 0.068 in | 1.73 mm | Hex Press-Fit | No Tail | Beryllium Copper |
