003903 Series

Manufacturer: Molex

Catalog

CONN PLUG HSG 4POS 6.70MM

Part	Note	Pitch	Pitch	Contact Termination	Insulation Material	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Color	Contact Type	Fastening Type	Number of Positions	Row Spacing	Row Spacing	Number of Rows [custom]	Features
Molex 0039036042	Contacts Not Included	6.7 mm	0.264 in	Crimp	Nylon Polyamide (PA)	Plug	Free Hanging (In-Line)	-40 C	105 ░C	1	Natural	Male or Female	Locking Ramp	4

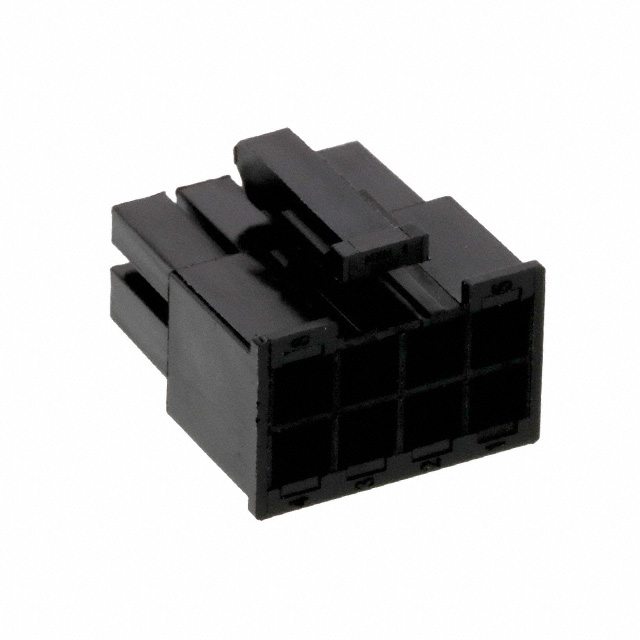

Molex 0039039082	Contacts Not Included	4.2 mm	0.165 in	Crimp	Nylon 6/6 Polyamide (PA66)	Receptacle	Free Hanging (In-Line)				Black	Female Socket	Latch Lock	8	0.165 in	4.2 mm	2
Molex 0039036040	Contacts Not Included	6.7 mm	0.264 in	Crimp	Nylon Polyamide (PA)	Plug	Panel Mount Snap-In	-40 C	105 ░C	1	Natural	Male or Female	Locking Ramp	4

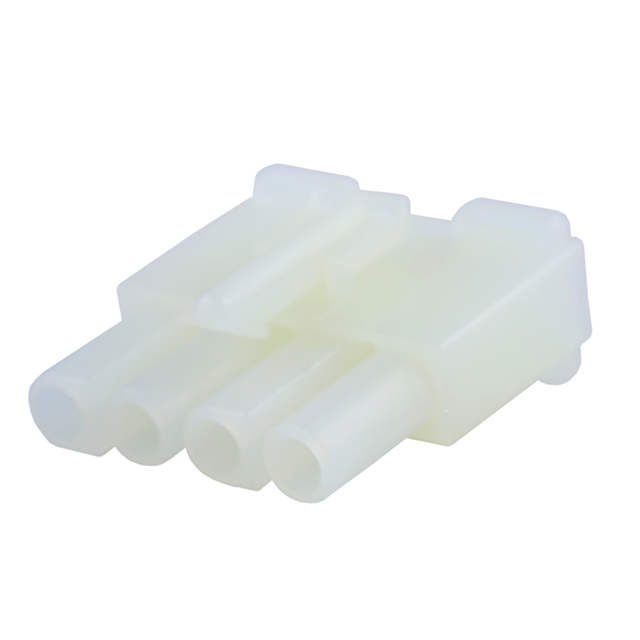

Molex 0039036044	Contacts Not Included	6.7 mm	0.264 in	Crimp	Nylon Polyamide (PA)	Receptacle	Free Hanging (In-Line)	-40 C	105 ░C	1	Natural	Male or Female	Latch Lock	4
Molex 0039036032	Contacts Not Included	6.7 mm	0.264 in	Crimp	Nylon Polyamide (PA)	Plug	Free Hanging (In-Line)	-40 C	105 ░C	1	Natural	Male or Female	Locking Ramp

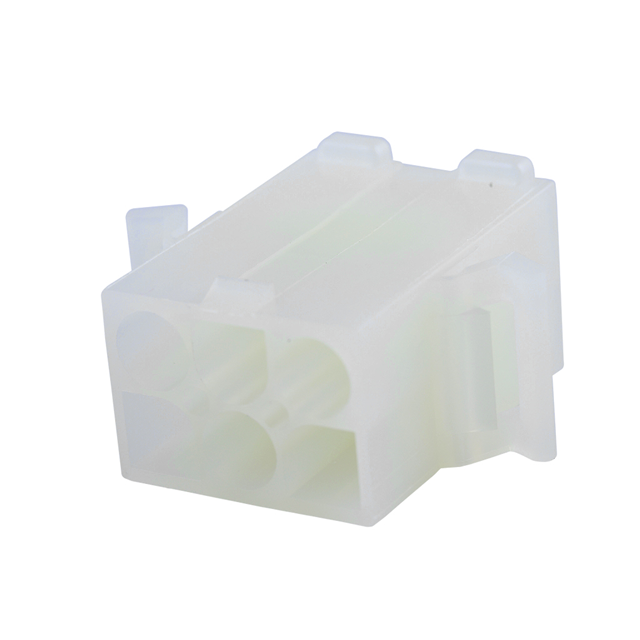

Molex 0039036060	Contacts Not Included	6.7 mm	0.264 in	Crimp	Nylon Polyamide (PA)	Plug	Panel Mount Snap-In	-40 C	105 ░C		Natural	Male or Female	Locking Ramp	6			2
Molex 0039039162	Contacts Not Included	4.2 mm	0.165 in	Crimp	Nylon 6/6 Polyamide (PA66)	Receptacle	Free Hanging (In-Line)				Black	Female Socket	Latch Lock	16	0.165 in	4.2 mm	2

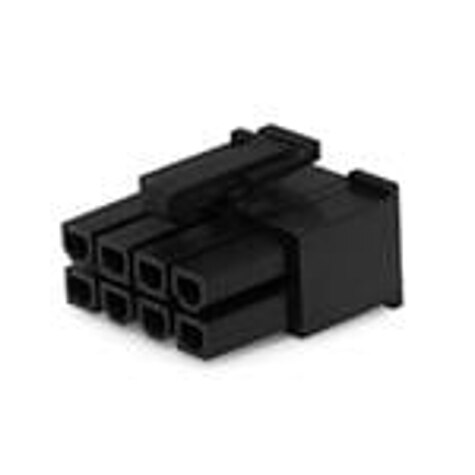

Molex 0039039142	Contacts Not Included	4.2 mm	0.165 in	Crimp	Nylon 6/6 Polyamide (PA66)	Receptacle	Free Hanging (In-Line)				Black	Female Socket	Latch Lock	14	0.165 in	4.2 mm	2

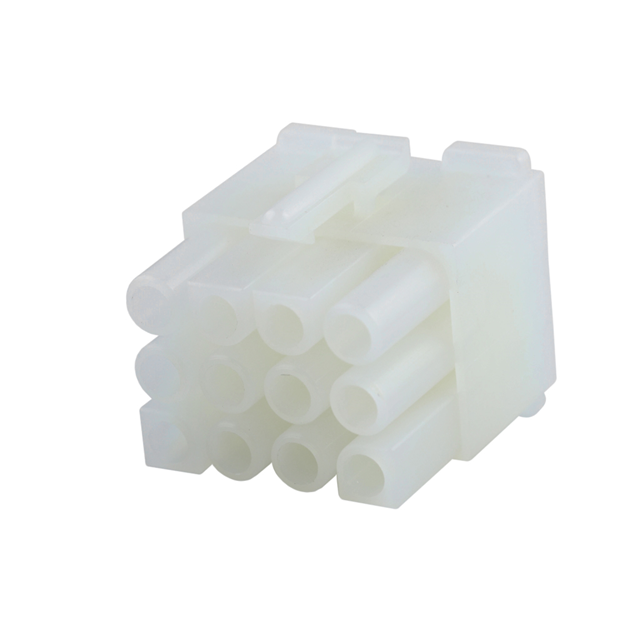

Molex 0039036124	Contacts Not Included	6.7 mm	0.264 in	Crimp	Nylon Polyamide (PA)	Receptacle	Free Hanging (In-Line)	-40 C	105 ░C		Natural	Male or Female	Latch Lock	12			3
Molex 0039036045				Crimp		Receptacle	Free Hanging (In-Line)	-40 C	105 ░C	1		Male or Female	Latch Lock	4				Sealed
