OSTTS23 Series

Catalog

TERM BLOCK PLUG 23POS 3.5MM

Part	Torque - Screw	Torque - Screw	Wire Strip Length [Max]	Wire Strip Length [Min]	Housing Material	Material Flammability Rating	Contact Material	Wire Gauge or Range - mm²	Color	Positions Per Level	Type	Pitch	Pitch	Number of Positions	Number of Levels	Mounting Type	Termination Style	Voltage - UL	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Contact Mating Finish	Wire Gauge or Range - mm˛

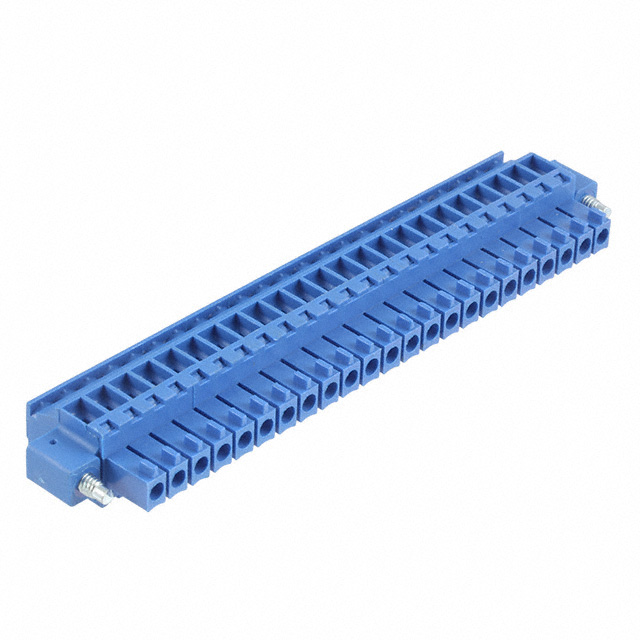

On Shore Technology Inc. OSTTS23116C	1.7 Lb-In	0.2 Nm	7 mm	6 mm	Brass	UL94 V-0	Brass	1.5 mm²	Blue	23	Plug Female Sockets	3.5 mm	0.138 "	23	1	Free Hanging (In-Line)	Screw	300 V	115 °C	-40 C	28 AWG	16 AWG
On Shore Technology Inc. OSTTS23515B	3.5 Lb-In	0.4 Nm	7 mm	6 mm	Brass	UL94 V-0	Brass		Green	23	Plug Female Sockets	5.08 mm	0.2 in	23	1	Free Hanging (In-Line)	Screw	300 V	105 ░C	-30 ░C	24 AWG	12 AWG	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS23315B	1.7 Lb-In	0.2 Nm	7 mm	6 mm	Brass		Brass	1.5 mm²	Green	23	Plug Female Sockets	3.81 mm	0.15 in	23	1	Free Hanging (In-Line)	Screw	300 V	115 °C	-40 C	28 AWG	16 AWG			Nickel
On Shore Technology Inc. OSTTS23115B	1.7 Lb-In	0.2 Nm	7 mm	6 mm	Thermoplastic		Phosphor Bronze	1.5 mm²	Green	23	Plug Female Sockets	3.5 mm	0.138 "	23	1	Free Hanging (In-Line)	Screw	300 V	115 °C	-40 C	28 AWG	16 AWG			Tin
On Shore Technology Inc. OSTTS23115D	1.7 Lb-In	0.2 Nm	7 mm	6 mm	Brass	UL94 V-0	Brass	1.5 mm²	Green	23	Plug Female Sockets	3.5 mm	0.138 "	23	1	Free Hanging (In-Line)	Screw	300 V	115 °C	-40 C	28 AWG	16 AWG				1.5 mm˛
On Shore Technology Inc. OSTTS23A15B	3.5 Lb-In	0.4 Nm	7 mm	6 mm	Brass	UL94 V-0	Brass			23	Plug Female Sockets	7.5 mm	0.295 in	23	1	Free Hanging (In-Line)	Screw	300 V	105 ░C	-30 ░C	24 AWG	12 AWG
On Shore Technology Inc. OSTTS23A15D	3.5 Lb-In	0.4 Nm	7 mm	6 mm	Brass	UL94 V-0	Brass			23	Plug Female Sockets	7.5 mm	0.295 in	23	1	Free Hanging (In-Line)	Screw	300 V	105 ░C	-30 ░C	24 AWG	12 AWG
On Shore Technology Inc. OSTTS23115A	1.7 Lb-In	0.2 Nm	7 mm	6 mm	Brass		Brass	1.5 mm²	Green	23	Plug Female Sockets	3.5 mm	0.138 "	23	1	Free Hanging (In-Line)	Screw	300 V	105 ░C	-30 ░C	28 AWG	16 AWG				1.5 mm˛
On Shore Technology Inc. OSTTS23115C	1.7 Lb-In	0.2 Nm	7 mm	6 mm	Brass	UL94 V-0	Brass	1.5 mm²	Green	23	Plug Female Sockets	3.5 mm	0.138 "	23	1	Free Hanging (In-Line)	Screw	300 V	115 °C	-40 C	28 AWG	16 AWG
On Shore Technology Inc. OSTTS23715B	3.5 Lb-In	0.4 Nm	7 mm	6 mm	Brass	UL94 V-0	Brass		Green	23	Plug Female Sockets	5 mm	0.197 in	23	1	Free Hanging (In-Line)	Screw	300 V	105 ░C	-30 ░C	24 AWG	12 AWG	0.34 mm²	2.5 mm²
