TB2-2G Series
Manufacturer: Switch Components
Beta
⌘K

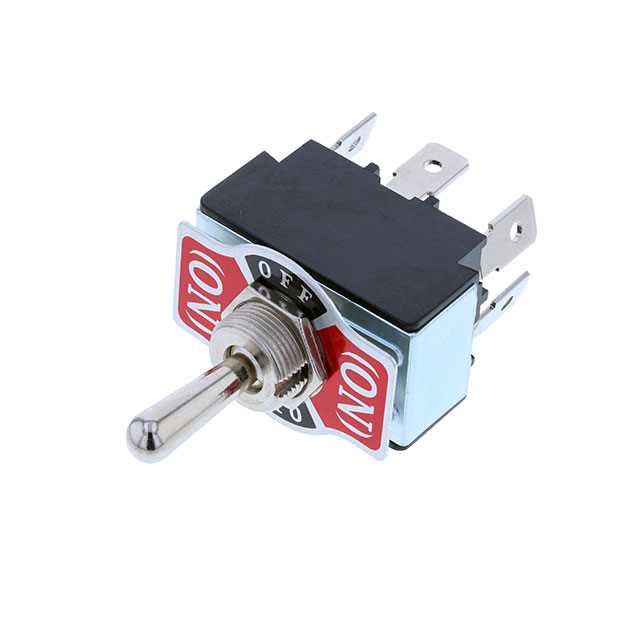

SWITCH TOGGLE DPDT 20A 12V
| Part | Electrical Life (Cycles) | Voltage Rating - DC | Operating Temperature (Min) | Operating Temperature (Max) | Circuit | Illumination | Current Rating | Actuator Length | Panel Cutout Diameter | Panel Cutout Shape | Bushing Thread Pitch | Bushing Thread | Bushing Thread Diameter | Switch Function | Mounting Type | Actuator Type | Quick Connect Size (0.250") | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 6000 Cycles | 12 V | 0 °C | 55 °C | DPDT | Non-Illuminated | 20 A | 18.4 mm | 12.2 mm | Circular | 0.75 mm | M12 x 0.75 | 12 mm | Mom-Off-Mom | Panel Mount | Standard Round | 0.25 in | Quick Connect |
