CH1LBS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K

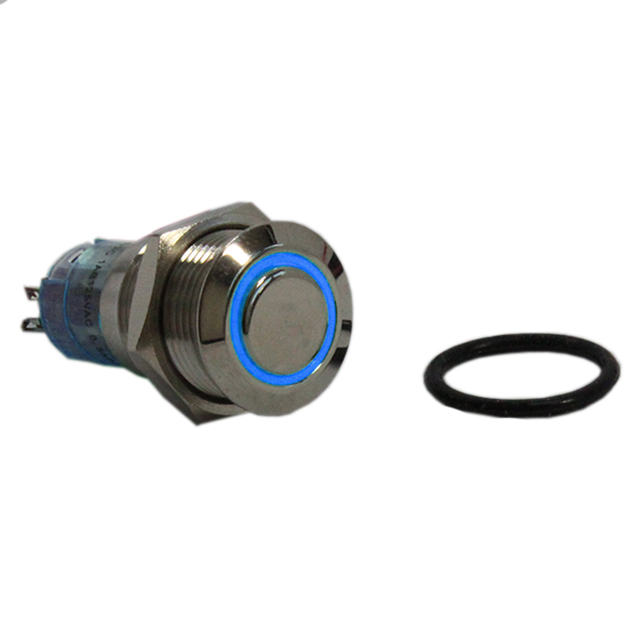

SWITCH PB SPDT 1A 125V
| Part | Electrical Life | Termination Style | Mounting Type | Switch Function | Ingress Protection | Features | Color - Actuator/Cap | Circuit | Voltage Rating - AC | Type | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Marking | Voltage Rating - DC | Actuator Type | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 30000 Cycles | Solder Lug | Panel Mount Front | On-On | IP67 - Dust Tight Waterproof | Stainless Steel | Silver | SPDT | 125 V | Anti-Vandal Illuminated | -25 °C | 70 °C | No Marking | 24 V | Button Flush Round | 16 mm | 1 A | Blue LED |
