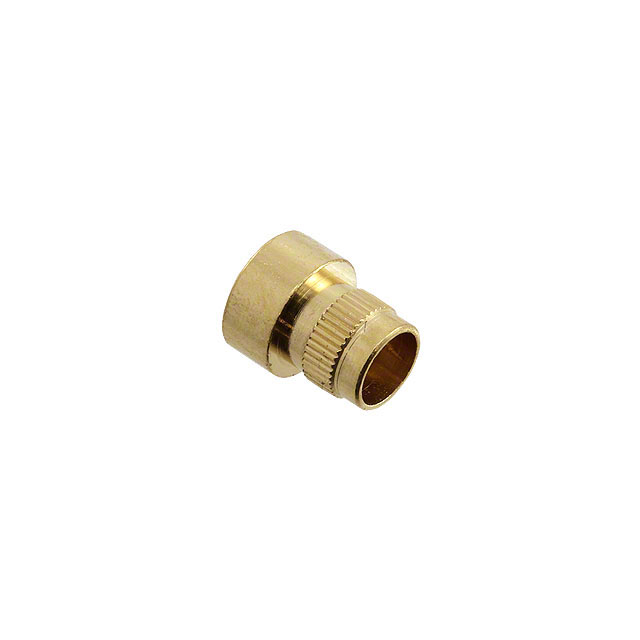

8016-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Socket Depth [z] | Socket Depth [z] | Tail Type | Contact Material | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.25 Ám | 10 Áin | 3.33 mm | 0.131 in | 5.33 mm | 0.21 in | 2.08 mm | 0.082 " | 0.065 " | 1.65 mm | 0.21 in | 5.33 mm | No Tail | Beryllium Copper | 2.72 mm | 0.107 in | Knurled Press-Fit |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.25 Ám | 10 Áin | 3.33 mm | 0.131 in | 5.33 mm | 0.21 in | 2.08 mm | 0.082 " | 0.065 " | 1.65 mm | 0.21 in | 5.33 mm | No Tail | Beryllium Copper | 2.72 mm | 0.107 in | Knurled Press-Fit |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.76 Ám | 30 Áin | 3.33 mm | 0.131 in | 5.33 mm | 0.21 in | 2.08 mm | 0.082 " | 0.065 " | 1.65 mm | 0.21 in | 5.33 mm | No Tail | Beryllium Copper | 2.72 mm | 0.107 in | Knurled Press-Fit |
