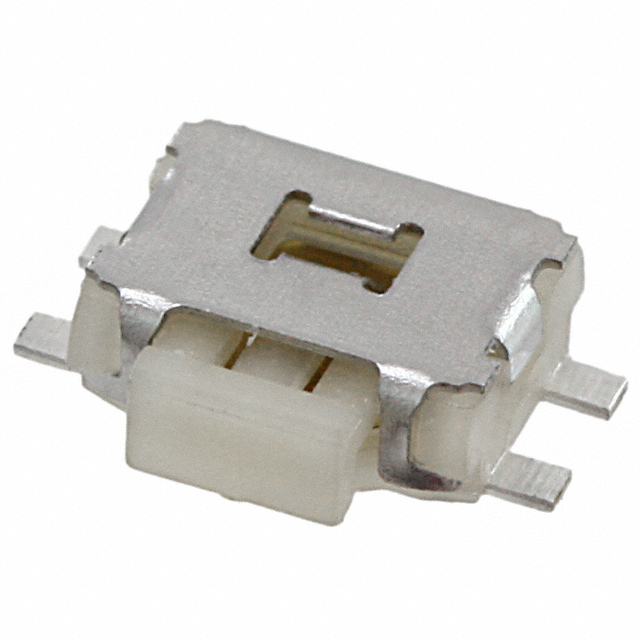

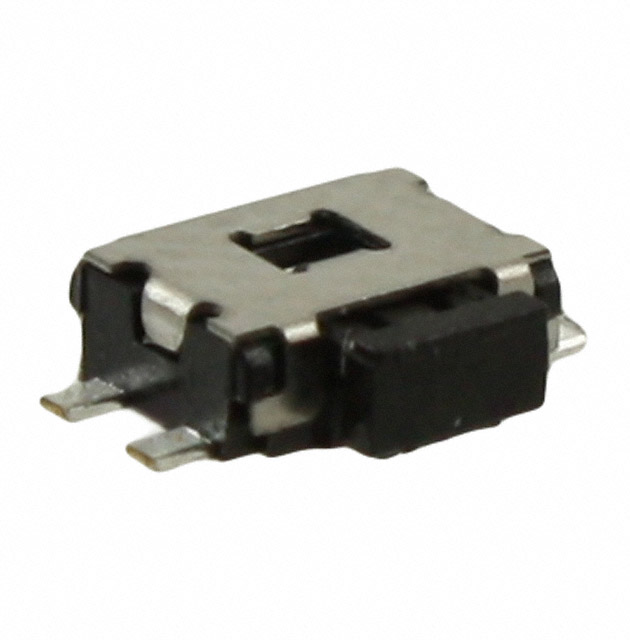

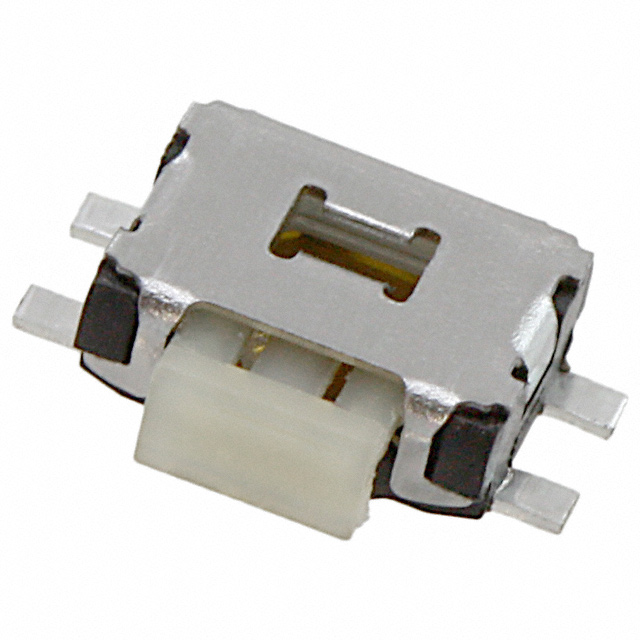

TL1014 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life | Actuator Material | Termination Style | Actuator Type | Contact Rating @ Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Mounting Type | Features | Operating Force | Illumination | Switch Function | Outline [y] | Outline [x] | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.3 mm | 100000 Cycles | Polyamide (PA46) Nylon 4/6 | Gull Wing | Rectangular Button | 0.05 A 12 VDC | -20 ░C | 70 °C | SPST-NO | Right Angle Surface Mount | Board Guide | 180 gf | Non-Illuminated | Off-Mom | 3.5 mm | 6.4 mm | Side Actuated |
E-Switch | 0.3 mm | 100000 Cycles | Polyamide (PA46) Nylon 4/6 | Gull Wing | Rectangular Button | 0.05 A 12 VDC | -20 ░C | 70 °C | SPST-NO | Right Angle Surface Mount | 180 gf | Non-Illuminated | Off-Mom | 3.5 mm | 6.4 mm | Side Actuated | |
 E-Switch | 0.3 mm | 100000 Cycles | Polyamide (PA46) Nylon 4/6 | Gull Wing | Rectangular Button | 0.05 A 12 VDC | -20 ░C | 70 °C | SPST-NO | Right Angle Surface Mount | 160 gf | Non-Illuminated | Off-Mom | 3.5 mm | 6.4 mm | Side Actuated | |
 E-Switch | 0.25 mm | 200000 Cycles | Gull Wing | Rectangular Button | 0.05 A 12 VDC | -40 C | 85 °C | SPST-NO | Right Angle Surface Mount | 160 gf | Non-Illuminated | Off-Mom | 3.5 mm | 6.4 mm | Side Actuated | ||
 E-Switch | 0.3 mm | 100000 Cycles | Polyamide (PA46) Nylon 4/6 | Gull Wing | Rectangular Button | 0.05 A 12 VDC | -20 ░C | 70 °C | SPST-NO | Right Angle Surface Mount | Board Guide | 160 gf | Non-Illuminated | Off-Mom | 3.5 mm | 6.4 mm | Side Actuated |
