CFS-0603 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Body Material	Electrical Life	Length	Length [x]	Number of Positions	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Actuator Level	Circuit	Termination Style	Current Rating (Amps)	Voltage Rating	Actuator Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Mounting Type
Nidec Components Corporation CFS-0603MB	Polyphenylene Sulfide (PPS)	1000 Cycles	16.7 mm	0.657 "	6	2.54 mm	0.1 "	85 °C	-40 C	Copper Alloy	Raised	SPST	Gull Wing	100 mA	6 V	Slide (Standard)	4.7 mm	0.185 in	Gold	Surface Mount
Nidec Components Corporation CFS-0603MC	Polyphenylene Sulfide (PPS)	1000 Cycles	16.7 mm	0.657 "	6	2.54 mm	0.1 "	85 °C	-40 C	Copper Alloy	Raised	SPST	PC Pin	100 mA	6 V	Slide (Standard)	5.5 mm	0.217 in	Gold	Through Hole

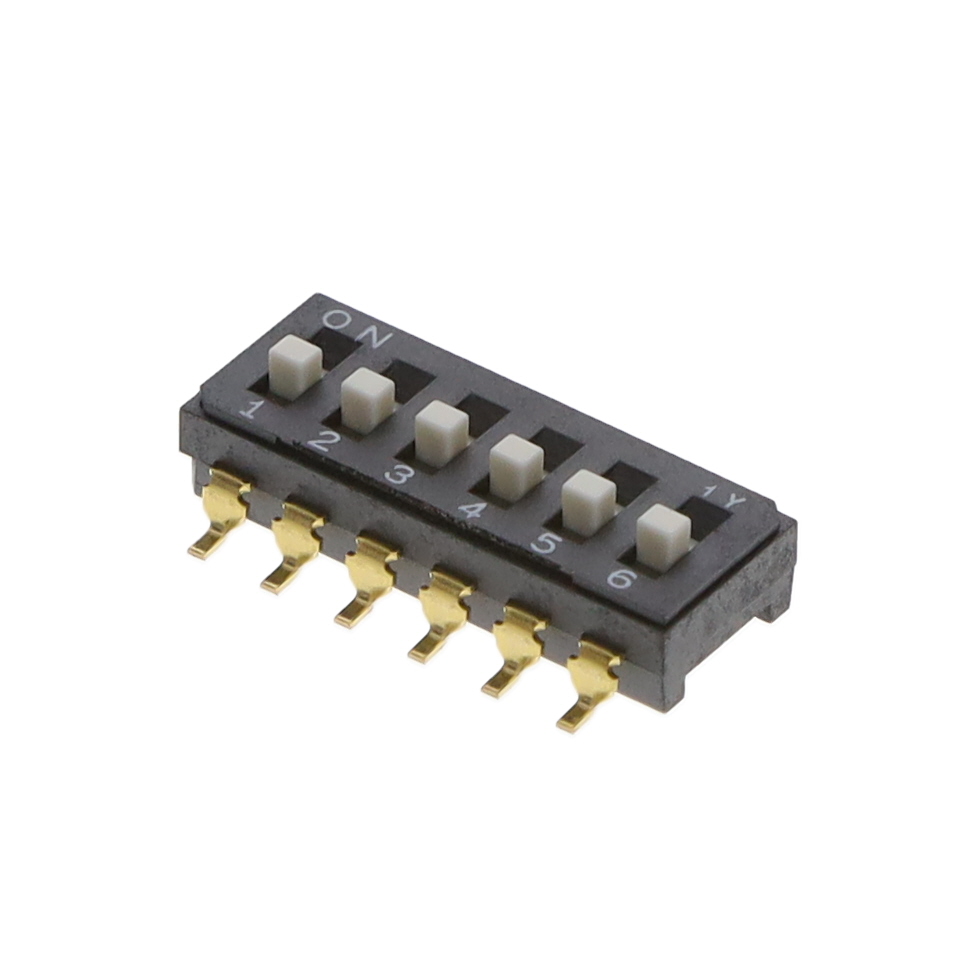

Nidec Components Corporation CFS-0603TB	Polyphenylene Sulfide (PPS)	1000 Cycles	16.7 mm	0.657 "	6	2.54 mm	0.1 "	85 °C	-40 C	Copper Alloy	Raised	SPST	Gull Wing	100 mA	6 V	Slide (Standard)	4.7 mm	0.185 in	Gold	Surface Mount
