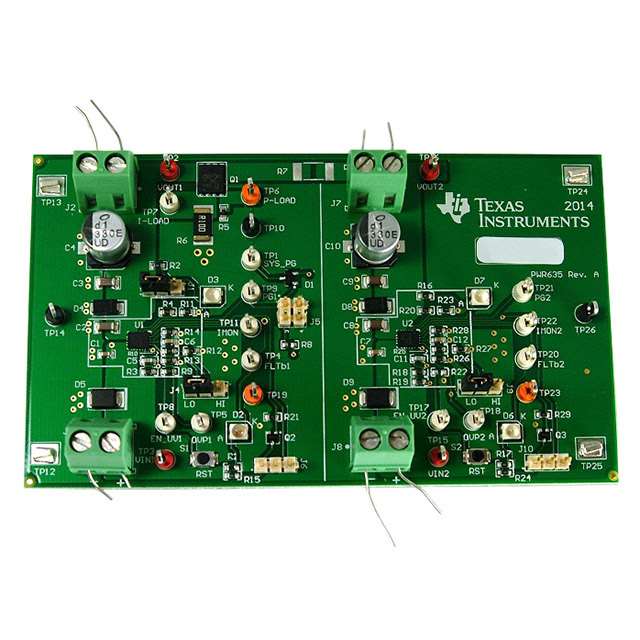

TPS25940-Q1 Series
2.7-V to 18-V, 42mΩ, 0.6-5.3A automotive eFuse with current monitor and short to battery protection
Manufacturer: Texas Instruments
Catalog
2.7-V to 18-V, 42mΩ, 0.6-5.3A automotive eFuse with current monitor and short to battery protection
Key Features
• Qualified for automotive applicationsAEC-Q100 qualified with the following results:Device temperature grade 1: –40°C to +125°C ambient operating temperature rangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C52.7-V to 18-V operating voltage, 20 V (maximum)Total RON: 42 mΩ (typical)0.6-A to 5.3-A adjustable current limit (±8%)IMON Current indicator output±8% accuracy for TPS25940-Q1/TPS25940L-Q1Adjustable under-, overvoltage threshold (±2%)Reverse current blocking1-µs reverse voltage shutoffProgrammable dVo/dt controlPower good and fault outputsShort-to-battery protectionShort-to-ground protectionTPS25940-Q1/TPS259401A-Q1: auto-retryTPS25940L-Q1: latch-offQualified for automotive applicationsAEC-Q100 qualified with the following results:Device temperature grade 1: –40°C to +125°C ambient operating temperature rangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C52.7-V to 18-V operating voltage, 20 V (maximum)Total RON: 42 mΩ (typical)0.6-A to 5.3-A adjustable current limit (±8%)IMON Current indicator output±8% accuracy for TPS25940-Q1/TPS25940L-Q1Adjustable under-, overvoltage threshold (±2%)Reverse current blocking1-µs reverse voltage shutoffProgrammable dVo/dt controlPower good and fault outputsShort-to-battery protectionShort-to-ground protectionTPS25940-Q1/TPS259401A-Q1: auto-retryTPS25940L-Q1: latch-off
Description
AI
The TPS25940xx-Q1 eFuse Power Switches are compact, feature rich power management devices with a full suite of protection functions. The wide operating range allows control of many popular DC bus voltages. Integrated back-to-back FETs provide bidirectional current control making the device well suited for systems with load side holdup energy that must not drain back to a failed supply bus.
Load, source and device protection are provided with many programmable features including overcurrent, dVo/dt ramp and overvoltage, undervoltage thresholds. For system status monitoring and downstream load control, the device provides PGOOD,FLTand precise current monitor output. Precise programmable undervoltage, overvoltage thresholds and mode simplify power management design.
The TPS25940xx-Q1 monitor V(IN)and V(OUT)to provide true reverse current blocking when V(IN)< (V(OUT)– 66 mV). This function supports supply bus protection from over-voltages during output short to battery faults.
The TPS25940xx-Q1 eFuse Power Switches are compact, feature rich power management devices with a full suite of protection functions. The wide operating range allows control of many popular DC bus voltages. Integrated back-to-back FETs provide bidirectional current control making the device well suited for systems with load side holdup energy that must not drain back to a failed supply bus.
Load, source and device protection are provided with many programmable features including overcurrent, dVo/dt ramp and overvoltage, undervoltage thresholds. For system status monitoring and downstream load control, the device provides PGOOD,FLTand precise current monitor output. Precise programmable undervoltage, overvoltage thresholds and mode simplify power management design.
The TPS25940xx-Q1 monitor V(IN)and V(OUT)to provide true reverse current blocking when V(IN)< (V(OUT)– 66 mV). This function supports supply bus protection from over-voltages during output short to battery faults.
