LB25WGG01 Series
Manufacturer: NKK Switches
Beta
⌘K
STANDARD SIZE PANEL SEAL PUSHBUTTON
| Part | Electrical Life | Mechanical Life | Voltage Rating - AC | Termination Style | Actuator Type | Ingress Protection | Actuator Marking | Color - Actuator/Cap | Current Rating (Amps) | Switch Function | Circuit | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Mounting Type | Type | Operating Temperature [Min] | Operating Temperature [Max] | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 1000000 Cycles | 28 V | Solder Quick Connect - 0.110" (2.8mm) | Button Round | IP65 - Dust Tight Water Resistant | No Marking | Clear | 0.4 VA | On-Mom | DPDT | 22 mm | 28 V | Panel Mount Front | Standard | -25 °C | 70 °C | ||

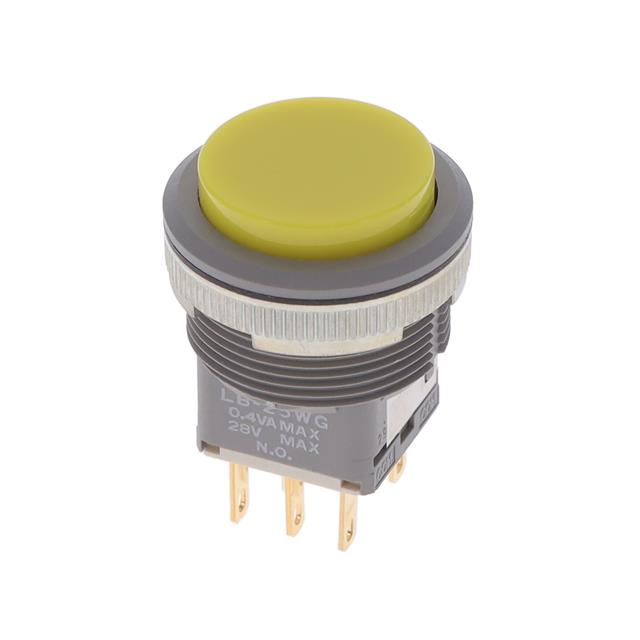

 NKK Switches | 100000 Cycles | 1000000 Cycles | 28 V | Solder Quick Connect - 0.110" (2.8mm) | Button Round | IP65 - Dust Tight Water Resistant | No Marking | Yellow | 0.4 VA | On-Mom | DPDT | 22 mm | 28 V | Panel Mount Front | Standard | -25 °C | 70 °C | ||
 NKK Switches | 100000 Cycles | 1000000 Cycles | 28 V | Solder Quick Connect - 0.110" (2.8mm) | Button Round | IP65 - Dust Tight Water Resistant | No Marking | Clear | 0.4 VA | On-Mom | DPDT | 22 mm | 28 V | Panel Mount Front | Illuminated Standard | -25 °C | 50 °C | LED Red | 12 VDC |
