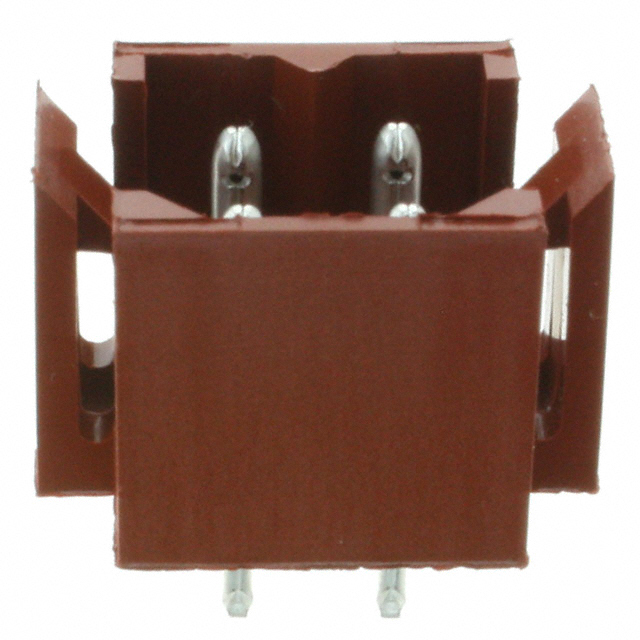

207119 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 5 MM, 2 ROWS, 4 CONTACTS, THROUGH HOLE STRAIGHT

Part	Material Flammability Rating	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Color	Shrouding	Voltage Rating	Fastening Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish - Post	Features	Number of Positions	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Type	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Insulation Height	Insulation Height	Contact Shape	Contact Finish - Mating
TE Connectivity Raychem Cable Protection 207119-8	UL94 V-0	7.5 A	0.181 in	4.6 mm	Brass	All	0.196 in	4.98 mm	Through Hole	Black Red	Shrouded - 4 Wall	600 V	Latch Lock	Board to Board Cable	130 °C	-55 °C	Header	Tin	Mounting Flange	4	2	0.196 in	4.98 mm	Solder	Male Pin	Automotive General Purpose Industrial	150 Áin	3.81 Ám	150 Áin	3.81 Ám	Nylon Polyamide (PA)	0.464 in	11.79 mm	Circular
TE Connectivity Raychem Cable Protection 207119-9	UL94 V-0	7.5 A	0.181 in	4.6 mm	Brass	All	0.196 in	4.98 mm	Through Hole	Black Red	Shrouded - 4 Wall	600 V	Latch Lock	Board to Board Cable	130 °C	-55 °C	Header	Tin		4	2	0.196 in	4.98 mm	Solder	Male Pin	Automotive General Purpose Industrial	150 Áin	3.81 Ám	150 Áin	3.81 Ám	Nylon Polyamide (PA)	0.464 in	11.79 mm	Circular
TE Connectivity Raychem Cable Protection 207119-2	UL94 V-0	7.5 A	0.181 in	4.6 mm	Brass	All	0.196 in	4.98 mm	Through Hole	Black Red	Shrouded - 4 Wall	600 V	Latch Lock	Board to Board Cable	130 °C	-55 °C	Header	Tin		4	2	0.196 in	4.98 mm	Solder	Male Pin	Automotive General Purpose Industrial	150 Áin	3.81 Ám	150 Áin	3.81 Ám	Nylon Polyamide (PA)	0.464 in	11.79 mm	Circular
TE Connectivity Raychem Cable Protection 207119-4	UL94 V-0	7.5 A	0.181 in	4.6 mm	Brass	All	0.196 in	4.98 mm	Through Hole	Black Red	Shrouded - 4 Wall	600 V	Latch Lock	Board to Board Cable	130 °C	-55 °C	Header	Tin		4	2	0.196 in	4.98 mm	Solder	Male Pin	Automotive General Purpose Industrial	30 Áin	0.76 Ám	150 Áin	3.81 Ám	Nylon Polyamide (PA)	0.464 in	11.79 mm	Circular	Gold
TE Connectivity Raychem Cable Protection 1-207119-1	UL94 V-0	7.5 A	0.181 in	4.6 mm	Brass	All	0.196 in	4.98 mm	Through Hole	Black Red	Shrouded - 4 Wall	600 V	Latch Lock	Board to Board Cable	130 °C	-55 °C	Header	Tin		4	2	0.196 in	4.98 mm	Solder	Male Pin	Automotive General Purpose Industrial	30 Áin	0.76 Ám	150 Áin	3.81 Ám	Nylon Polyamide (PA)	0.464 in	11.79 mm	Circular	Gold
