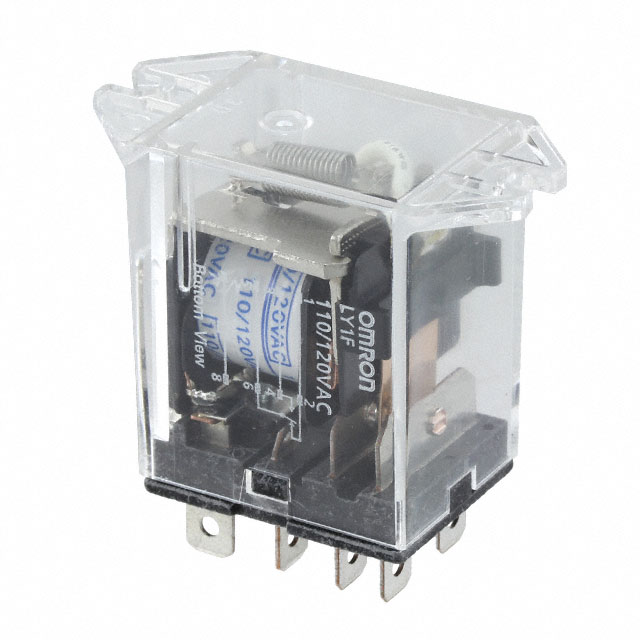

LY1F-DC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 15A 48V
| Part | Coil Type | Coil Voltage | Switching Voltage | Contact Material | Contact Form | Coil Resistance | Release Time | Operate Time | Approval Agency | Load - Max Switching | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Must Release Voltage | Mounting Type | Termination Style | Relay Type | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Non Latching | 48 VDC | 125 VDC 250 VAC | Silver Alloy | SPDT (1 Form C) | 2.6 kOhms | 25 ms | 25 ms | CE CSA TUV UR | 1875 W 3750 VA | 38.4 VDC | 55 °C | -25 °C | 15 A | 4.8 VDC | Chassis Mount | Plug In | General Purpose | 18.5 mA |
Omron Electronics Inc-EMC Div | Non Latching | 110 VDC | 125 VDC 250 VAC | Silver Alloy | SPDT (1 Form C) | 11000 Ohms | 25 ms | 25 ms | CE CSA TUV UR | 1875 W 3750 VA | 88 VDC | 55 °C | -25 °C | 15 A | 11 VDC | Chassis Mount | Plug In | General Purpose | 10 mA |
 Omron Electronics Inc-EMC Div | Non Latching | 24 VDC | 125 VDC 250 VAC | Silver Alloy | SPDT (1 Form C) | 650 Ohms | 25 ms | 25 ms | CE CSA TUV UR | 1875 W 3750 VA | 19.2 VDC | 55 °C | -25 °C | 15 A | 2.4 VDC | Chassis Mount | Plug In | General Purpose | 36.9 mA |
