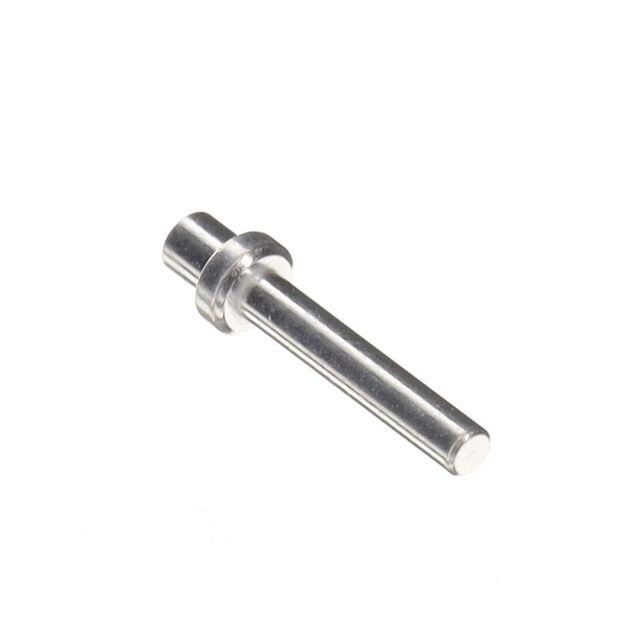

3138-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Board Thickness | Board Thickness | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Termination | Contact Material | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Style | Contact Finish Thickness | Contact Finish Thickness | Insulation | Mounting Hole Diameter | Mounting Hole Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Tin | 0.094 " | 2.39 mm | 9.55 mm | 0.376 in | PC Pin | 1.6 mm | 0.063 " | 0.79 mm | 0.031 in | Through Hole | 1.27 mm | 0.05 in | Swage | Brass Alloy | 7.16 mm | 0.282 in | Single End | 200 Áin | 5.08 Ám | Non-Insulated | 0.064 " | 1.63 mm |
 Mill-Max Manufacturing Corp. | Gold | 0.094 " | 2.39 mm | 9.55 mm | 0.376 in | PC Pin | 1.6 mm | 0.063 " | 0.79 mm | 0.031 in | Through Hole | 1.27 mm | 0.05 in | Swage | Brass Alloy | 7.16 mm | 0.282 in | Single End | 10 Áin | 0.25 Ám | Non-Insulated | 0.064 " | 1.63 mm |
Mill-Max Manufacturing Corp. | Gold | 0.094 " | 2.39 mm | 9.55 mm | 0.376 in | PC Pin | 1.6 mm | 0.063 " | 0.79 mm | 0.031 in | Through Hole | 1.27 mm | 0.05 in | Swage | Brass Alloy | 7.16 mm | 0.282 in | Single End | 20 µin | 0.51 µm | Non-Insulated | 0.064 " | 1.63 mm |
Mill-Max Manufacturing Corp. | Tin-Lead | 0.094 " | 2.39 mm | 9.55 mm | 0.376 in | PC Pin | 1.6 mm | 0.063 " | 0.79 mm | 0.031 in | Through Hole | 1.27 mm | 0.05 in | Swage | Brass Alloy | 7.16 mm | 0.282 in | Single End | 200 Áin | 5.08 Ám | Non-Insulated | 0.064 " | 1.63 mm |
