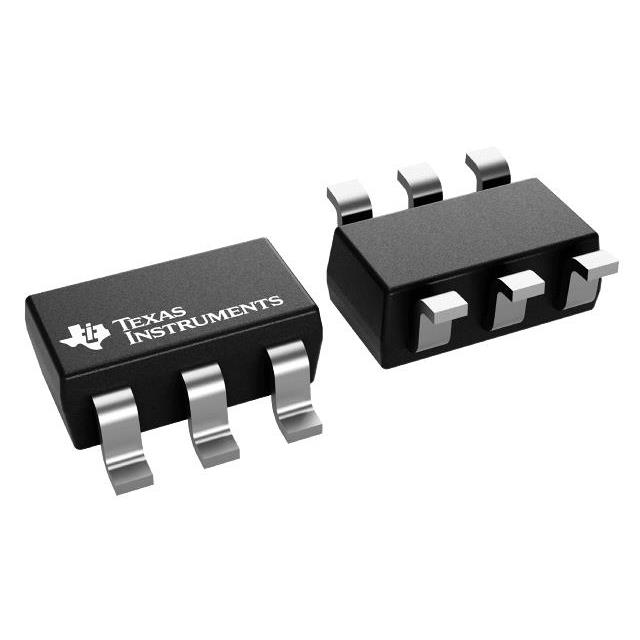

TPS3808E-Q1 Series

Automotive, 600nA ultra-low quiescent current supervisor with programmable delay and manual reset

Catalog

Automotive, 600nA ultra-low quiescent current supervisor with programmable delay and manual reset

Part	Supplier Device Package	Voltage - Threshold	Mounting Type	Grade	Output	Package / Case	Reset Timeout [Min]	Number of Voltages Monitored	Operating Temperature [Min]	Operating Temperature [Max]	Type	Reset	Qualification
Texas Instruments TPS3808EG18DBVRQ1	SOT-23-6	1.67 V	Surface Mount	Automotive	Open Drain or Open Collector	SOT-23-6	180 ms	1	-40 °C	125 ¯C	Simple Reset/Power-On Reset	Active Low	AEC-Q100
Texas Instruments TPS3808EG12DBVRQ1	SOT-23-6	1.12 V	Surface Mount	Automotive	Open Drain or Open Collector	SOT-23-6	180 ms	1	-40 °C	125 ¯C	Simple Reset/Power-On Reset	Active Low	AEC-Q100
Texas Instruments TPS3808EG19DBVRQ1	SOT-23-6	1.77 V	Surface Mount	Automotive	Open Drain or Open Collector	SOT-23-6	180 ms	1	-40 °C	125 ¯C	Simple Reset/Power-On Reset	Active Low	AEC-Q100
Texas Instruments TPS3808EG125DBVRQ1	SOT-23-6	1.16 V	Surface Mount	Automotive	Open Drain or Open Collector	SOT-23-6	180 ms	1	-40 °C	125 ¯C	Simple Reset/Power-On Reset	Active Low	AEC-Q100
Texas Instruments TPS3808EG01DBVRQ1	SOT-23-6	0.405 V	Surface Mount	Automotive	Open Drain or Open Collector	SOT-23-6	180 ms	1	-40 °C	125 ¯C	Simple Reset/Power-On Reset	Active Low	AEC-Q100
Texas Instruments TPS3808EG15DBVRQ1	SOT-23-6	1.4 V	Surface Mount	Automotive	Open Drain or Open Collector	SOT-23-6	180 ms	1	-40 °C	125 ¯C	Simple Reset/Power-On Reset	Active Low	AEC-Q100

Catalog

Automotive, 600nA ultra-low quiescent current supervisor with programmable delay and manual reset

Key Features

• AEC-Q100 qualified with the following results:Device temperature grade 1: –40°C to +125°CUndervoltage monitoring for power railsReliable monitoring with high threshold accuracy (1% typical)Fixed voltage threshold options from 0.9 V to 5 VAdjustable voltage option available (0.405 V)Separate Sense pin for monitoring and VDD pin for powerMiniature solution with ultra-low power consumption0.6 µA typical quiescent currentCompact 6-pin SOT23 package (2.9 mm x 1.6 mm)Highly configurable reset time delay to prevent unsafe power onAdjustable from 1.25 ms to 10 sSeparate Manual Reset Input (MR) to assert RESET output on demandAEC-Q100 qualified with the following results:Device temperature grade 1: –40°C to +125°CUndervoltage monitoring for power railsReliable monitoring with high threshold accuracy (1% typical)Fixed voltage threshold options from 0.9 V to 5 VAdjustable voltage option available (0.405 V)Separate Sense pin for monitoring and VDD pin for powerMiniature solution with ultra-low power consumption0.6 µA typical quiescent currentCompact 6-pin SOT23 package (2.9 mm x 1.6 mm)Highly configurable reset time delay to prevent unsafe power onAdjustable from 1.25 ms to 10 sSeparate Manual Reset Input (MR) to assert RESET output on demand

Description

The TPS3808E-Q1 family of microprocessor supervisory circuits monitors system voltages from 0.4 V to 5 V, asserting an open-drain RESET signal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. The RESET output remains low for the user-adjustable delay time after the SENSE voltage and manual reset (MR) return above the respective thresholds. The TPS3808E-Q1 device uses a precision reference to achieve 0.5% threshold accuracy. The reset delay time can be set to 20 ms by disconnecting the CT pin, 300 ms by connecting the CT pin to VDD using a resistor, or can be user-adjusted between 1.25 ms and 10 s by connecting the CT pin to an external capacitor. The TPS3808E device has a very low typical quiescent current of 0.6 µA, and is designed for battery-powered applications. The TPS3808E-Q1 is available in the SOT-23-6 , and is fully specified over a temperature range of –40°C to 125°C (TJ). The TPS3808E-Q1 family of microprocessor supervisory circuits monitors system voltages from 0.4 V to 5 V, asserting an open-drain RESET signal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. The RESET output remains low for the user-adjustable delay time after the SENSE voltage and manual reset (MR) return above the respective thresholds. The TPS3808E-Q1 device uses a precision reference to achieve 0.5% threshold accuracy. The reset delay time can be set to 20 ms by disconnecting the CT pin, 300 ms by connecting the CT pin to VDD using a resistor, or can be user-adjusted between 1.25 ms and 10 s by connecting the CT pin to an external capacitor. The TPS3808E device has a very low typical quiescent current of 0.6 µA, and is designed for battery-powered applications. The TPS3808E-Q1 is available in the SOT-23-6 , and is fully specified over a temperature range of –40°C to 125°C (TJ).
