FDSD072 Series
Manufacturer: Belden Inc.
Beta
⌘K
CBL FIBER OPTIC
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Core Diameter [diameter] | Style | Cladding Diameter [diameter] | Jacket Color | Features | Features | Type | Tensile Strength |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | ||||||||||||||
Belden Inc. | 70 °C | -40 C | Poly-Vinyl Chloride (PVC) | OFNP | 19.2 mm | 0.756 " | 9 µm | Multiple Fibers | 125 µm | Yellow | Rip Cord | 72 Fibers | Singlemode | 81.6 kg |

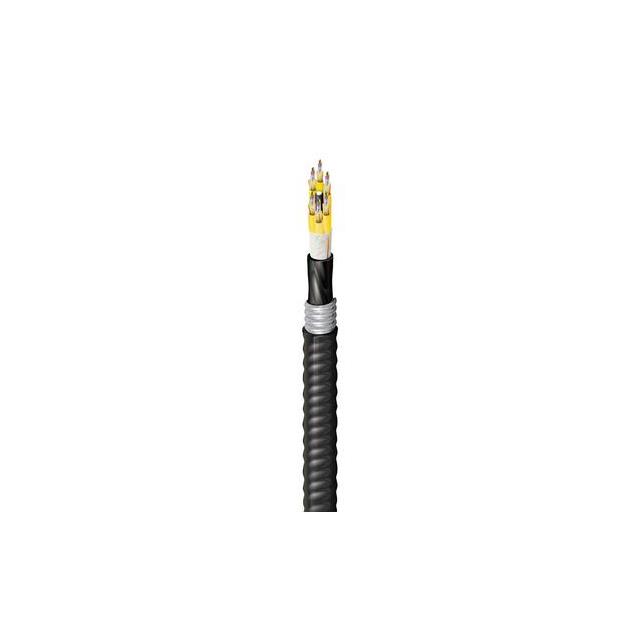

 Belden Inc. | 70 °C | -40 C | Poly-Vinyl Chloride (PVC) | OFCR | 31.14 mm | 1.226 in | 9 µm | Multiple Fibers | 125 µm | Black | 72 Fibers Armored | Singlemode | 81.6 kg | |

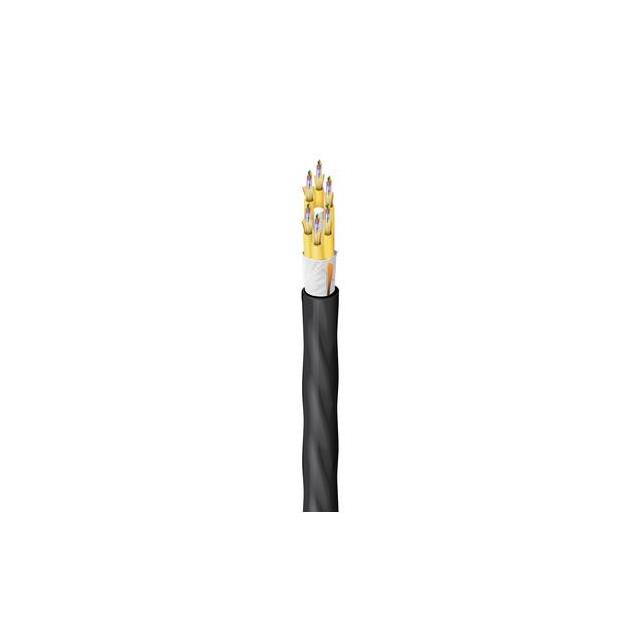

 Belden Inc. | 70 °C | -40 C | Low Smoke Zero Halogen (LSZH) | OFNR | 20.9 mm | 0.823 in | 9 µm | Multiple Fibers | 125 µm | Black | Rip Cord | 72 Fibers | Singlemode | 81.6 kg |
 Belden Inc. | 70 °C | -40 C | Poly-Vinyl Chloride (PVC) | OFCP | 28.19 mm | 1.11 in | 9 µm | Multiple Fibers | 125 µm | Black | 72 Fibers Armored | Singlemode | 81.6 kg | |
Belden Inc. | 70 °C | -40 C | Poly-Vinyl Chloride (PVC) | OFNR | 20.9 mm | 0.823 in | 9 µm | Multiple Fibers | 125 µm | Black | Rip Cord | 72 Fibers | Singlemode | 81.6 kg |
