801-83 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN SOCKET 9POS 0.1 GOLD SMD

...

Part	Contact Shape	Contact Material	Insulation Material	Connector Type	Current Rating (Amps)	Termination	Features	Mounting Type	Contact Type	Number of Positions Loaded	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Positions	Material Flammability Rating	Number of Rows	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish - Mating	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions [custom]	Contact Length - Post [custom]	Contact Length - Post [x]	Contact Length - Post [x]

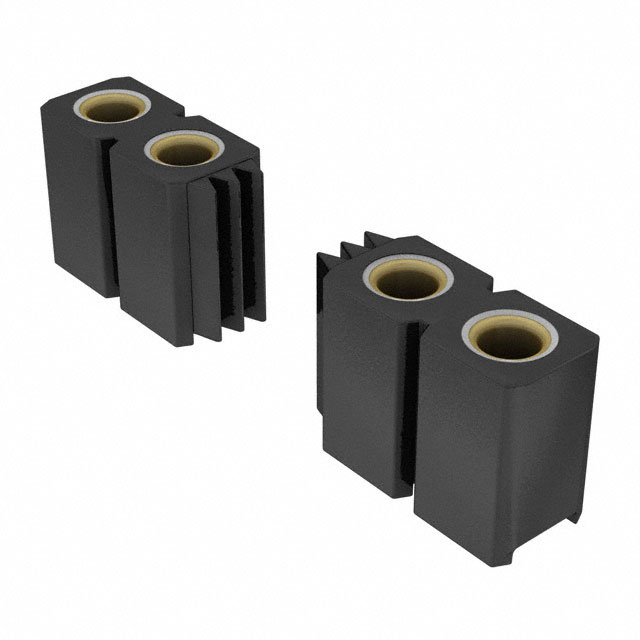

Preci-Dip 801-83-009-30-480191	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	3 A	Solder	Pick and Place	Surface Mount	Female Socket	All	0.165 in	4.2 mm	-55 C	125 °C	Tin	9	UL94 V-0	1	29.5 µin	0.75 µm	0.1 "	2.54 mm	Black	Gold	Push-Pull

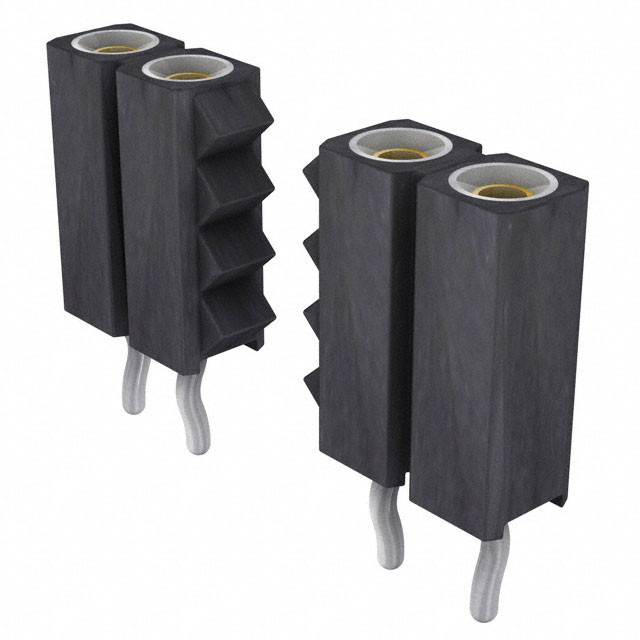

Preci-Dip 801-83-033-10-143101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	3 A	Kinked Pin Solder		Through Hole	Female Socket	All	0.276 in	7 mm	-55 C	125 °C	Tin		UL94 V-0	1	29.5 µin	0.75 µm	0.1 "	2.54 mm	Black	Gold	Push-Pull	0.118 in	3 mm	33
Preci-Dip 801-83-023-65-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	3 A	Press-Fit Solder		Through Hole	Female Socket	All	0.276 in	7 mm	-55 C	125 °C	Tin	23	UL94 V-0	1	29.5 µin	0.75 µm	0.1 "	2.54 mm	Black	Gold	Push-Pull		2.79 mm		0.11 in

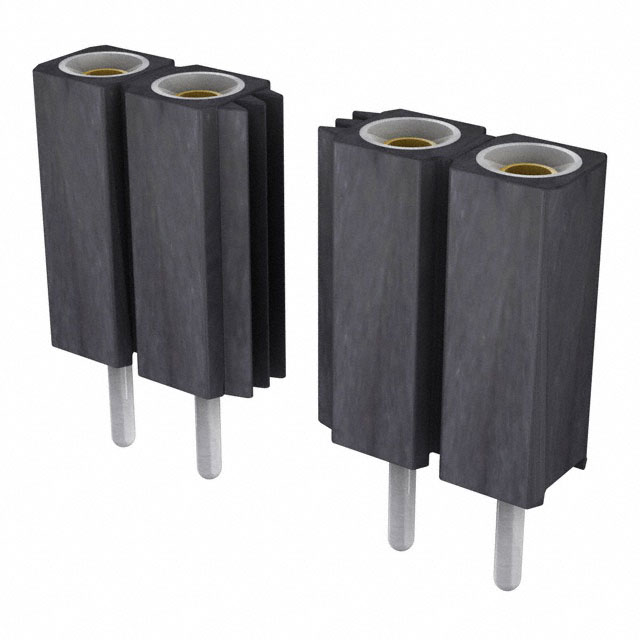

Preci-Dip 801-83-012-10-004101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	3 A	Solder		Through Hole	Female Socket	All	0.276 in	7 mm	-55 C	125 °C	Tin	12	UL94 V-0	1	29.5 µin	0.75 µm	0.1 "	2.54 mm	Black	Gold	Push-Pull					0.114 in	2.9 mm

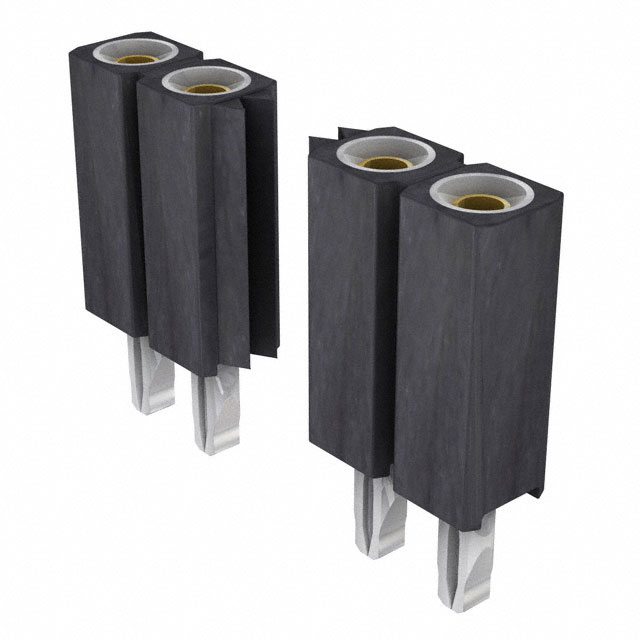

Preci-Dip 801-83-022-65-410101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	3 A	Press-Fit Solder		Through Hole	Female Socket	All	0.276 in	7 mm	-55 C	125 °C	Tin	22	UL94 V-0	1	29.5 µin	0.75 µm	0.1 "	2.54 mm	Black	Gold	Push-Pull		2.79 mm		0.11 in
Preci-Dip 801-83-043-10-004101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	3 A	Solder		Through Hole	Female Socket	All	0.276 in	7 mm	-55 C	125 °C	Tin	43	UL94 V-0	1	29.5 µin	0.75 µm	0.1 "	2.54 mm	Black	Gold	Push-Pull					0.114 in	2.9 mm

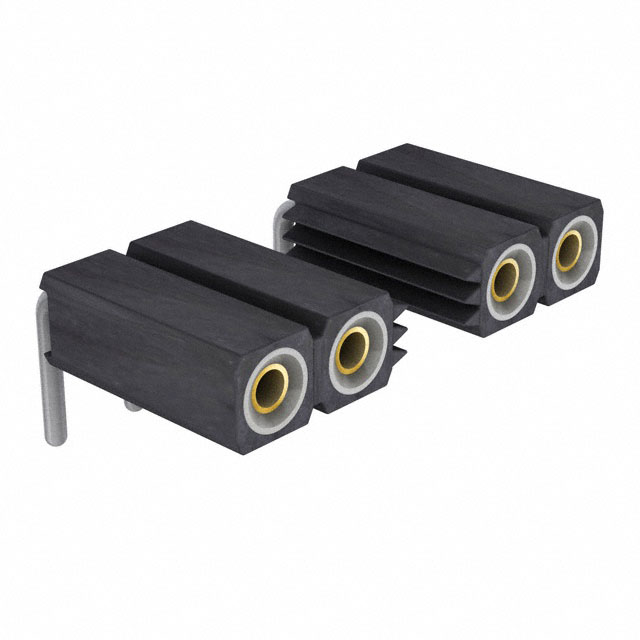

Preci-Dip 801-83-005-20-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	3 A	Solder		Right Angle Through Hole	Female Socket	All	0.1 in	2.54 mm	-55 C	125 °C	Tin	5	UL94 V-0	1	29.5 µin	0.75 µm	0.1 "	2.54 mm	Black	Gold	Push-Pull					0.126 "	3.2 mm
Preci-Dip 801-83-027-65-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	3 A	Press-Fit Solder		Through Hole	Female Socket	All	0.276 in	7 mm	-55 C	125 °C	Tin	27	UL94 V-0	1	29.5 µin	0.75 µm	0.1 "	2.54 mm	Black	Gold	Push-Pull		2.79 mm		0.11 in
Preci-Dip 801-83-005-10-003101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	3 A	Solder		Through Hole	Female Socket	All	0.315 in	8 mm	-55 C	125 °C	Tin	5	UL94 V-0	1	29.5 µin	0.75 µm	0.1 "	2.54 mm	Black	Gold	Push-Pull	0.118 in	3 mm

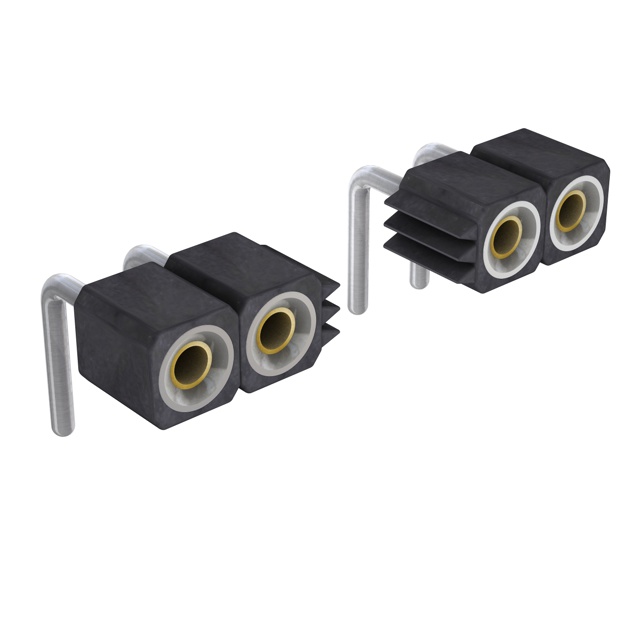

Preci-Dip 801-83-037-20-002101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	3 A	Solder		Right Angle Through Hole	Female Socket	All	0.1 in	2.54 mm	-55 C	125 °C	Tin	37	UL94 V-0	1	29.5 µin	0.75 µm	0.1 "	2.54 mm	Black	Gold	Push-Pull					0.126 "	3.2 mm
