8473 Series
Manufacturer: Belden Inc.
Beta
⌘K

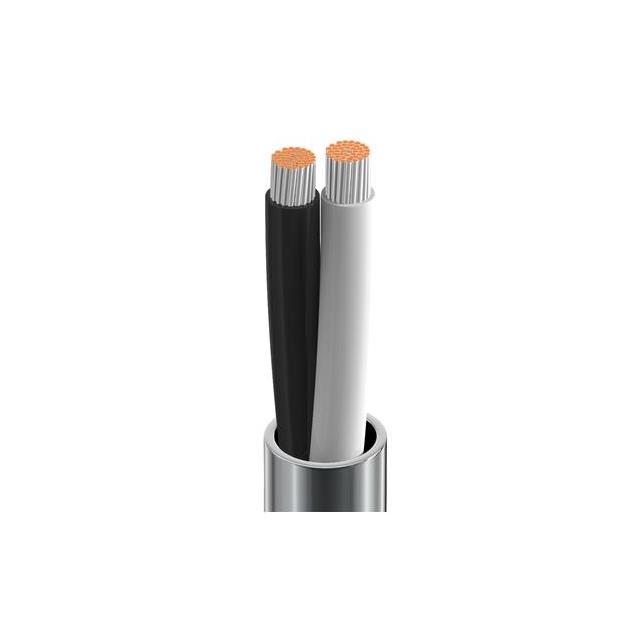

CABLE 2COND 14AWG CHROME
| Part | Ratings | Length | Length | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket Color | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Usage | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | UL Style 2587 | 304.8 m | 1000 ft | 14.5 AWG | 42 | 30 AWG | Multi-Conductor | Chrome | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | -20 ░C | 90 °C | Copper Tinned | Audio Control Instrumentation | 2 | 0.356 " | 9.04 mm | Poly-Vinyl Chloride (PVC) |
Belden Inc. | UL Style 2587 | 14.5 AWG | 42 | 30 AWG | Multi-Conductor | Chrome | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | -20 ░C | 90 °C | Copper Tinned | Audio Control Instrumentation | 2 | 0.356 " | 9.04 mm | Poly-Vinyl Chloride (PVC) |
