DA103 Series

Catalog

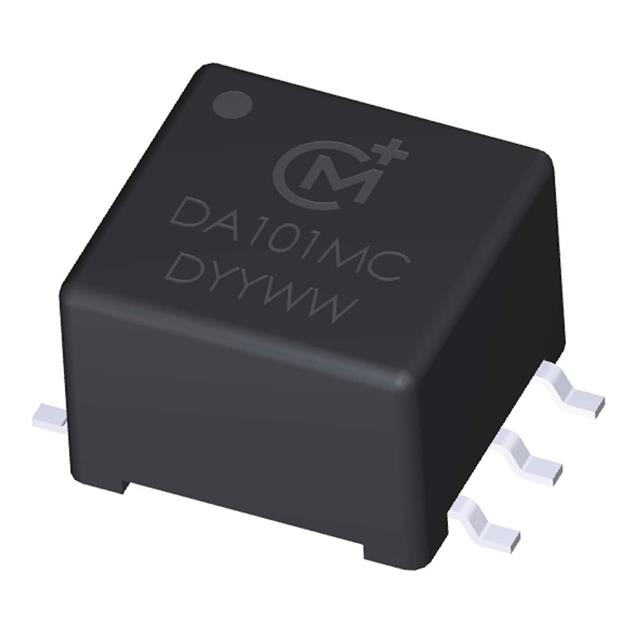

AUDIO TRANSFORMER 1:1 2000VRMS 6 TERMINAL GULL WING SMD

Part	Inductance	ET (Volt-Time)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Turns Ratio - Primary:Secondary	Operating Temperature [Max]	Operating Temperature [Min]
Murata Electronics DA103MC-R	7.75 mH	28 VµS	9.52 mm	9 mm	0.354 in	0.375 in	6.35 mm	0.25 in	Surface Mount	1:1	70 °C	0 °C
Murata Electronics DA103JC	7.75 mH	28 VµS	9.52 mm	9 mm	0.354 in	0.375 in	6.35 mm	0.25 in	Surface Mount	1:1	85 °C	-40 C
