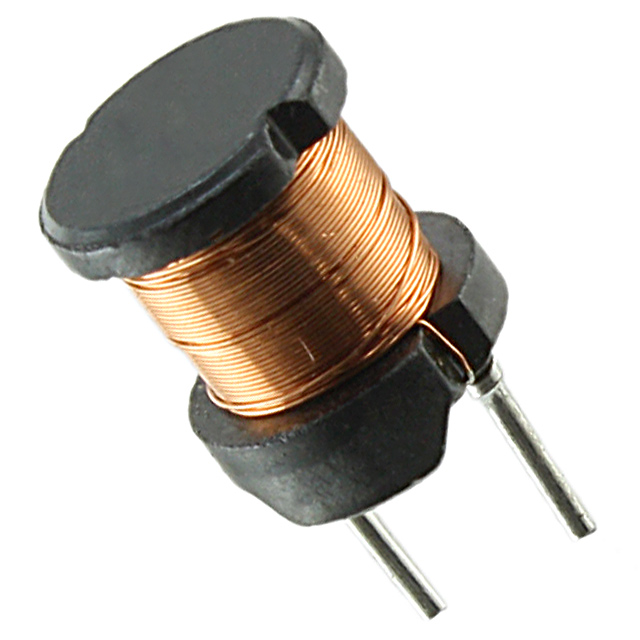

RL895 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 560UH 400MA 1.01OHM TH
| Part | Type | Q @ Freq [custom] | Q @ Freq [custom] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Inductance | Material - Core | Package / Case | Frequency - Self Resonant | Size / Dimension [diameter] | Size / Dimension [diameter] | Tolerance | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Shielding | Mounting Type | Current Rating (Amps) | Q @ Freq [custom] | DC Resistance (DCR) | Q @ Freq |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Drum Core Wirewound | 15 | 796 kHz | 0.374 " | 9.5 mm | -30 ░C | 100 °C | 560 µH | Ferrite | Radial Vertical Cylinder (Open) | 1.8 MHz | 0.307 in | 7.8 mm | 10 % | 1.01 Ohm | 1 kHz | Unshielded | Through Hole | 400 mA | |||
 Bourns Inc. | Drum Core Wirewound | 40 | 0.374 " | 9.5 mm | -30 ░C | 100 °C | 27 µH | Ferrite | Radial Vertical Cylinder (Open) | 8 MHz | 0.307 in | 7.8 mm | 10 % | 2.52 MHz | Unshielded | Through Hole | 1.6 A | 2.52 MHz | ||||
 Bourns Inc. | Drum Core Wirewound | 20 | 0.374 " | 9.5 mm | -30 ░C | 100 °C | 330 µH | Ferrite | Radial Vertical Cylinder (Open) | 2.2 MHz | 0.307 in | 7.8 mm | 10 % | 610 mOhm | 1 kHz | Unshielded | Through Hole | 0.51 A | 796 kHz | |||
Bourns Inc. | Drum Core Wirewound | 45 | 0.374 " | 9.5 mm | -30 ░C | 100 °C | 2.2 mH | Ferrite | Radial Vertical Cylinder (Open) | 800 kHz | 0.307 in | 7.8 mm | 10 % | 4.21 Ohm | 1 kHz | Unshielded | Through Hole | 190 mA | 252 kHz | |||
Bourns Inc. | Drum Core Wirewound | 45 | 0.374 " | 9.5 mm | -30 ░C | 100 °C | 3300 µH | Ferrite | Radial Vertical Cylinder (Open) | 0.307 in | 7.8 mm | 10 % | 6.16 Ohm | 1 kHz | Unshielded | Through Hole | 150 mA | 252 kHz | ||||
 Bourns Inc. | Drum Core Wirewound | 40 | 0.374 " | 9.5 mm | -30 ░C | 100 °C | 10 µH | Ferrite | Radial Vertical Cylinder (Open) | 14 MHz | 0.307 in | 7.8 mm | 20 % | 2.52 MHz | Unshielded | Through Hole | 2.6 A | 2.52 MHz | 40 mOhm | |||
Bourns Inc. | Drum Core Wirewound | 40 | 0.374 " | 9.5 mm | -30 ░C | 100 °C | 18 µH | Ferrite | Radial Vertical Cylinder (Open) | 10 MHz | 0.307 in | 7.8 mm | 10 % | 50 mOhm | 2.52 MHz | Unshielded | Through Hole | 2 A | 2.52 MHz | |||
Bourns Inc. | Drum Core Wirewound | 0.374 " | 9.5 mm | -30 ░C | 100 °C | 270 µH | Ferrite | Radial Vertical Cylinder (Open) | 2.4 MHz | 0.307 in | 7.8 mm | 10 % | 1 kHz | Unshielded | Through Hole | 570 mA | 530 mOhm | 25 796 kHz | ||||
Bourns Inc. | Drum Core Wirewound | 40 | 0.374 " | 9.5 mm | -30 ░C | 100 °C | 27 µH | Ferrite | Radial Vertical Cylinder (Open) | 8 MHz | 0.307 in | 7.8 mm | 10 % | 2.52 MHz | Unshielded | Through Hole | 1.6 A | 2.52 MHz | ||||
Bourns Inc. | Drum Core Wirewound | 45 | 0.374 " | 9.5 mm | -30 ░C | 100 °C | 2.7 mH | Ferrite | Radial Vertical Cylinder (Open) | 780 kHz | 0.307 in | 7.8 mm | 10 % | 4.94 Ohm | 1 kHz | Unshielded | Through Hole | 0.17 A | 252 kHz |
