9102 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

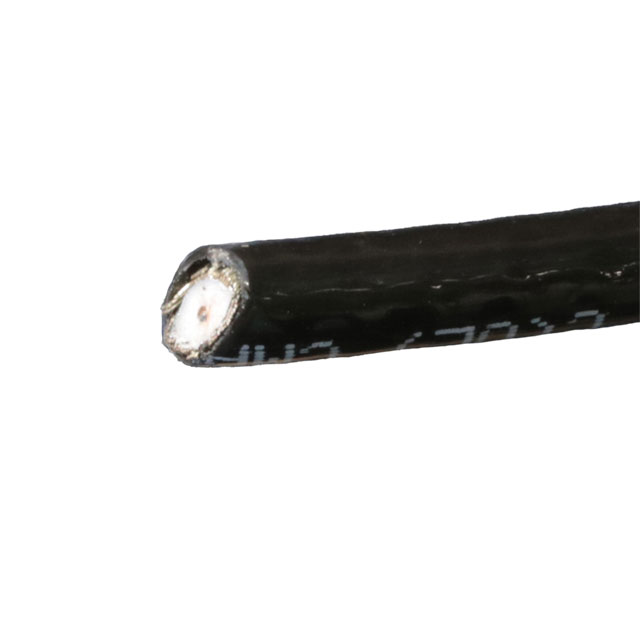

COAXIAL CABLE, RG59, 20 AWG, 75 OHM, 500 FT, 152.4 M
| Part | Conductor Material | VoP, Velocity of Propagation | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | Shield Coverage | Impedance | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Length [x] | Length [x] | Cable Group | Wire Gauge | Jacket Color | Jacket (Insulation) Material | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Coated Steel | 82 | Fluorinated Ethylene Propylene (FEP) | -10 °C | 125 °C | 3.56 mm | 0.14 in | Aluminum Copper Tinned | 94 % 100 % | 75 Ohms | Braid Foil | 5.38 mm | 0.212 in | Solid | 152.4 m | 500 ft | RG-59 | 20 AWG | Black | Polyvinylidene Fluoride (PVDF) | Coaxial |
