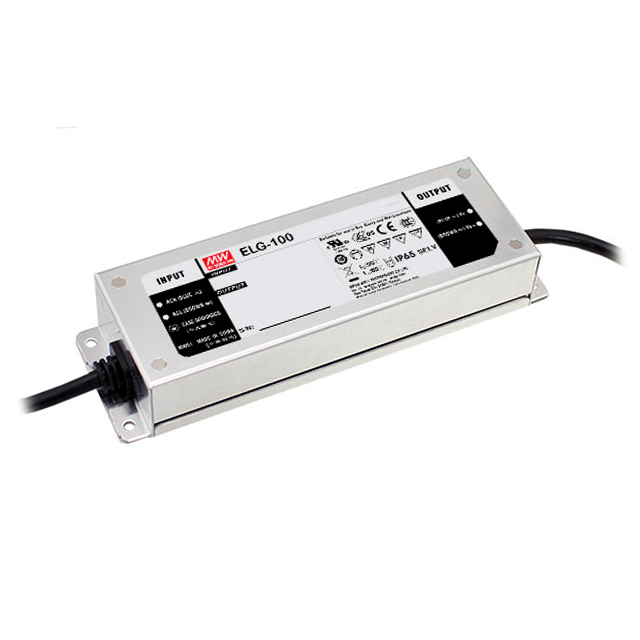

ELG-100 Series

Catalog

LED POWER SUPPLIES 700MA 71-143V

...

Part	Mounting Type	Ratings	Voltage - Output [Max]	Voltage - Output [Min]	Current - Output (Max) [Max]	Termination Style	Features	Voltage - Input (Max) [Max]	Topology	Efficiency	Voltage - Isolation	Type	Power (Watts)	Voltage - Input (Min) [Min]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output	Dimming	Standard Number	Voltage - Output [Max]

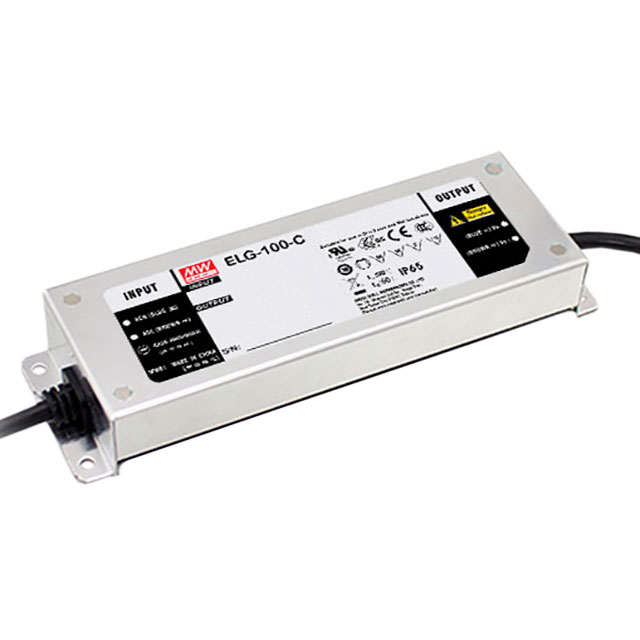

MEAN WELL USA Inc. ELG-100-C700DA	Chassis Mount	IP67	143 V	71 V	700 mA	Wire Leads	OTP OVP SCP	305 VAC	AC DC Converter	90 %	3750 VDC	Constant Current	100 W	100 VAC	CB CCC CE cURus EAC ENEC RCM	90 °C	-40 °C	1	175 mm	6.89 in	63 mm	2.48 in	1.4 "	35.5 mm
MEAN WELL USA Inc. ELG-100-24D2	Chassis Mount	IP67			4 A	Wire Leads	OCP OTP OVP SCP	305 VAC	AC DC Converter	88 %	3750 VDC	Constant Current Voltage	96 W	100 VAC	CB CCC CE cURus EAC ENEC UKCA	90 °C	-40 C	1	175 mm	6.89 in	63 mm	2.48 in	1.4 "	35.5 mm	24 V	Analog PWM	UL 8750
MEAN WELL USA Inc. ELG-100-C700B-3Y	Chassis Mount	IP67	143 V	71 V	700 mA	Wire Leads	OTP OVP SCP	305 VAC	AC DC Converter	90 %	3750 VDC	Constant Current	100 W	100 VAC	CB CCC CE cURus EAC ENEC KC RCM	90 °C	-40 C	1	175 mm	6.89 in	63 mm	2.48 in	1.4 "	35.5 mm
MEAN WELL USA Inc. ELG-100-48A-3Y	Chassis Mount	IP65			2 A	Wire Leads	OCP OTP OVP SCP	305 VAC	AC DC Converter	90 %	3750 VDC	Constant Current Voltage	96 W	100 VAC	CB CCC CE cURus EAC ENEC UKCA	90 °C	-40 C	1	175 mm	6.89 in	63 mm	2.48 in	1.4 "	35.5 mm	48 V	Analog PWM	UL 8750
MEAN WELL USA Inc. ELG-100-C1050	Chassis Mount	IP67	85 V	48 V	1.05 A	Wire Leads	OTP OVP SCP	305 VAC	AC DC Converter	90 %	3750 VDC	Constant Current	100 W	100 VAC	CB CCC CE cURus ENEC	90 °C	-40 C	1	175 mm	6.89 in	63 mm	2.48 in	1.4 "	35.5 mm
MEAN WELL USA Inc. ELG-100-C700D2-3Y	Chassis Mount	IP67	143 V	71 V	700 mA	Wire Leads	OTP OVP SCP	305 VAC	AC DC Converter	90 %	3750 VDC	Constant Current	100 W	100 VAC	CB CCC CE cURus EAC ENEC KC RCM	90 °C	-40 C	1	175 mm	6.89 in	63 mm	2.48 in	1.4 "	35.5 mm
MEAN WELL USA Inc. ELG-100-C500B	Chassis Mount	IP67		100 V	500 mA	Wire Leads	OTP OVP SCP	305 VAC	AC DC Converter	91 %	3750 VDC	Constant Current	100 W	100 VAC	CB CCC CE cURus ENEC	90 °C	-40 C	1	175 mm	6.89 in	63 mm	2.48 in	1.4 "	35.5 mm		Analog PWM		200 V
MEAN WELL USA Inc. ELG-100-24B	Chassis Mount	IP67	24 V	12 V	4 A	Wire Leads	OCP OTP OVP SCP	305 VAC	AC DC Converter	88 %	3750 VDC	Constant Current Voltage	96 W	100 VAC	CB CCC CE cURus ENEC RCM	90 °C	-40 C	1	175 mm	6.89 in	63 mm	2.48 in	1.4 "	35.5 mm		Analog PWM
MEAN WELL USA Inc. ELG-100-C700A	Chassis Mount	IP65	143 V	71 V	700 mA	Wire Leads	OTP OVP SCP	305 VAC	AC DC Converter	90 %	3750 VDC	Constant Current	100 W	100 VAC	CB CCC CE cURus ENEC	90 °C	-40 C	1	175 mm	6.89 in	63 mm	2.48 in	1.4 "	35.5 mm
MEAN WELL USA Inc. ELG-100-24D2-3Y	Chassis Mount	IP67			4 A	Wire Leads	OCP OTP OVP SCP	305 VAC	AC DC Converter	88 %	3750 VDC	Constant Current Voltage	96 W	100 VAC	CB CCC CE cURus EAC ENEC UKCA	90 °C	-40 C	1	175 mm	6.89 in	63 mm	2.48 in	1.4 "	35.5 mm	24 V	Analog PWM	UL 8750
