DC Power Connectors 11A SMT POWER JACK W
DC Power Connectors 11A SMT POWER JACK W
| Part | Voltage - Rated | Includes | Body Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating [custom] | Gender | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Contact Material | Internal Switch(s) | Connector Type | Features | Actual Diameter [diameter] | Actual Diameter [diameter] | Shielding | Housing Material | Mounting Feature | Number of Positions/Contacts | Mounting Type | Thread Size | Termination | Current Rating (Amps) | Contact Material - Plating [custom] | Ingress Protection | Contact Material - Plating | Actual Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

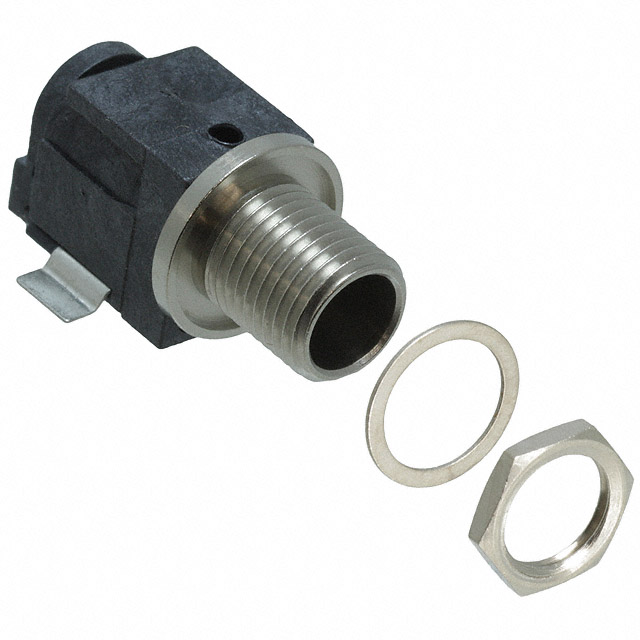

 Switchcraft Inc. | 24 VDC | Connector Nut Washer | Black | -40 °C | 105 ░C | Silver | Male | 0.079 in 0.217 " | 2 mm 5.5 mm | Copper Alloy | Normally Closed Single Switch | Jack | Board Guide | 0.079 in 0.252 " | 2 mm 6.4 mm | Unshielded | Thermoplastic | Bulkhead - Front Side Nut | 2 Conductors 3 Conductors | Surface Mount | 5/16"-32 | Solder | 11 A | ||||
Switchcraft Inc. | Black | Male | 0.098 " 0.217 " | 2.5 mm 5.5 mm | Copper Alloy | Normally Closed Single Switch | Jack | Unshielded | Thermoplastic | 2 Conductors 3 Conductors | Surface Mount Right Angle | Solder | 3 A | Nickel | |||||||||||||

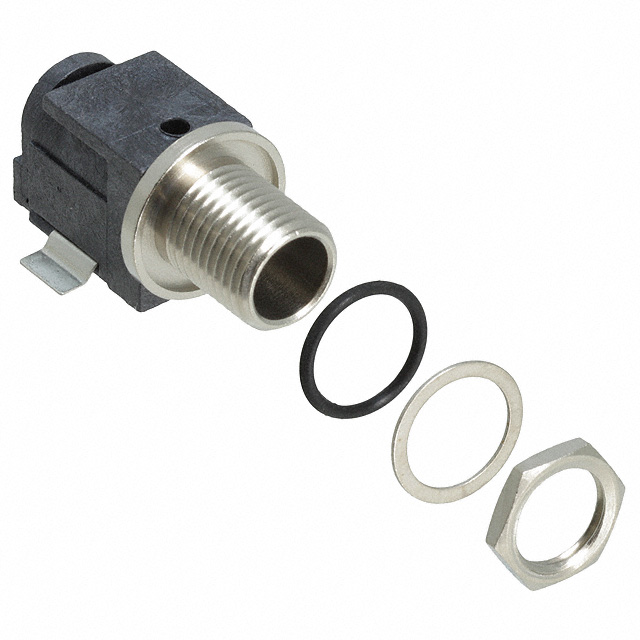

 Switchcraft Inc. | 24 VDC | 1 Connector 1 Nut 1 O-Ring 1 Washer | Black | -40 °C | 105 ░C | Silver | Male | 0.079 in 0.217 " | 2 mm 5.5 mm | Copper Alloy | Normally Closed Single Switch | Jack | 0.079 in 0.252 " | 2 mm 6.4 mm | Unshielded | Thermoplastic | Bulkhead - Front Side Nut | 2 Conductors 3 Conductors | Surface Mount | 5/16"-32 | Solder | 11 A | IP68 | ||||

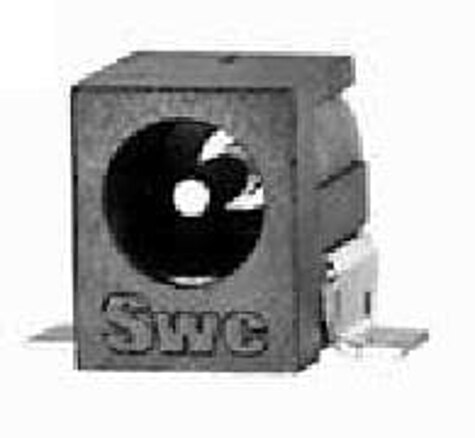

 Switchcraft Inc. | Black | Male | 0.079 in 0.217 " | 2 mm 5.5 mm | Copper Alloy | Normally Closed Single Switch | Jack | 0.079 in 0.248 in | Unshielded | Thermoplastic | 2 Conductors 3 Conductors | Surface Mount Right Angle | Solder | 5 A | Tin | 2 mm 6.3 mm |
