LB16CGW Series

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Electrical Life	Mechanical Life	Switch Function	Current Rating (Amps)	Circuit	Actuator Type	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Mounting Type	Type	Voltage Rating - AC	Color - Actuator/Cap	Termination Style	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches LB16CGW01-05-GJ	100000 Cycles	200000 Cycles	On-On	3 A	SPDT	Button Round	No Marking	50 °C	-25 °C	30 V	22 mm	Panel Mount Snap-In	Illuminated Standard	125 V	Blue	Solder Quick Connect - 0.110" (2.8mm)	Blue Incandescent	5 VAC
NKK Switches LB16CGW01-B	100000 Cycles	200000 Cycles	On-On	3 A	SPDT	Button Round	No Marking	70 °C	-25 °C	30 V	22 mm	Panel Mount Snap-In	Standard	125 V	White	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB16CGW01-5C12-JC	100000 Cycles	200000 Cycles	On-On	3 A	SPDT	Button Round	No Marking	50 °C	-25 °C	30 V	22 mm	Panel Mount Snap-In	Illuminated Standard	125 V	Clear	Solder Quick Connect - 0.110" (2.8mm)	LED Red	12 VDC
NKK Switches LB16CGW01/U	100000 Cycles	200000 Cycles	On-On	3 A	SPDT	Plunger for Cap	No Marking	70 °C	-25 °C	30 V	22 mm	Panel Mount Snap-In	Standard	125 V		Solder Quick Connect - 0.110" (2.8mm)

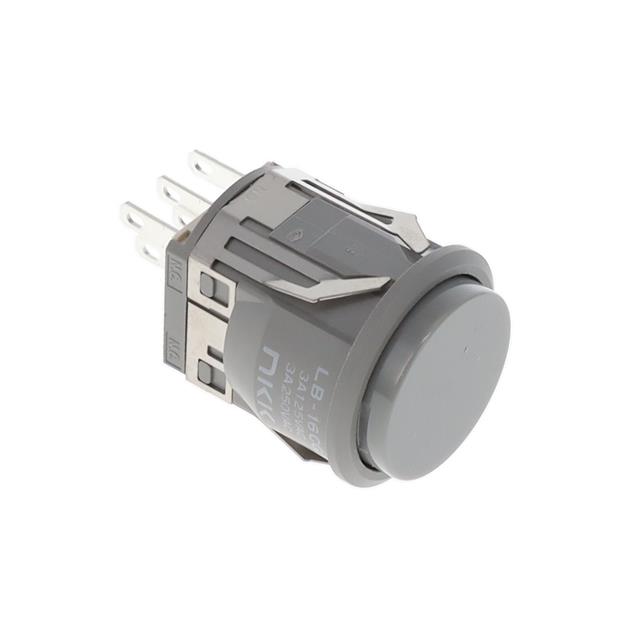

NKK Switches LB16CGW01-H	100000 Cycles	200000 Cycles	On-On	3 A	SPDT	Button Round	No Marking	70 °C	-25 °C	30 V	22 mm	Panel Mount Snap-In	Standard	125 V		Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB16CGW01-C	100000 Cycles	200000 Cycles	On-On	3 A	SPDT	Button Round	No Marking	70 °C	-25 °C	30 V	22 mm	Panel Mount Snap-In	Standard	125 V	Red	Solder Quick Connect - 0.110" (2.8mm)
