DCCM51 Series

Manufacturer: Cinch Connectivity Solutions

Catalog

CONN MICRO-D PLUG 51POS R/A SLDR

Part	Number of Rows [custom]	Dielectric Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Flange Feature	Mounting Type	Features	Contact Type	Connector Style	Current Rating (Amps)	Material Flammability Rating	Number of Positions	Termination	Shell Material, Finish	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]	Connector Type	2nd Connector	Length [x]	Length [x]	Color	1st Connector	Type	Length	Length	Backset Spacing	Backset Spacing

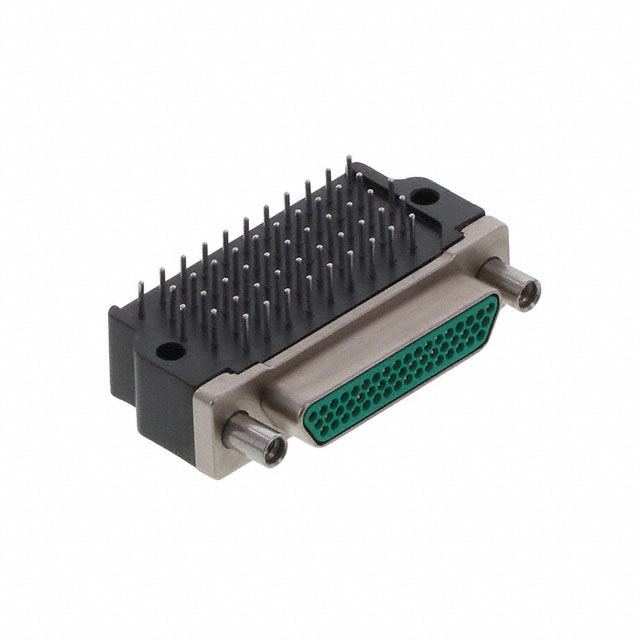

Cinch Connectivity Solutions DCCM51PCBRPN	3	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	50 µin	1.27 µm	Gold	5	Female Screwlock Mating Side	Right Angle Through Hole	Shielded	Signal	D-Type Micro-D	3 A	UL94 V-0	51	Solder	Aluminum Alloy Electroless Nickel Plated	0.043 in	0.05 in	Plug Male Pins
Cinch Connectivity Solutions DCCM51PSB	3	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	50 µin	1.27 µm	Gold			Panel Mount	Shielded	Signal	D-Type Micro-D	3 A	UL94 V-0	51		Aluminum Alloy Yellow Chromate Plated Cadmium	0.043 in	0.05 in	Plug Male Pins

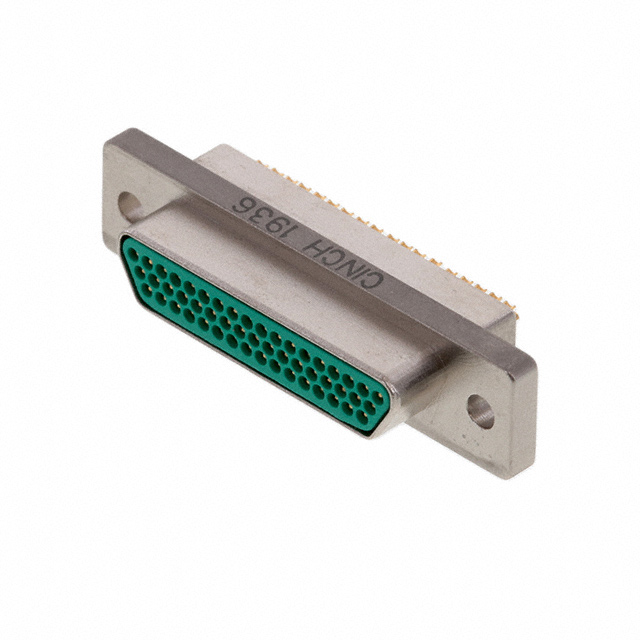

Cinch Connectivity Solutions DCCM51PSBN	3	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	50 µin	1.27 µm	Gold			Panel Mount	Shielded	Signal	D-Type Micro-D	3 A	UL94 V-0	51		Aluminum Alloy Electroless Nickel Plated	0.043 in	0.05 in	Plug Male Pins
Cinch Connectivity Solutions DCCM51S6E5-18.0B						50 µin	1.27 µm	Gold									51						Individual Wire Leads	457.2 mm	1.5 ft	Individual Multiple	Receptacle Female Sockets	D-Type Micro-D
Cinch Connectivity Solutions DCCM51P6E5-36.0BN						50 µin	1.27 µm	Gold									51						Individual Wire Leads			Individual Multiple	Male Pins Plug	D-Type Micro-D	91.44 cm	3 ft
Cinch Connectivity Solutions DCCM51SSBN	3	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	50 µin	1.27 µm	Gold			Panel Mount	Shielded	Signal	D-Type Micro-D	3 A	UL94 V-0	51		Aluminum Alloy Electroless Nickel Plated	0.043 in	0.05 in	Receptacle Female Sockets

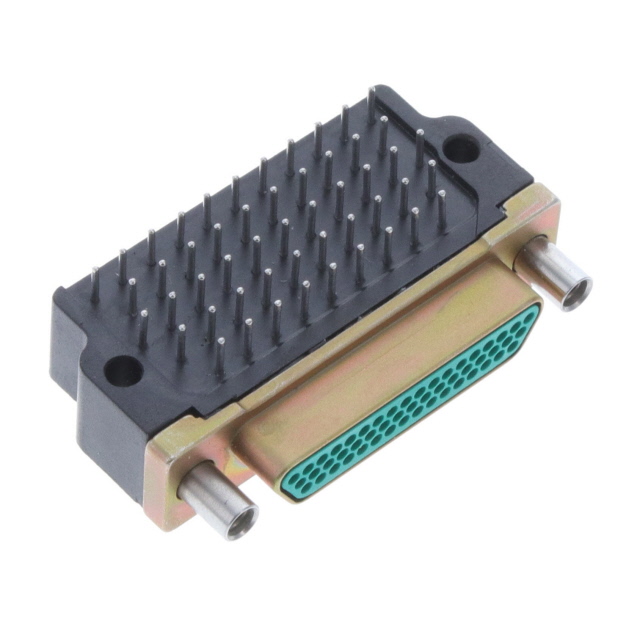

Cinch Connectivity Solutions DCCM51PCBRP	3	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	50 µin	1.27 µm	Gold	5	Female Screwlock Mating Side	Right Angle Through Hole	Shielded	Signal	D-Type Micro-D	3 A	UL94 V-0	51	Solder	Aluminum Alloy Yellow Chromate Plated Cadmium	0.043 in	0.05 in	Plug Male Pins									3.81 mm	0.15 "

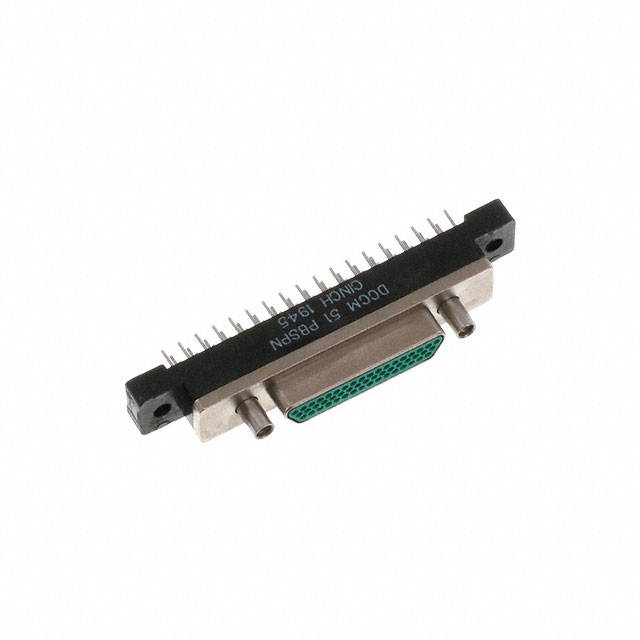

Cinch Connectivity Solutions DCCM51PBSPN	3	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	50 µin	1.27 µm	Gold	5	Female Screwlock Mating Side	Through Hole	Shielded	Signal	D-Type Micro-D	3 A	UL94 V-0	51	Solder	Aluminum Alloy Electroless Nickel Plated	0.043 in	0.05 in	Plug Male Pins									3.81 mm	0.15 "
