9GL1212 Series

Catalog

FAN AXIAL 119X38MM 12VDC WIRE

Part	Current Rating (Amps)	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Material - Blade	Approval Agency	Air Flow	Air Flow	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Voltage - Rated	Bearing Type	Width [y]	Fan Type	Features	Noise	Termination	Weight	Weight	Power (Watts)	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
Sanyo Denki America Inc. 9GL1212E1D01	0.61 A	80000 Hrs	10.2 VDC	13.8 VDC	Aluminum	Plastic	CSA TUV UL	118 CFM	3.3 m³/min	3100 RPM	-20 ░C	70 °C	100 Pa	0.401 in H2O	12 VDC	Ball	38 mm	Tubeaxial	Locked Rotor Sensor	46 dB(A)	3 Wire Leads	370.13 g	0.816 lb	7.32 W	Square	119 mm	119 mm
Sanyo Denki America Inc. 9GL1212F102	0.28 A	100000 Hrs	7 V	13.8 VDC	Aluminum	Plastic	CSA TUV UL	87 CFM	2.44 m³/min	2280 RPM	-20 ░C	70 °C	54.3 Pa	0.218 in H2O	12 VDC	Ball	38 mm	Tubeaxial		36 dB	2 Wire Leads	370.13 g	0.816 lb	3.36 W	Square	119 mm	119 mm
Sanyo Denki America Inc. 9GL1212G1D01	0.98 A	80000 Hrs	10.2 VDC	13.8 VDC	Aluminum	Plastic	CSA TUV UL	137 CFM	3.84 m³/min	3600 RPM	-20 ░C	70 °C	135 Pa	0.542 in H2O	12 VDC	Ball	38 mm	Tubeaxial	Locked Rotor Sensor	49 dB	3 Wire Leads	370.13 g	0.816 lb	11.8 W		120 mm		120 mm
Sanyo Denki America Inc. 9GL1212E101	0.61 A	80000 Hrs	10.2 VDC	13.8 VDC	Aluminum	Plastic	CSA TUV UL	118 CFM	3.3 m³/min	3100 RPM	-20 ░C	70 °C	100 Pa	0.401 in H2O	12 VDC	Ball	38 mm	Tubeaxial	Speed Sensor (Tach)	46 dB(A)	3 Wire Leads	370.13 g	0.816 lb	7.32 W	Square	119 mm	119 mm
Sanyo Denki America Inc. 9GL1212H101	0.38 A	100000 Hrs	7 V	13.8 VDC	Aluminum	Plastic	CSA TUV UL	99 CFM	2.77 m³/min	2600 RPM	-20 ░C	70 °C	70.5 Pa	0.283 in H2O	12 VDC	Ball	38 mm	Tubeaxial	Speed Sensor (Tach)	39 dB(A)	3 Wire Leads	370.13 g	0.816 lb	4.56 W	Square	119 mm	119 mm

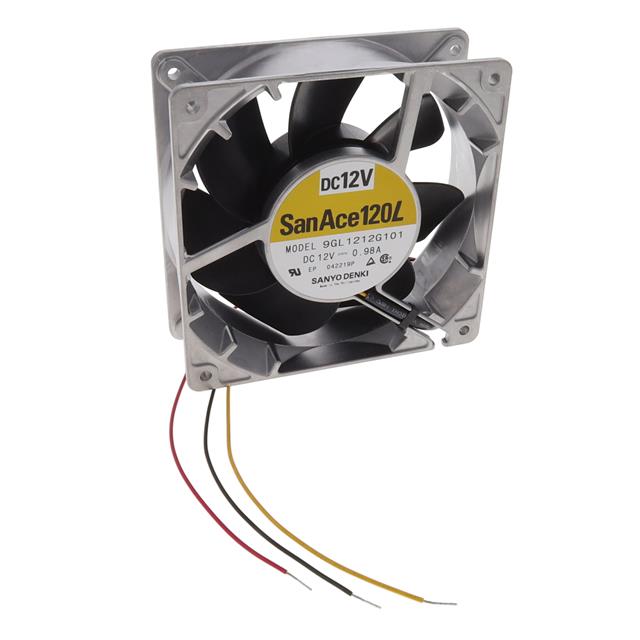

Sanyo Denki America Inc. 9GL1212G101	0.98 A	80000 Hrs	10.2 VDC	13.8 VDC	Aluminum	Plastic	CSA TUV UL	137 CFM	3.84 m³/min	3600 RPM	-20 ░C	70 °C	135 Pa	0.542 in H2O	12 VDC	Ball	38 mm	Tubeaxial	Speed Sensor (Tach)	49 dB	3 Wire Leads	370.13 g	0.816 lb	11.8 W	Square	119 mm	119 mm

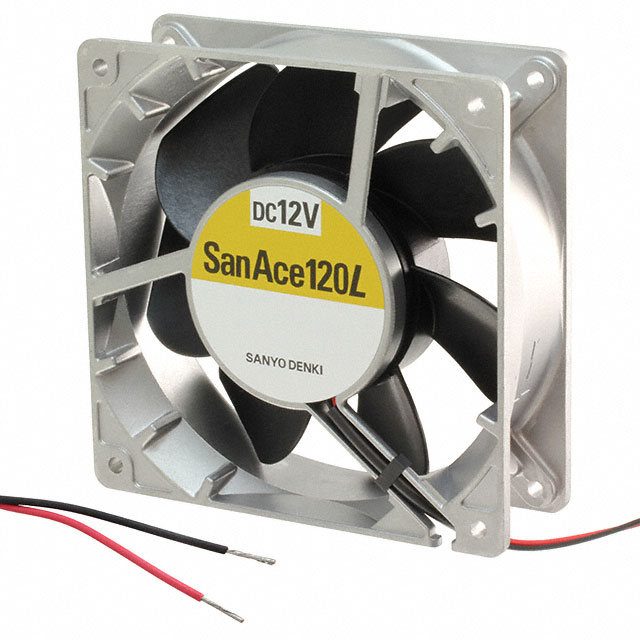

Sanyo Denki America Inc. 9GL1212G102	0.98 A	80000 Hrs	10.2 VDC	13.8 VDC	Aluminum	Plastic	CSA TUV UL	137 CFM	3.84 m³/min	3600 RPM	-20 ░C	70 °C	135 Pa	0.542 in H2O	12 VDC	Ball	38 mm	Tubeaxial		49 dB	2 Wire Leads	370.13 g	0.816 lb	11.8 W	Square	119 mm	119 mm
Sanyo Denki America Inc. 9GL1212H1D01	0.38 A	100000 Hrs	7 V	13.8 VDC	Aluminum	Plastic	CSA TUV UL	99 CFM	2.77 m³/min	2600 RPM	-20 ░C	70 °C	70.5 Pa	0.283 in H2O	12 VDC	Ball	38 mm	Tubeaxial	Locked Rotor Sensor	39 dB(A)	3 Wire Leads	370.13 g	0.816 lb	4.56 W	Square	119 mm	119 mm
Sanyo Denki America Inc. 9GL1212F101	0.28 A	100000 Hrs	7 V	13.8 VDC	Aluminum	Plastic	CSA TUV UL	87 CFM	2.44 m³/min	2280 RPM	-20 ░C	70 °C	54.3 Pa	0.218 in H2O	12 VDC	Ball	38 mm	Tubeaxial	Speed Sensor (Tach)	36 dB	3 Wire Leads	370.13 g	0.816 lb	3.36 W	Square	119 mm	119 mm
Sanyo Denki America Inc. 9GL1212E102	0.61 A	80000 Hrs	10.2 VDC	13.8 VDC	Aluminum	Plastic	CSA TUV UL	118 CFM	3.3 m³/min	3100 RPM	-20 ░C	70 °C	100 Pa	0.401 in H2O	12 VDC	Ball	38 mm	Tubeaxial		46 dB(A)	2 Wire Leads	370.13 g	0.816 lb	7.32 W	Square	119 mm	119 mm
