LCBX4 Series

Catalog

CONN TERM RECT TONG 4 AWG #1/4

Part	Contact Material	Diameter - Ring ID	Diameter - Ring ID	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Diameter - Barrel ID	Diameter - Barrel ID	Terminal Type	Color	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Wire Gauge	Terminal Style	Tab Thickness [custom]	Tab Thickness [custom]	Termination	Stud/Tab Size	Mounting Type	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges	Width - Outer Edges	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]

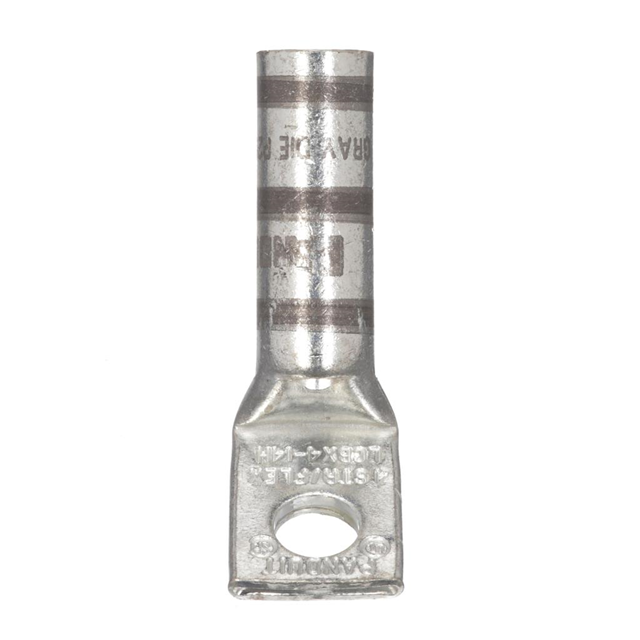

Panduit Corp LCBX4-14H-L	Copper	0.27 in	6.86 mm	0.38 in	9.65 mm	Electro-Tin	7.11 mm	0.28 in	Rectangular Tongue	Gray	0.55 in	13.97 mm	Non-Insulated	4 AWG	Single Stud Hole	0.09 in	2.29 mm	Barrel Crimp	0.25 Stud	Free Hanging (In-Line)

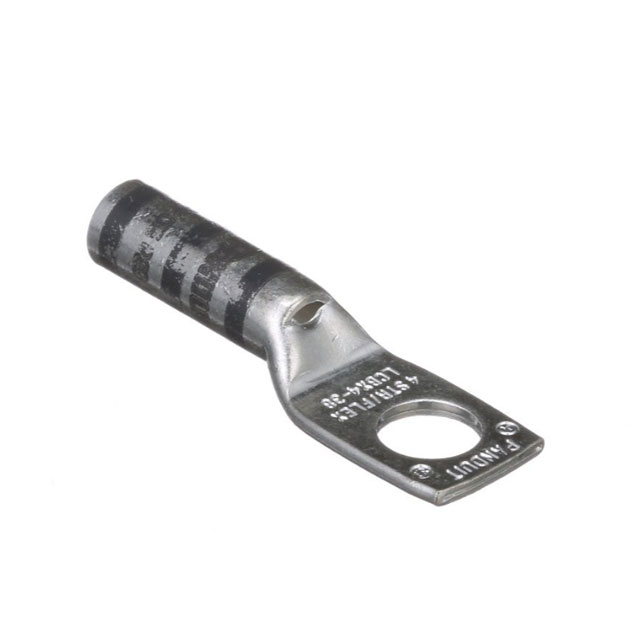

Panduit Corp LCBX4-38-L	Copper			0.38 in	9.65 mm	Electro-Tin	7.11 mm	0.28 in	Rectangular Tongue	Gray			Non-Insulated	4 AWG	Single Stud Hole			Barrel Crimp	0.375 Stud	Free Hanging (In-Line)	10.41 mm	0.41 "	1.78 mm	0.07 in	2.09 in	53.09 mm	0.62 in	15.75 mm
Panduit Corp LCBX450-38F-6	Copper			1.19 in	30.23 mm	Electro-Tin			Rectangular Tongue	Brown			Non-Insulated	450 MCM (kcmil)	Single Stud Hole			Barrel Crimp	0.375 Stud	Free Hanging (In-Line) Right Angle	10.41 mm	0.41 "	6.6 mm	0.26 in			1.7 in	43.18 mm	0.92 in	23.37 mm

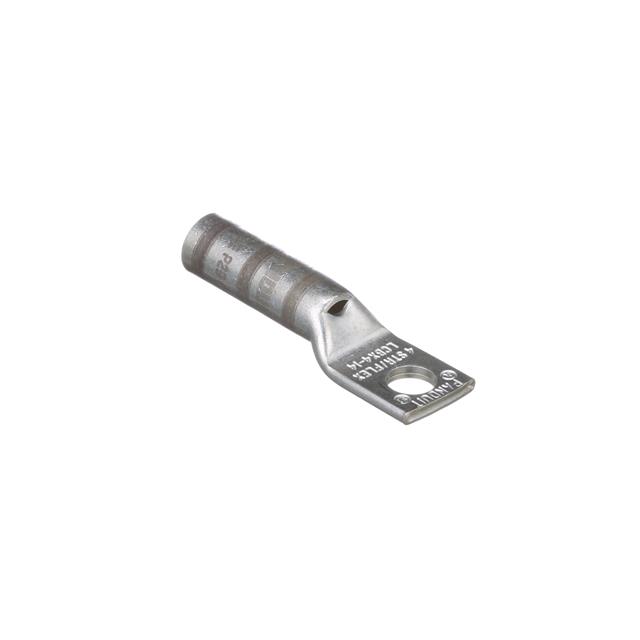

Panduit Corp LCBX4-14-L	Copper	0.27 in	6.86 mm	0.38 in	9.65 mm	Electro-Tin	7.11 mm	0.28 in	Rectangular Tongue	Gray	0.55 in	13.97 mm	Non-Insulated	4 AWG	Single Stud Hole	0.09 in	2.29 mm	Barrel Crimp	0.25 Stud	Free Hanging (In-Line)					1.87 "	47.5 mm
