1969584 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 34POS 2.5MM

Part	Row Spacing - Mating	Row Spacing - Mating	Applications	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Features	Contact Finish - Post	Insulation Height	Insulation Height	Voltage Rating	Number of Positions	Connector Type	Insulation Color	Material Flammability Rating	Contact Shape	Fastening Type	Insulation Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Type	Contact Type	Style	Number of Rows	Termination	Shrouding	Number of Positions
TE Connectivity Raychem Cable Protection 3-1969584-4	0.098 in	2.5 mm	General Purpose Industrial Lighting	All	0.134 in	3.4 mm	2.5 mm	0.098 in	Glow Wire Compliant	Tin	9.8 mm	0.386 in	250 VAC	34	Header	White	UL94 V-0	Circular	Friction Lock	Nylon Polyamide (PA)	Brass	105 ░C	-55 °C	4.2 A	Through Hole	Male Pin	Board to Cable/Wire	2	Kinked Pin Solder	Shrouded - 4 Wall
TE Connectivity Raychem Cable Protection 2-1969584-8	0.098 in	2.5 mm	General Purpose Industrial Lighting	All	0.134 in	3.4 mm	2.5 mm	0.098 in	Glow Wire Compliant	Tin	9.8 mm	0.386 in	250 VAC	28	Header	White	UL94 V-0	Circular	Friction Lock	Nylon Polyamide (PA)	Brass	105 ░C	-55 °C	4.2 A	Through Hole	Male Pin	Board to Cable/Wire	2	Kinked Pin Solder	Shrouded - 4 Wall

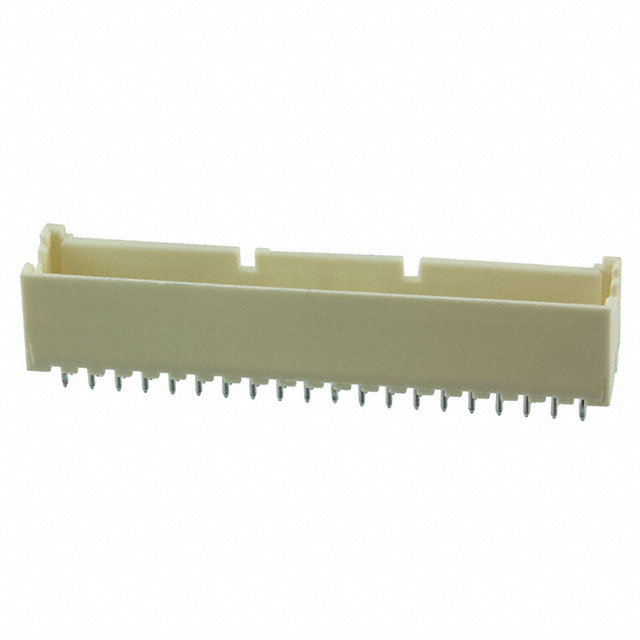

TE Connectivity Raychem Cable Protection 4-1969584-0	0.098 in	2.5 mm	General Purpose Industrial Lighting	All	0.134 in	3.4 mm	2.5 mm	0.098 in	Glow Wire Compliant	Tin	9.8 mm	0.386 in	250 VAC	40	Header	White	UL94 V-0	Circular	Friction Lock	Nylon Polyamide (PA)	Brass	105 ░C	-55 °C	4.2 A	Through Hole	Male Pin	Board to Cable/Wire	2	Kinked Pin Solder	Shrouded - 4 Wall
TE Connectivity Raychem Cable Protection 1-1969584-0	0.098 in	2.5 mm	General Purpose Industrial Lighting	All	0.134 in	3.4 mm	2.5 mm	0.098 in	Glow Wire Compliant	Tin	9.8 mm	0.386 in	250 VAC	10	Header	White	UL94 V-0	Circular	Friction Lock	Nylon Polyamide (PA)	Brass	105 ░C	-55 °C	4.2 A	Through Hole	Male Pin	Board to Cable/Wire	2	Kinked Pin Solder	Shrouded - 4 Wall
TE Connectivity Raychem Cable Protection 1-1969584-6	0.098 in	2.5 mm	General Purpose Industrial Lighting	All	0.134 in	3.4 mm	2.5 mm	0.098 in	Glow Wire Compliant	Tin	9.8 mm	0.386 in	250 VAC		Header	White	UL94 V-0	Circular	Friction Lock	Nylon Polyamide (PA)	Brass	105 ░C	-55 °C	4.2 A	Through Hole	Male Pin	Board to Cable/Wire	2	Kinked Pin Solder	Shrouded - 4 Wall	16

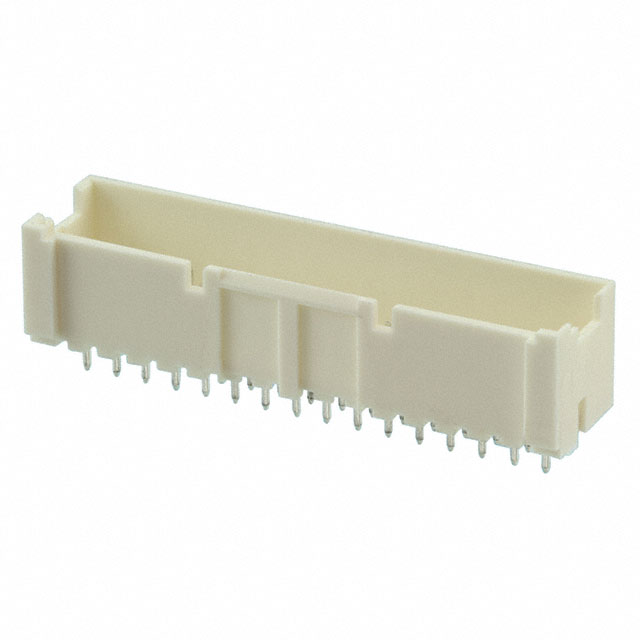

TE Connectivity Raychem Cable Protection 3-1969584-2	0.098 in	2.5 mm	General Purpose Industrial Lighting	All	0.134 in	3.4 mm	2.5 mm	0.098 in	Glow Wire Compliant	Tin	9.8 mm	0.386 in	250 VAC		Header	White	UL94 V-0	Circular	Friction Lock	Nylon Polyamide (PA)	Brass	105 ░C	-55 °C	4.2 A	Through Hole	Male Pin	Board to Cable/Wire	2	Kinked Pin Solder	Shrouded - 4 Wall

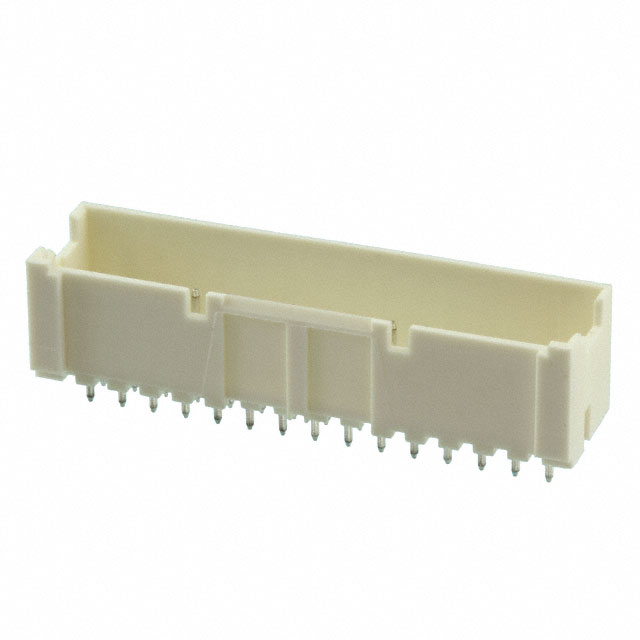

TE Connectivity Raychem Cable Protection 3-1969584-0	0.098 in	2.5 mm	General Purpose Industrial Lighting	All	0.134 in	3.4 mm	2.5 mm	0.098 in	Glow Wire Compliant	Tin	9.8 mm	0.386 in	250 VAC	30	Header	White	UL94 V-0	Circular	Friction Lock	Nylon Polyamide (PA)	Brass	105 ░C	-55 °C	4.2 A	Through Hole	Male Pin	Board to Cable/Wire	2	Kinked Pin Solder	Shrouded - 4 Wall

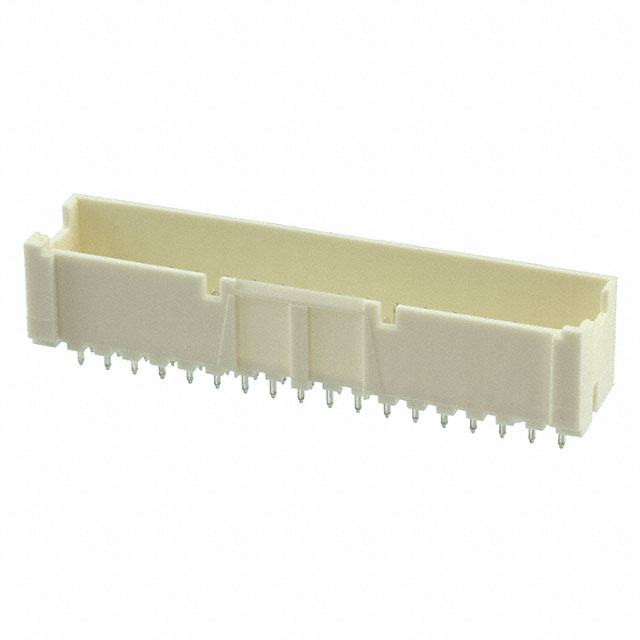

TE Connectivity Raychem Cable Protection 3-1969584-6	0.098 in	2.5 mm	General Purpose Industrial Lighting	All	0.134 in	3.4 mm	2.5 mm	0.098 in	Glow Wire Compliant	Tin	9.8 mm	0.386 in	250 VAC	36	Header	White	UL94 V-0	Circular	Friction Lock	Nylon Polyamide (PA)	Brass	105 ░C	-55 °C	4.2 A	Through Hole	Male Pin	Board to Cable/Wire	2	Kinked Pin Solder	Shrouded - 4 Wall
