2563140 Series
Manufacturer: NorComp Inc.
Beta
⌘K

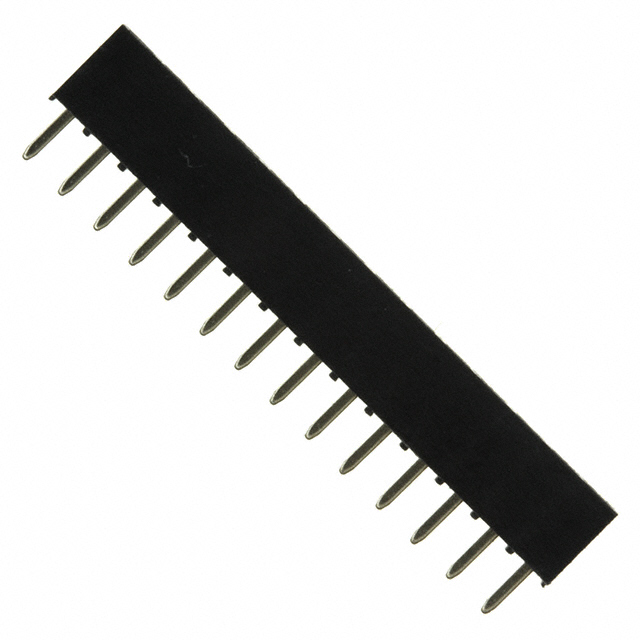

25631401RP2 ROHS COMPLIANT: YES
| Part | Contact Shape | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Fastening Type | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Mounting Type | Contact Type | Contact Finish - Mating | Number of Rows | Material Flammability Rating | Termination | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Connector Type | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Square | Phosphor Bronze | 2.54 µm | 100 µin | Black | Push-Pull | 4.3 mm | 0.169 " | Flash | Through Hole | Female Socket | Gold | 1 | UL94 V-0 | Solder | 14 | 0.079 " | 2 mm | 2.5 mm | 0.098 in | Receptacle | Tin | -40 C | 105 ░C | All |
