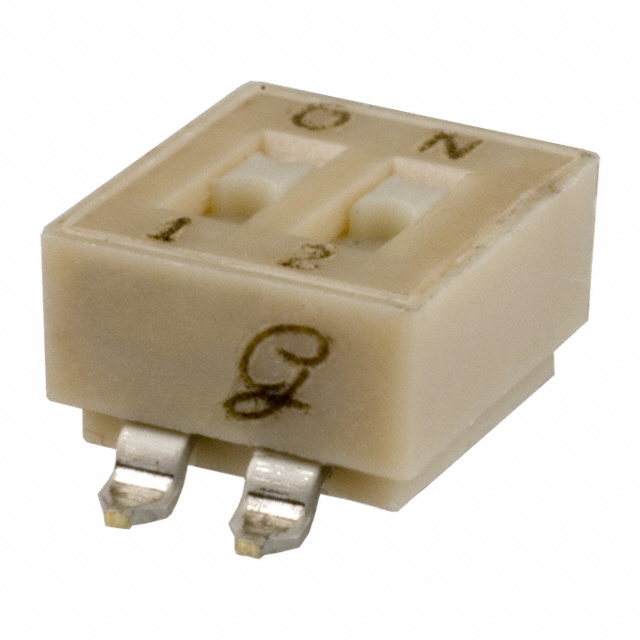

90HBW08 Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mechanical Life	Body Material	Electrical Life	Length	Length	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Actuator Level	Termination Style	Contact Finish	Current Rating (Amps)	Actuator Type	Number of Positions	Mounting Type	Circuit	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Features
Grayhill Inc. 90HBW08RT	2000 Cycles	Thermoplastic	2000 Steps	0.87 in	22.1 mm	0.19 in	4.83 mm	2.54 mm	0.1 "	Flush Recessed	Gull Wing	Gold	25 mA	Slide (Standard)	8	Surface Mount	SPST	24 VDC	85 °C	-40 C	Copper Alloy
Grayhill Inc. 90HBW08PRT	2000 Cycles	Thermoplastic	2000 Steps	0.87 in	22.1 mm	0.19 in	4.83 mm	2.54 mm	0.1 "	Flush Recessed	Gull Wing	Gold	25 mA	Slide (Standard)	8	Surface Mount	SPST	24 VDC	85 °C	-40 C	Copper Alloy	Tape Seal
Grayhill Inc. 90HBW08PT	2000 Cycles	Thermoplastic	2000 Steps	0.87 in	22.1 mm	0.19 in	4.83 mm	2.54 mm	0.1 "	Flush Recessed	Gull Wing	Gold	25 mA	Slide (Standard)	8	Surface Mount	SPST	24 VDC	85 °C	-40 C	Copper Alloy	Tape Seal
