R7FA6M3AH3 Series

Manufacturer: Renesas Electronics Corporation

Catalog

MCU RA6 ARM CM4 120MHZ 2M/640K Q

Part	Mounting Type	Speed	Number of I/O	Core Processor	RAM Size	Operating Temperature [Min]	Operating Temperature [Max]	Oscillator Type	Program Memory Type	Data Converters	Program Memory Size	Package / Case	Core Size	EEPROM Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Connectivity	Supplier Device Package	Peripherals
Renesas Electronics Corporation R7FA6M3AH3CFP#BA0	Surface Mount	120 MHz	76	ARM® Cortex®-M4F	640 K	-40 °C	105 °C	Internal	FLASH	A/D 19x12b SAR D/A 2x12b	2 MB	100-LQFP	32-Bit	64 K	3.6 V	2.7 V	CANbus EBI/EMI Ethernet I2C IrDA MMC/SD SCI SPI UART/USART USB	100-LFQFP (14x14)	DMA LCD LVD POR PWM WDT
Renesas Electronics Corporation R7FA6M3AH3CFB#BA0	Surface Mount	120 MHz	110	ARM® Cortex®-M4F	640 K	-40 °C	105 °C	Internal	FLASH	A/D 22x12b SAR D/A 2x12b	2 MB	144-LQFP	32-Bit	64 K	3.6 V	2.7 V	CANbus EBI/EMI Ethernet I2C IrDA MMC/SD SCI SPI UART/USART USB	144-LFQFP (20x20)	DMA LCD LVD POR PWM WDT

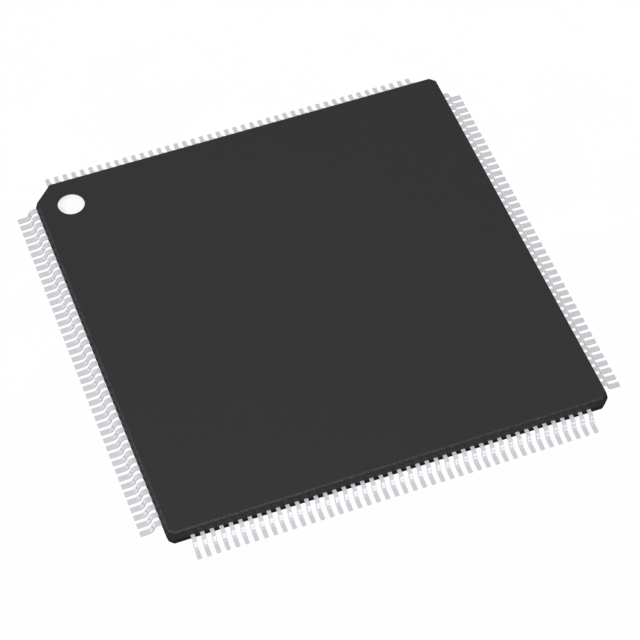

Renesas Electronics Corporation R7FA6M3AH3CFC#BA1	Surface Mount	120 MHz	124	ARM® Cortex®-M4F	640 K	-40 °C	105 °C	Internal	FLASH	A/D 24x12b SAR D/A 2x12b	2 MB	176-LQFP	32-Bit	64 K	3.6 V	2.7 V	CANbus EBI/EMI Ethernet I2C IrDA MMC/SD SCI SPI UART/USART USB	176-LFQFP (24x24)	DMA LCD LVD POR PWM WDT
Renesas Electronics Corporation R7FA6M3AH3CFC#BA0	Surface Mount	120 MHz	124	ARM® Cortex®-M4F	640 K	-40 °C	105 °C	Internal	FLASH	A/D 24x12b SAR D/A 2x12b	2 MB	176-LQFP	32-Bit	64 K	3.6 V	2.7 V	CANbus EBI/EMI Ethernet I2C IrDA MMC/SD SCI SPI UART/USART USB	176-LFQFP (24x24)	DMA LCD LVD POR PWM WDT
Renesas Electronics Corporation R7FA6M3AH3CFP#HA0	Surface Mount	120 MHz	76	ARM® Cortex®-M4F	640 K	-40 °C	105 °C	Internal	FLASH	A/D 19x12b SAR D/A 2x12b	2 MB	100-LQFP	32-Bit	64 K	3.6 V	2.7 V	CANbus EBI/EMI Ethernet I2C IrDA MMC/SD SCI SPI UART/USART USB	100-LFQFP (14x14)	DMA LCD LVD POR PWM WDT
Renesas Electronics Corporation R7FA6M3AH3CFP#AA5	Surface Mount	120 MHz	76	ARM® Cortex®-M4F	640 K	-40 °C	105 °C	Internal	FLASH	A/D 19x12b SAR D/A 2x12b	2 MB	100-LQFP	32-Bit	64 K	3.6 V	2.7 V	CANbus EBI/EMI Ethernet I2C IrDA MMC/SD SCI SPI UART/USART USB	100-LFQFP (14x14)	DMA LCD LVD POR PWM WDT
