002203 Series

Manufacturer: Molex

Catalog

Catalog

0022031121

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Fastening Type	Contact Type	Number of Positions Loaded	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Material Flammability Rating	Shrouding	Style	Overall Contact Length [x]	Overall Contact Length [x]	Termination	Mounting Type	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Contact Material	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Post	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Post [custom]	Contact Length - Post [custom]
Molex 0022031121

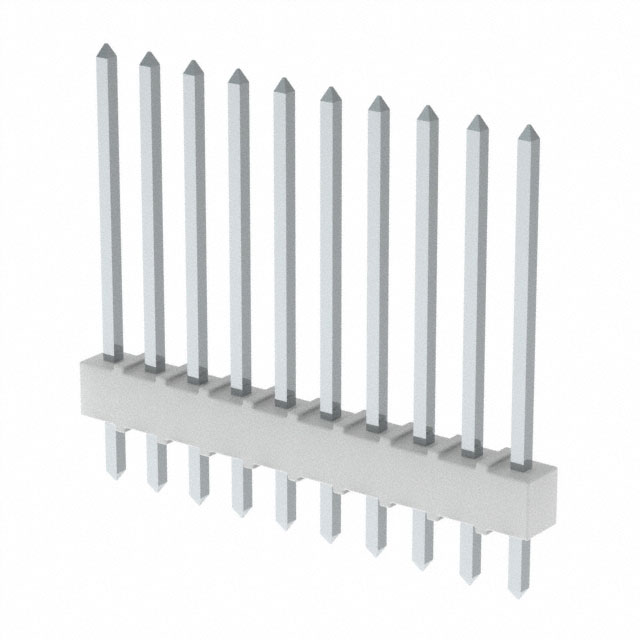

Molex 0022032103	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	Push-Pull	Male Pin	All	Square	60 µin	1.52 Ám	1	UL94 V-0	Unshrouded	Board to Board Cable	21.34 mm	0.84 in	Solder	Through Hole	White	0.1 "	2.54 mm	10	Header	0.122 in	3.1 mm	0.588 in	14.94 mm	Nylon Polyamide (PA)	0.13 in	3.3 mm	Tin
Molex 0022031041				Push-Pull	Male Pin	All	Circular			1	UL94 V-0	Unshrouded	Board to Cable/Wire			Solder	Through Hole	Natural	0.098 in	2.5 mm	4	Header	0.134 "		0.295 in	7.49 mm	Nylon Polyamide (PA)	0.13 in	3.3 mm	Tin	Brass	3.4 mm	14.2 mm	0.559 "

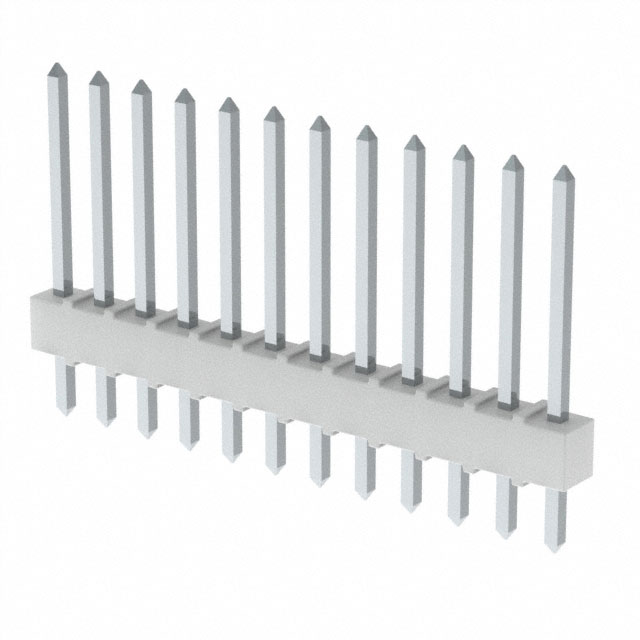

Molex 0022032122	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	Push-Pull	Male Pin	All	Square	60 µin	1.52 Ám	1	UL94 V-0	Unshrouded	Board to Board Cable			Solder	Through Hole	White	0.1 "	2.54 mm	12	Header			0.435 in	11.05 mm	Nylon Polyamide (PA)	0.13 in	3.3 mm	Tin		3.18 mm	17.53 mm	0.69 in	0.125 in
Molex 0022035175			Automotive General Purpose Industrial Medical Telecommunications	Detent Lock	Male Pin	All	Circular			1	UL94 V-0	Shrouded - 4 Wall	Board to Cable/Wire			Solder	Through Hole		0.098 in	2.5 mm		Header			0.138 in	3.5 mm	Glass Filled Nylon 6/6 Polyamide (PA66)			Tin	Brass	3.5 mm	8.89 mm	0.35 in	0.138 in	5.9 mm	0.232 in

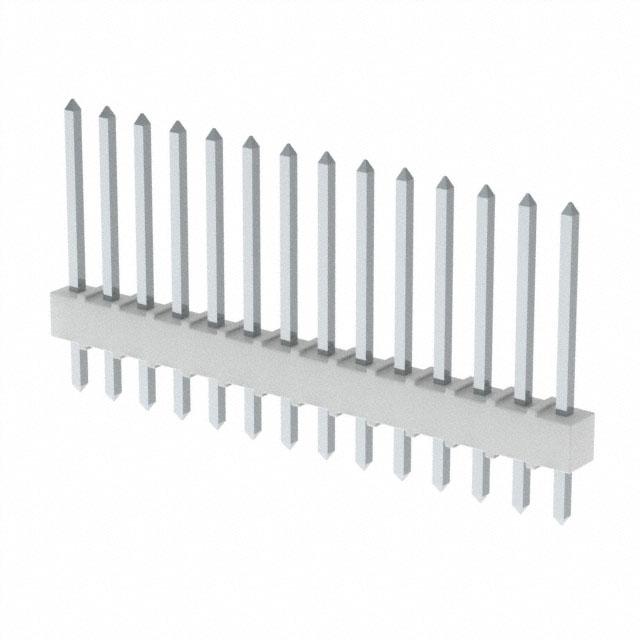

Molex 0022032142	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	Push-Pull	Male Pin	All	Square	60 µin	1.52 Ám	1	UL94 V-0	Unshrouded	Board to Board Cable			Solder	Through Hole	White	0.1 "	2.54 mm	14	Header			0.435 in	11.05 mm	Nylon Polyamide (PA)	0.13 in	3.3 mm	Tin		3.18 mm	17.53 mm	0.69 in	0.125 in
Molex 0022031151				Push-Pull	Male Pin	All	Circular			1	UL94 V-0	Unshrouded	Board to Cable/Wire			Solder	Through Hole	Natural	0.098 in	2.5 mm	15	Header	0.134 "		0.295 in	7.49 mm	Nylon Polyamide (PA)	0.13 in	3.3 mm	Tin	Brass	3.4 mm	14.2 mm	0.559 "
Molex 0022032076	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	Push-Pull	Male Pin	All	Square	60 µin	1.52 Ám	1	UL94 V-0	Unshrouded	Board to Board Cable	21.34 mm	0.84 in	Solder	Through Hole	White	0.1 "	2.54 mm	7	Header	0.15 in	3.81 mm		14.22 mm	Nylon Polyamide (PA)	0.13 in	3.3 mm	Tin								0.56 in

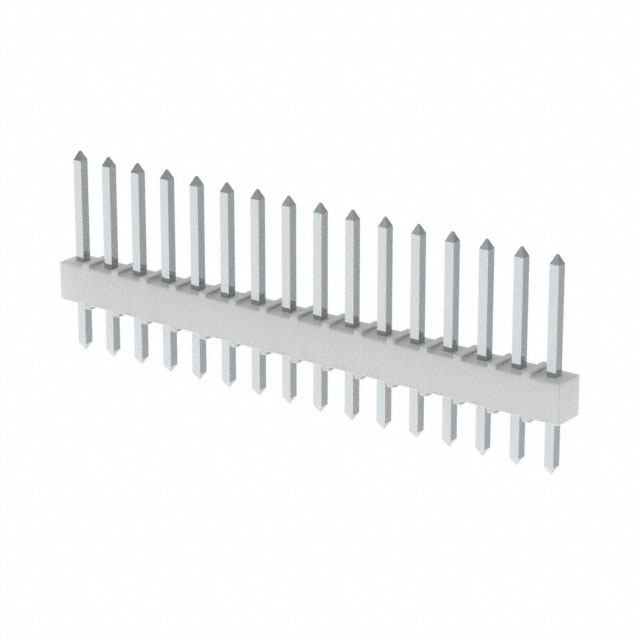

Molex 0022032161	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	Push-Pull	Male Pin	All	Square	60 µin	1.52 Ám	1	UL94 V-0	Unshrouded	Board to Board Cable			Solder	Through Hole	White	0.1 "	2.54 mm	16	Header			0.295 in	7.49 mm	Nylon Polyamide (PA)	0.13 in	3.3 mm	Tin			14.22 mm	0.56 in					0.135 in	3.43 mm

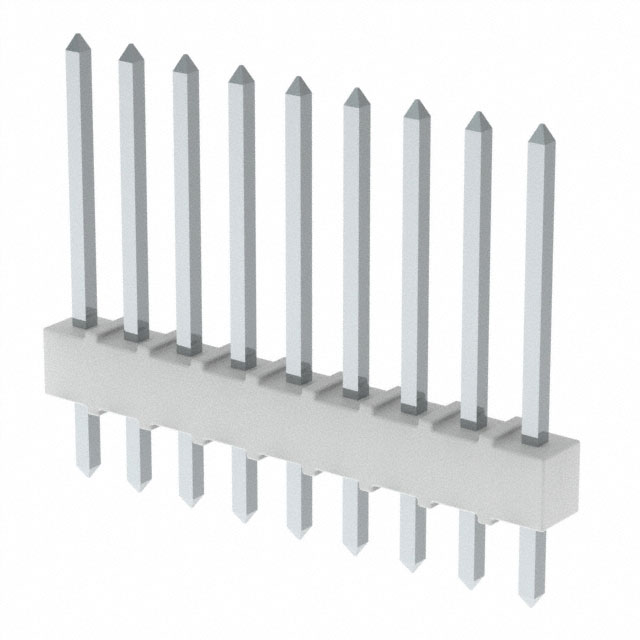

Molex 0022032092	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	Push-Pull	Male Pin	All	Square	60 µin	1.52 Ám	1	UL94 V-0	Unshrouded	Board to Board Cable			Solder	Through Hole	White	0.1 "	2.54 mm	9	Header			0.435 in	11.05 mm	Nylon Polyamide (PA)	0.13 in	3.3 mm	Tin		3.18 mm	17.53 mm	0.69 in	0.125 in
