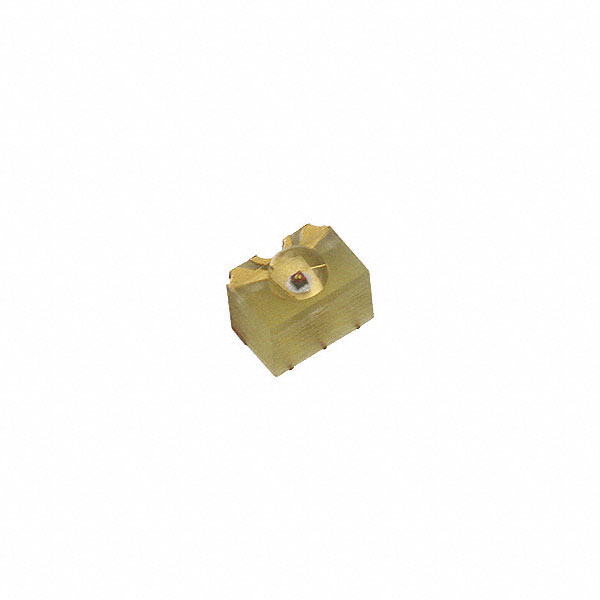

SMF-2432 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED CBI 1.6MM GREEN SMD RA

Part	Configuration	Millicandela Rating	Lens Size [diameter]	Current	Lens Type	Viewing Angle	Color	Lens Style	Mounting Type	Package / Case	Lens Color	Wavelength - Peak	Supplier Device Package	Current - Test	Lens Transparency	Height (Max) [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Current	Voltage Rating
Lumex Opto/Components Inc. SMF-2432SUGC-TR	Single	40 mcd	1.6 mm	20 mA	Clear	110 °	Green	Round with Domed Top	Right Angle Surface Mount
Lumex Opto/Components Inc. SMF-2432SYC-TR	Standard	170 mcd	1.6 mm			110 °	Yellow	Round with Domed Top	Right Angle Surface Mount	3-SMD No Lead	Colorless	590 nm	SMD	20 mA	Clear	2.4 mm	3.1 mm	3.2 mm	2.1 V
Lumex Opto/Components Inc. SMF-2432YC-TR	Standard	14 mcd	1.6 mm			110 °	Yellow	Round with Domed Top	Right Angle Surface Mount	3-SMD No Lead	Colorless	585 nm	SMD	20 mA	Clear	2.4 mm	3.1 mm	3.2 mm	2 V
Lumex Opto/Components Inc. SMF-2432GC-TR	Standard	14 mcd	1.6 mm			110 °	Green	Round with Domed Top	Right Angle Surface Mount	3-SMD No Lead	Colorless	565 nm	SMD	20 mA	Clear	2.4 mm	3.1 mm	3.2 mm	2.2 V
Lumex Opto/Components Inc. SMF-2432GYC-TR	Single		1.6 mm		Clear	90 °	Green Yellow	Round with Domed Top	Right Angle Surface Mount			565 nm 585 nm								20mA Green 20mA Yellow	2.1 V 2.2 V
Lumex Opto/Components Inc. SMF-2432SIC-TR	Standard	60 mcd	1.6 mm			110 °	Red	Round with Domed Top	Right Angle Surface Mount	3-SMD No Lead	Colorless	636 nm	SMD	20 mA	Clear	2.4 mm	3.1 mm	3.2 mm	2 V
Lumex Opto/Components Inc. SMF-2432USBC-TR	Standard	140 mcd	1.6 mm			110 °	Blue	Round with Domed Top	Right Angle Surface Mount	3-SMD No Lead	Colorless	470 nm	SMD	20 mA	Clear	2.4 mm	3.1 mm	3.2 mm	3.5 V
Lumex Opto/Components Inc. SMF-2432UPGC-TR	Standard	160 mcd	1.6 mm			110 °	Green	Round with Domed Top	Right Angle Surface Mount	3-SMD No Lead	Colorless	525 nm	SMD	20 mA	Clear	2.4 mm	3.1 mm	3.2 mm	3.5 V
