LCA3 Series

Catalog

LUG TERMINAL, 90°, PAN-LUG LCA-F SERIES, CRIMP, 000 AWG, COMPRESSION LUG, M12

Part	Diameter - Ring ID	Diameter - Ring ID	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Contact Material	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Termination	Tab Thickness [x]	Tab Thickness [x]	Mounting Type	Terminal Type	Stud/Tab Size	Terminal Style	Width - Outer Edges	Width - Outer Edges	Insulation	Diameter - Ring ID	Length - Overall [x]	Length - Overall [x]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]

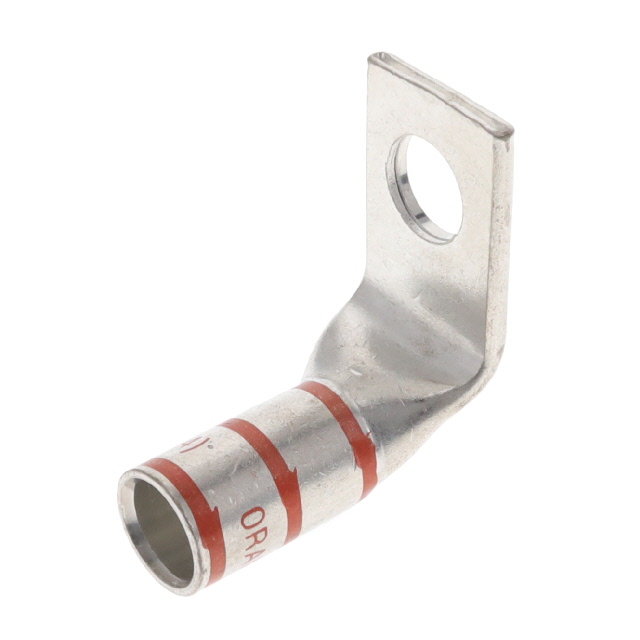

Panduit Corp LCA3/0-12F-X	13.46 mm	0.53 in	16.26 mm	0.64 in	Electro-Tin	Copper	0.51 in	12.95 mm	Barrel Crimp	3.3 mm	0.13 in	Free Hanging (In-Line) Right Angle	Rectangular Tongue	0.5 Stud	Single Stud Hole	24.38 mm	0.96 in	Non-Insulated
Panduit Corp LCA3/0-14-X		6.86 mm	16.26 mm	0.64 in	Electro-Tin	Copper	0.51 in	12.95 mm	Barrel Crimp	3.3 mm	0.13 in	Free Hanging (In-Line)	Rectangular Tongue	0.25 Stud	Single Stud Hole	24.38 mm	0.96 in	Non-Insulated	0.27 in	57.66 mm	2.27 in

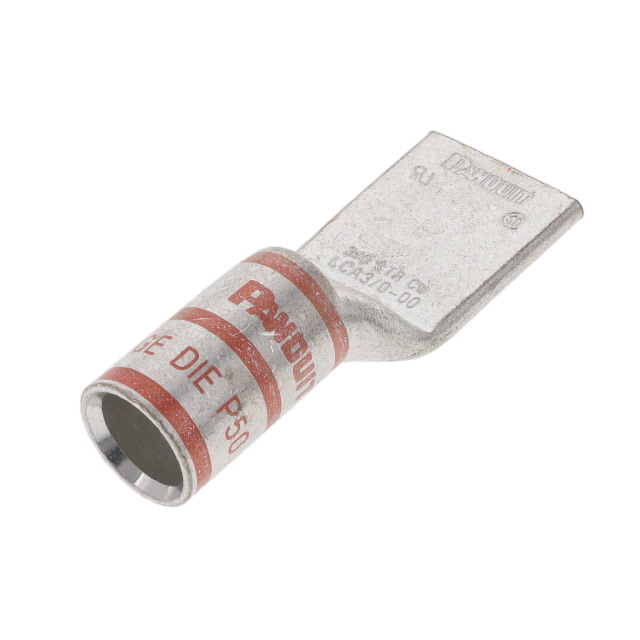

Panduit Corp LCA3/0-00-X			16.26 mm	0.64 in	Electro-Tin	Copper	0.51 in	12.95 mm	Barrel Crimp	3.3 mm	0.13 in	Free Hanging (In-Line)	Rectangular Tongue		No Stud Hole	24.38 mm	0.96 in	Non-Insulated		65.53 mm	2.58 in

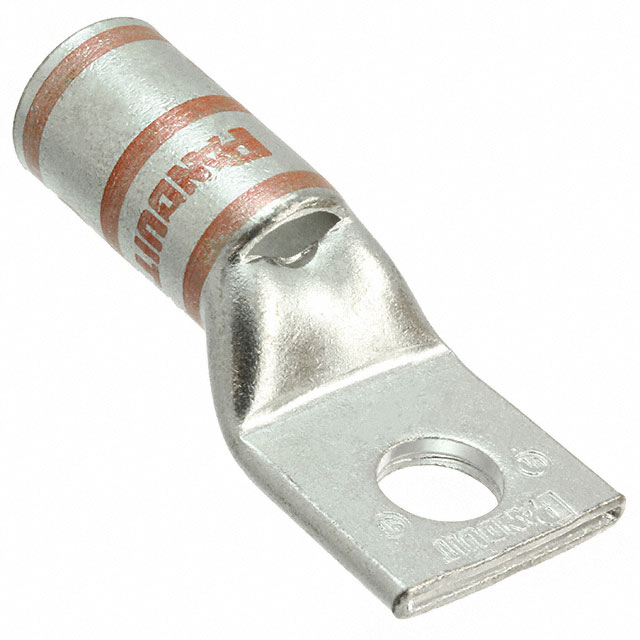

Panduit Corp LCA3/0-38-X			16.26 mm	0.64 in	Electro-Tin	Copper	0.51 in	12.95 mm	Barrel Crimp	3.3 mm	0.13 in	Free Hanging (In-Line)	Rectangular Tongue	0.375 Stud	Single Stud Hole	24.38 mm	0.96 in	Non-Insulated		59.18 mm	2.33 in	10.41 mm	0.41 "
Panduit Corp LCA3/0-56F-X	8.64 mm	0.34 in	16.26 mm	0.64 in	Electro-Tin	Copper	0.51 in	12.95 mm	Barrel Crimp	3.3 mm	0.13 in	Free Hanging (In-Line) Right Angle	Rectangular Tongue	0.3125 Stud	Single Stud Hole	24.38 mm	0.96 in	Non-Insulated

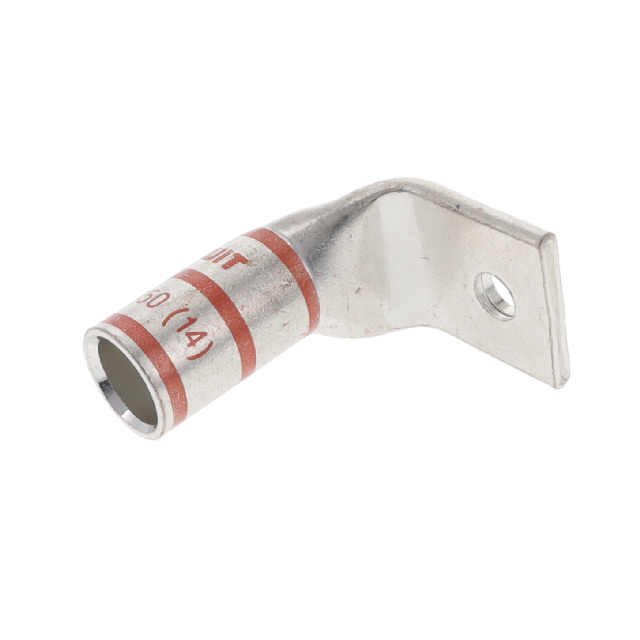

Panduit Corp LCA3/0-14F-X		6.86 mm	16.26 mm	0.64 in	Electro-Tin	Copper	0.51 in	12.95 mm	Barrel Crimp	3.3 mm	0.13 in	Free Hanging (In-Line) Right Angle	Rectangular Tongue	0.25 Stud	Single Stud Hole	24.38 mm	0.96 in	Non-Insulated	0.27 in
