8760 Series

Catalog

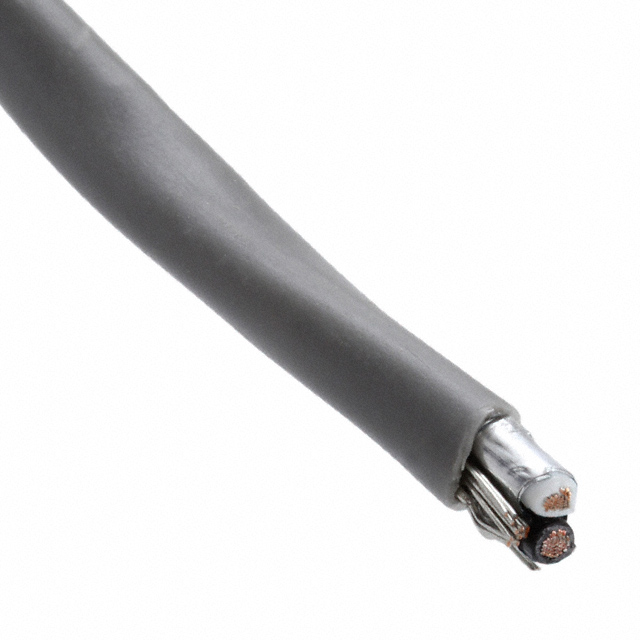

MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 1 PAIR, 18 AWG, 250 FT, 76 M

Part	Shield Material	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket Color	Conductor Insulation	Wire Gauge	Conductor Material	Shield Type	Cable Type	Length	Length	Jacket (Insulation) Material	Number of Conductors	Length [x]	Length [x]	Voltage	Usage	Conductor Insulation
Belden Inc. 8760 060250	Aluminum	100 %	0.222 in 5.64 mm	0.028 in	0.711 mm	-20 ░C	60 °C	16	30 AWG	Drain Wire	Chrome	Polyethylene (PE)	18 AWG	Copper Tinned	Foil	Multi-Conductor	76.2 m	250 ft	Poly-Vinyl Chloride (PVC)	2
Belden Inc. 8760 060500	Aluminum	100 %	0.222 in 5.64 mm	0.028 in	0.711 mm	-20 ░C	60 °C	16	30 AWG	Drain Wire	Chrome	Polyethylene (PE)	18 AWG	Copper Tinned	Foil	Multi-Conductor	152.4 m	500 ft	Poly-Vinyl Chloride (PVC)	2
Belden Inc. 8760 060U500	Aluminum	100 %	0.222 in 5.64 mm	0.028 in	0.711 mm	-20 ░C	60 °C	16	30 AWG	Drain Wire	Chrome	Polyethylene (PE)	18 AWG	Copper Tinned	Foil	Multi-Conductor	152.4 m	500 ft	Poly-Vinyl Chloride (PVC)	2
Belden Inc. 8760 0602000	Aluminum	100 %	0.222 in 5.64 mm	0.028 in	0.711 mm	-20 ░C	60 °C	16	30 AWG	Drain Wire	Chrome	Polyolefin	18 AWG	Copper Tinned	Foil	Multi-Conductor			Poly-Vinyl Chloride (PVC)	2	2000 ft	609.6 m	300 VDC	Audio Control Instrumentation	PO
