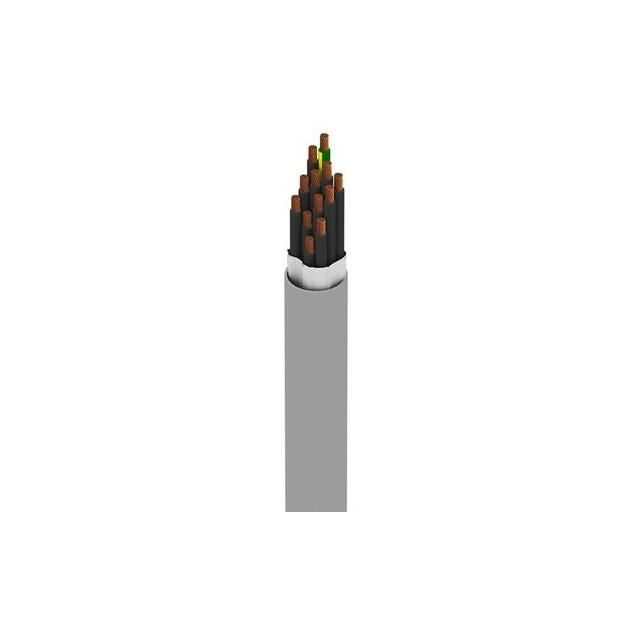

CABLE 12COND 14AWG GRAY
| Part | Ratings | Conductor Material | Voltage | Length | Length | Number of Conductors | Features | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Cable Type | Wire Gauge | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | UL Style 2587 | Copper Bare | 600 V | 152.4 m | 500 ft | 12 | Oil Resistant | Gray | 41 | 30 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 14.5 AWG | Poly-Vinyl Chloride (PVC) | 0.667 in | 16.94 mm | 0.085 in | 2.159 mm | ||
 Belden Inc. | UL Style 2587 | Copper Bare | 600 V | 12 | Oil Resistant | Gray | 41 | 30 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 14.5 AWG | Poly-Vinyl Chloride (PVC) | 0.667 in | 16.94 mm | 0.085 in | 2.159 mm | 100 ft | 30.5 m |
