umz-250 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

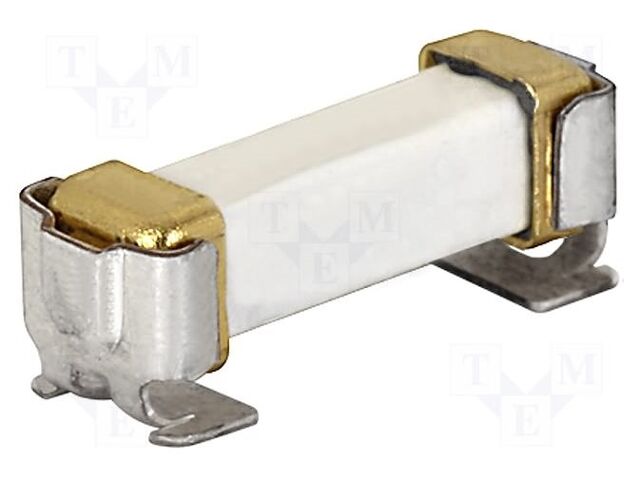

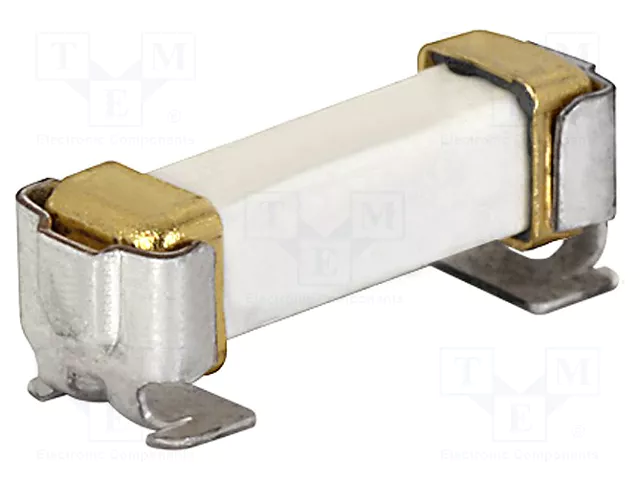

FUSE: FUSE; 315MA; 250VAC; 125VDC; TIME-LAG; CERAMIC; SMD; UMZ 250
| Part | Current Rating (Amps) | Response Time | Melting I²t | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Fuse Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Mounting Type | Voltage Rating - AC | Approval Agency | Voltage Rating - DC | Breaking Capacity @ Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.315 A | Slow Blow | 0.27 I²t | 4.2 mm | 4 mm | 0.157 " | 0.165 in | 0.445 " | 11.3 mm | Board Mount (Cartridge Style Excluded) | 85 °C | -40 C | 2-SMD Square End Block with Clip | Requires Holder Surface Mount | 277 V | cURus VDE | 250 V | 35 A 200 A |
 SCHURTER Inc. | 0.63 A | Slow Blow | 1.1 | 4.2 mm | 4 mm | 0.157 " | 0.165 in | 0.445 " | 11.3 mm | Board Mount (Cartridge Style Excluded) | 85 °C | -40 C | 2-SMD Square End Block with Clip | Requires Holder Surface Mount | 277 V | cURus VDE | 250 V | 35 A 200 A |
SCHURTER Inc. | 1.6 A | Slow Blow | 6.9 | 4.2 mm | 4 mm | 0.157 " | 0.165 in | 0.445 " | 11.3 mm | Board Mount (Cartridge Style Excluded) | 85 °C | -40 C | 2-SMD Square End Block with Clip | Requires Holder Surface Mount | 277 V | cURus VDE | 250 V | 35 A 200 A |
 SCHURTER Inc. | 0.2 A | Slow Blow | 0.092 I²t | 4.2 mm | 4 mm | 0.157 " | 0.165 in | 0.445 " | 11.3 mm | Board Mount (Cartridge Style Excluded) | 85 °C | -40 C | 2-SMD Square End Block with Clip | Requires Holder | 250 V | cURus VDE | 125 VDC | 100 A 200 kA AC |
