PFB0948 Series

Catalog

FAN AXIAL 92X38MM 48VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Weight	Weight	RPM	Bearing Type	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Features	Noise	Air Flow	Air Flow	Power (Watts)	Fan Type	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Termination	Static Pressure	Static Pressure

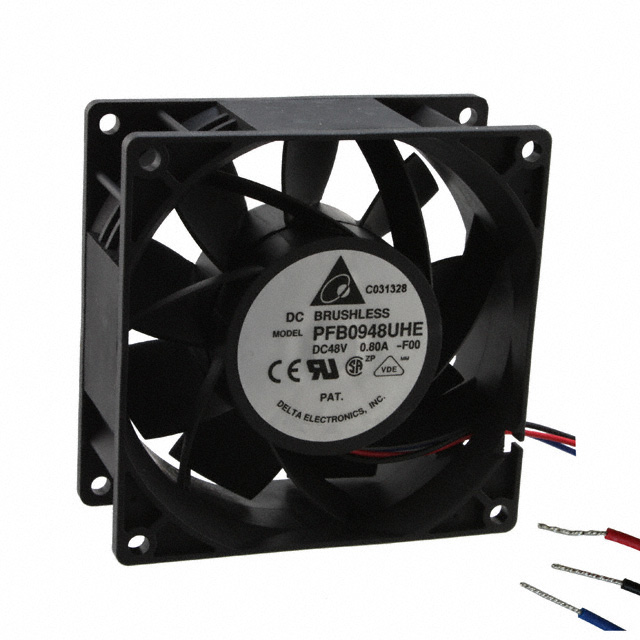

Delta Electronics PFB0948UHE-F00	28 V	56 VDC	Plastic	600 mA	Plastic	40 °C 50000 Hrs	0.553 lb	250.84 g	7000 RPM	Ball	38 mm	-10 °C	60 °C	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)	64 dB(A)	4.3 m³/min	153.5 CFM	28.8 W	Tubeaxial	48 VDC	92 mm	92 mm	3 Wire Leads	1.449 in H2O	360.9 Pa
Delta Electronics PFB0948EHE	28 V	56 VDC	Plastic	0.21 A	Plastic	70000 Hrs	0.553 lb	250.84 g	4800 RPM	Ball	38 mm	-10 °C	60 °C	CE CSA UL VDE		54 dB	2.9 m³/min	103.7 CFM	10.08 W	Tubeaxial	48 VDC	92 mm	92 mm	2 Wire Leads	0.691 in H2O	172.1 Pa
