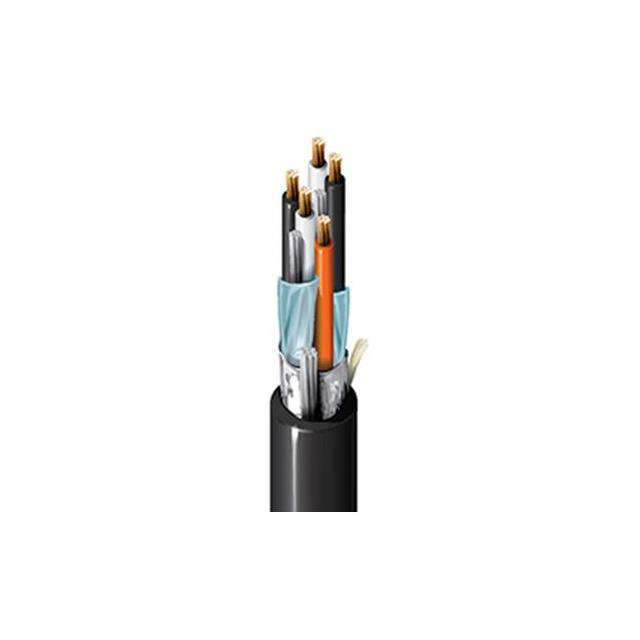

1467A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 17COND 18/22AWG
| Part | Shield Coverage | Shield Material | Conductor Insulation | Shield Type | Usage | Features | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Cable Type | Length | Length [x] | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket (Insulation) Material | Conductor Material | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Foil | Instrumentation | Drain Wire Rip Cord | 7 | 26 AWG 30 AWG | 17 Conductors | -30 ░C | 105 ░C | Black | Multi-Pair | 2286 m | 7500 ft | UL Style 2464 | 0.053 " | 1.346 mm | 14.02 mm | 0.552 " | 18 AWG 22 AWG | Poly-Vinyl Chloride (PVC) | Copper Bare | 300 VDC |
Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Foil | Instrumentation | Drain Wire Rip Cord | 7 | 26 AWG 30 AWG | 17 Conductors | -30 ░C | 105 ░C | Black | Multi-Pair | UL Style 2464 | 0.053 " | 1.346 mm | 14.02 mm | 0.552 " | 18 AWG 22 AWG | Poly-Vinyl Chloride (PVC) | Copper Bare | 300 VDC |
