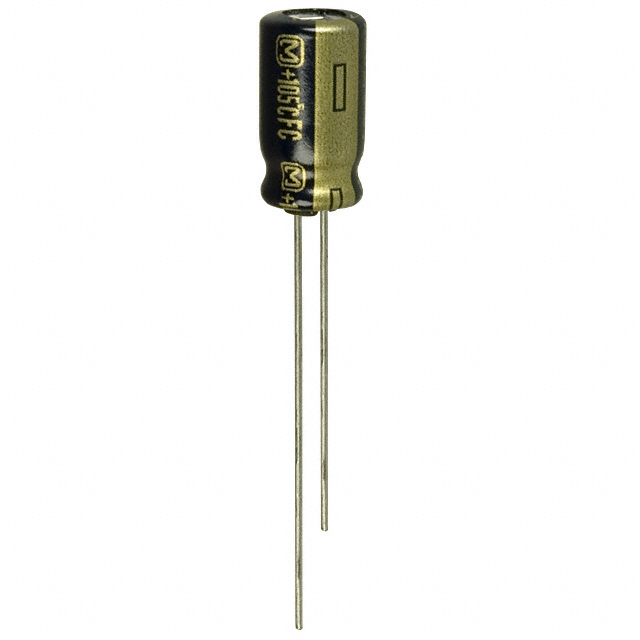

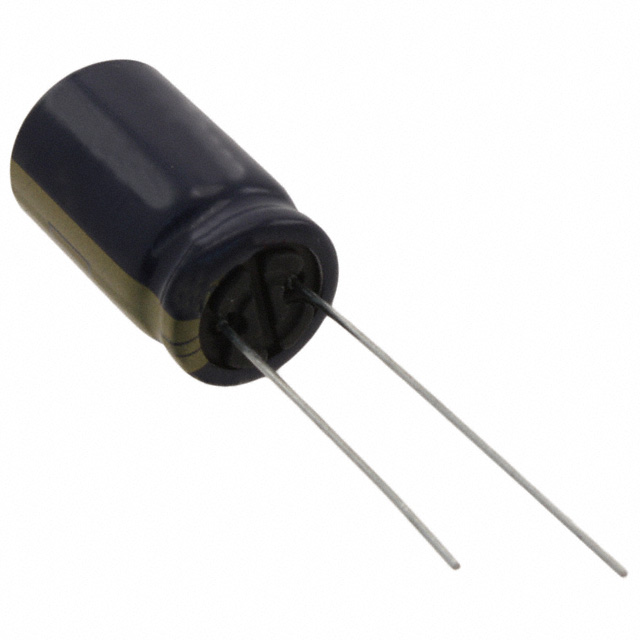

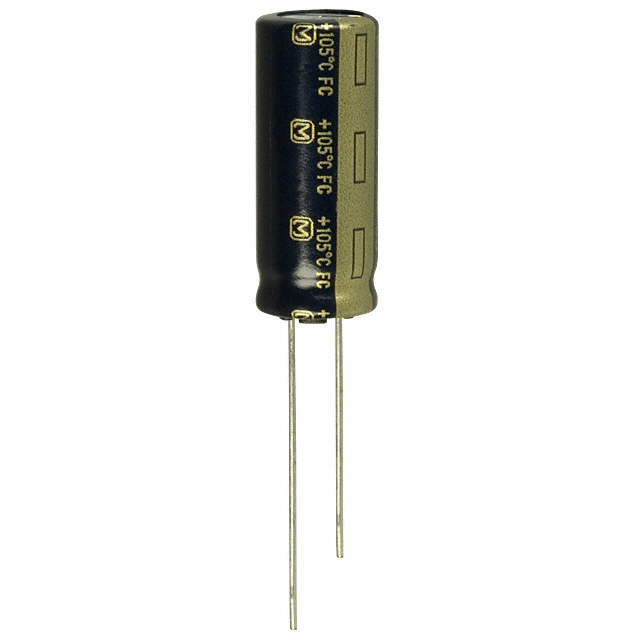

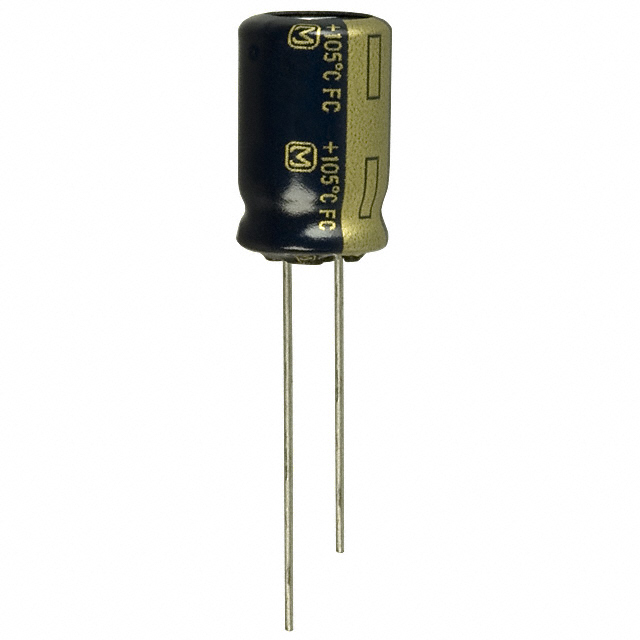

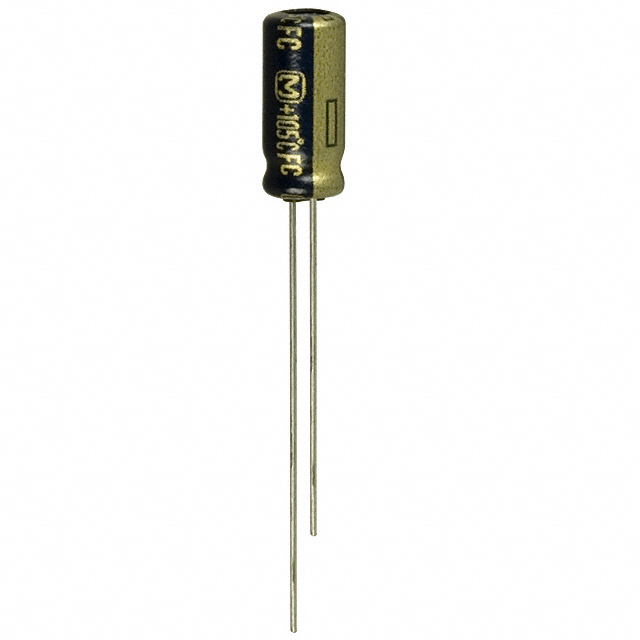

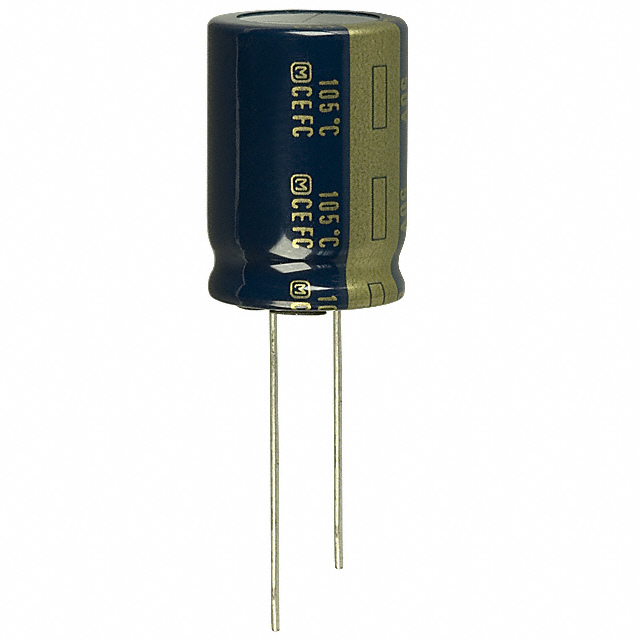

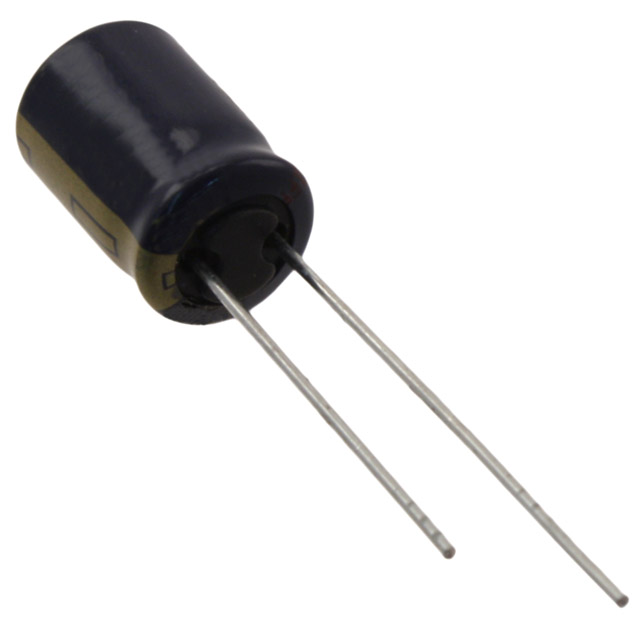

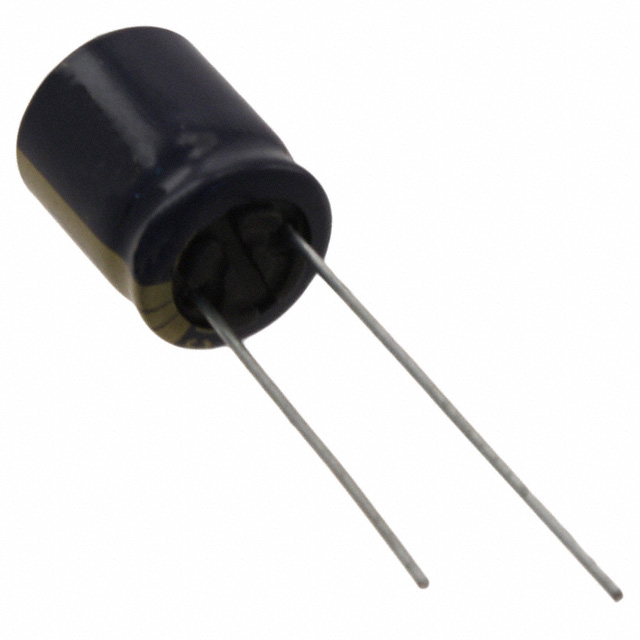

EEU-FC Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

Catalog

CAP ALUM 22UF 20% 63V RADIAL TH

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Tolerance	Lead Spacing	Lead Spacing	Mounting Type	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Applications	Ripple Current @ High Frequency	Lifetime @ Temp.	Ripple Current @ Low Frequency	Polarization	Package / Case	Impedance	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales EEU-FC1J220	105 ░C	-55 °C	0.248 in	6.3 mm	22 µF	20 %	0.098 in	2.5 mm	Through Hole	AEC-Q200	11.2 mm	0.441 in	63 V	Automotive	240 mA	1000 Hrs	156 mA	Polar	Radial Can
Panasonic Industrial Automation Sales EEU-FC1J561	105 ░C	-55 °C	0.63 in	16 mm	560 µF	20 %	0.295 in	7.5 mm	Through Hole	AEC-Q200	25 mm	0.984 "	63 V	Automotive	2.29 A	5000 Hrs	1.62 A	Polar	Radial Can	50 mOhms
Panasonic Industrial Automation Sales EEU-FC1V181B	105 ░C	-55 °C	0.394 in	10 mm	180 çF	20 %	0.197 in	5 mm	Through Hole	AEC-Q200		0.531 "	35 V	Automotive	755 mA	3000 Hrs	490.8 mA	Polar	Radial Can		13.5 mm
Panasonic Industrial Automation Sales EEU-FC1C470B	105 ░C	-55 °C	0.197 "	5 mm	47 µF	20 %	0.197 in	5 mm	Through Hole	AEC-Q200	14.5 mm	0.571 in	16 V	Automotive	175 mA	1000 Hrs	113.8 mA	Polar	Radial Can	800 mOhms
Panasonic Industrial Automation Sales EEU-FC1C122	105 ░C	-55 °C	0.394 in	10 mm	1.2 mF	20 %	0.197 in	5 mm	Through Hole	AEC-Q200	25 mm	0.984 "	16 V	Automotive	1.44 A	3000 Hrs	1.152 A	Polar	Radial Can	45 mOhms
Panasonic Industrial Automation Sales EEU-FC2A220	105 ░C	-55 °C	0.315 "	8 mm	22 µF	20 %	0.138 in	3.5 mm	Through Hole	AEC-Q200			100 V	Automotive	260 mA	2000 Hrs	169 mA	Polar	Radial Can	680 mOhms		0.453 "	11.5 mm
Panasonic Industrial Automation Sales EEU-FC1V391S	105 ░C	-55 °C	0.492 in	12.5 mm	390 µF	20 %	0.197 in	5 mm	Through Hole	AEC-Q200			35 V	Automotive	1.205 A	5000 Hrs	903.8 mA	Polar	Radial Can	65 mOhms		0.591 "	15 mm
Panasonic Industrial Automation Sales EEU-FC1V820B	105 ░C	-55 °C	0.248 in	6.3 mm	82 µF	20 %	0.197 in	5 mm	Through Hole	AEC-Q200			35 V	Automotive	400 mA	1000 Hrs	260 mA	Polar	Radial Can	250 mOhms		0.728 in	18.5 mm
Panasonic Industrial Automation Sales EEU-FC1C681	105 ░C	-55 °C	0.394 in	10 mm	680 µF	20 %	0.197 in	5 mm	Through Hole	AEC-Q200			16 V	Automotive	1.05 A	3000 Hrs	787.5 mA	Polar	Radial Can			0.63 in	16 mm
Panasonic Industrial Automation Sales EEU-FC1H4R7	105 ░C	-55 °C	0.197 "	5 mm	4.7 µF	20 %	0.079 in	2 mm	Through Hole	AEC-Q200	12 mm	0.472 "	50 VDC	Automotive	95 mA	1000 Hrs	61.75 mA	Polar	Radial Can	1.3 Ohms
