VOT8125 Series

Catalog

NZC, 800V, DIP6, 5PIN, OPTOTRIAC

Part	Current - Hold (Ih)	Approval Agency	Package / Case	Supplier Device Package	Current - DC Forward (If) (Max) [Max]	Static dV/dt (Min) [Min]	Voltage - Off State	Mounting Type	Number of Channels [custom]	Current - On State (It (RMS)) (Max) [Max]	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - LED Trigger (Ift) (Max) [Max]	Package / Case	Package / Case	Package / Case

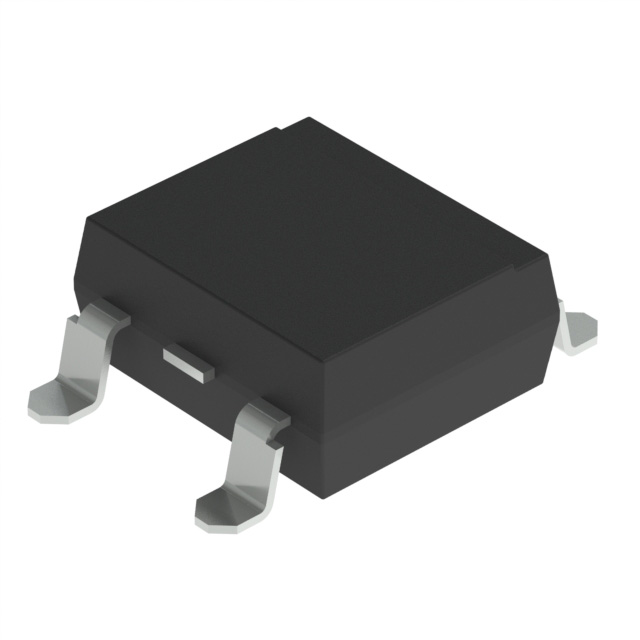

Vishay Semiconductor Opto Division VOT8125AB	400 µA	CQC cUL UL VDE	6-SMD Gull Wing	6-SMD	50 mA	1 kV/µs	800 V	Surface Mount	1	100 mA	Triac	-40 C	110 °C	5 mA

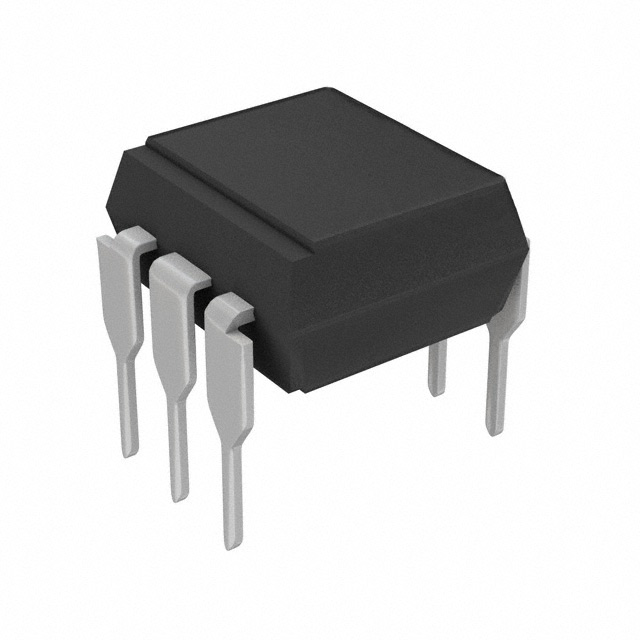

Vishay Semiconductor Opto Division VOT8125AD-V	400 µA	CQC cUL UL VDE	6-DIP	6-DIP	50 mA	1 kV/µs	800 V	Through Hole	1	100 mA	Triac	-40 C	110 °C	5 mA	0.3 in	5 Leads	7.62 mm
Vishay Semiconductor Opto Division VOT8125AG-V	400 µA	CQC cUL UL VDE	6-DIP	6-DIP	50 mA	1 kV/µs	800 V	Through Hole	1	100 mA	Triac	-40 C	110 °C	5 mA	10.16 mm	5 Leads	10.16 mm
Vishay Semiconductor Opto Division VOT8125AB-V	400 µA	CQC cUL UL VDE	6-SMD (5 Leads) Gull Wing	6-SMD	50 mA	1 kV/µs	800 V	Surface Mount	1	100 mA	Triac	-40 C	110 °C	5 mA
