WP937 Series

Catalog

LED BI-COLOR GREEN/HI-EFF. RED 565NM/627NM 2-PIN T-1 BULK

Part	Supplier Device Package	Millicandela Rating	Lens Color	Height (Max) [z]	Configuration	Lens Style	Lens Size	Lens Size	Package / Case	Color	Lens Transparency	Mounting Type	Viewing Angle	Wavelength - Peak	Wavelength - Dominant	Size / Dimension [diameter]	Voltage - Forward (Vf) (Typ)	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak	Wavelength - Dominant	Current - Test	Current	Lens Type	Voltage Rating	Current	Lens Size [diameter]
Kingbright WP937EGW	T-1	10 mcd 14 mcd	White	5.6 mm	Bidirectional	Round with Domed Top	3 mm	T-1	Radial	Green Red	Diffused	Through Hole	60 °	565 nm 627 nm	568 nm 617 nm	2.9 mm	2 V 2.2 V	20 mA	20 mA
Kingbright WP937GYW	T-1	8 mcd 14 mcd	White	5.6 mm	Bidirectional	Round with Domed Top	3 mm	T-1	Radial	Green Yellow	Diffused	Through Hole	60 °			2.9 mm	2.1 V 2.2 V			565nm Green 590nm Yellow	568nm Green 588nm Yellow	20 mA 20 mA
Kingbright WP937EW/EGW		10 mcd 14 mcd			Single	Round with Domed Top	3 mm	T-1		Green Red		Right Angle Through Hole	60 °	568 nm 617 nm									25 mA 30 mA	Diffused White	2 V 2.2 V
Kingbright WP937MD/2YGW		8 mcd 14 mcd			2 High	Round with Domed Top				Green (x 1) Yellow (x 1)		Right Angle Through Hole	60 °	568 nm 588 nm										Diffused White	2.1 V 2.2 V	25mA Green 30mA Yellow	2.9 mm

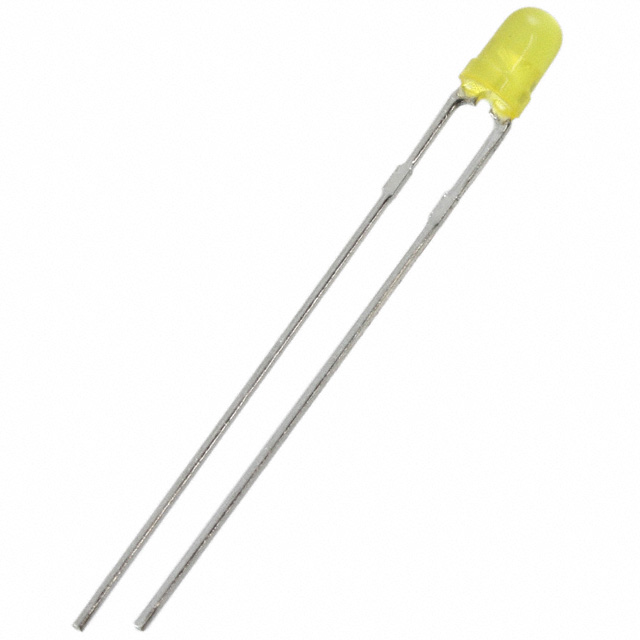

Kingbright WP937YYD	T-1	9 mcd	Yellow	5.6 mm	Standard	Round with Domed Top	3 mm	T-1	Radial	Yellow	Diffused	Through Hole	60 °	590 nm	588 nm	2.9 mm	2.1 V					20 mA
Kingbright WP937MD/2EGW		10 mcd 14 mcd			2 High	Round with Domed Top	3 mm	T-1		Green (x 1) Red (x 1)		Right Angle Through Hole	60 °	568 nm 617 nm									25 mA 30 mA	Diffused White	2 V 2.2 V
Kingbright WP937AD/EGW		10 mcd 14 mcd			Single	Round with Domed Top	3 mm	T-1		Green Red		Right Angle Through Hole	60 °	568 nm 617 nm									25 mA 30 mA	Diffused White	2 V 2.2 V
Kingbright WP937SA/3EGW		10 mcd 14 mcd			3 High	Round with Domed Top				Green Red		Right Angle Through Hole	60 °	565 nm 627 nm									25 mA 30 mA	Diffused White	2 V 2.2 V		2.9 mm
Kingbright WP937EYW	T-1	8 mcd 10 mcd	White	5.6 mm	Bidirectional	Round with Domed Top	3 mm	T-1	Radial	Red Yellow	Diffused	Through Hole	60 °	590 nm 627 nm		2.9 mm	2 V 2.1 V				588nm Yellow 617nm Red	20 mA 20 mA

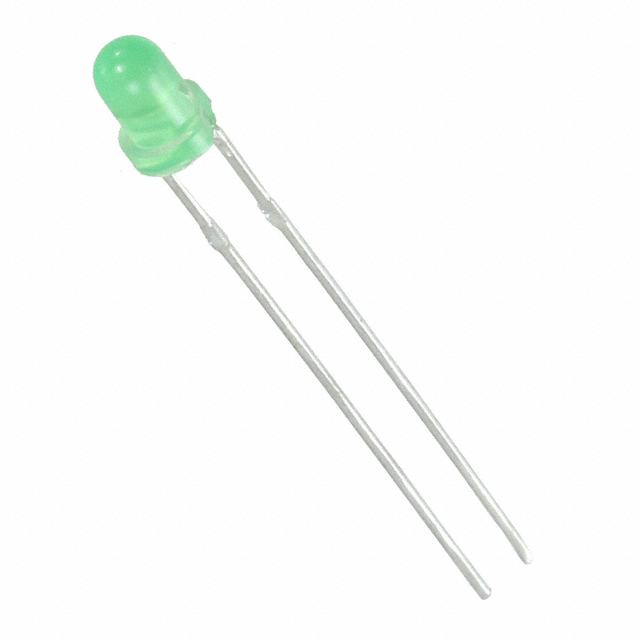

Kingbright WP937GGD	T-1	10 mcd	Green	5.6 mm	Bidirectional	Round with Domed Top	3 mm	T-1	Radial	Green	Diffused	Through Hole	60 °	565 nm	568 nm	2.9 mm	2.2 V					20 mA
