K21MH7-P Series
Manufacturer: ODU
Beta
⌘K

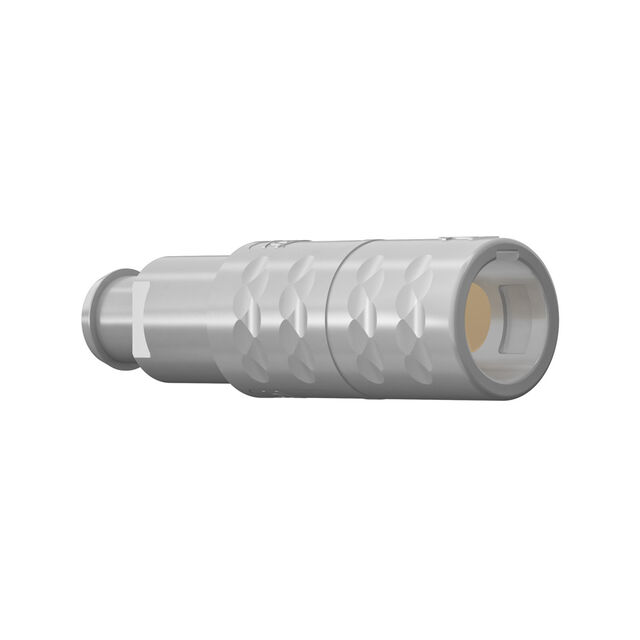

ODU MEDI-SNAP RCEPT, INLINE, STY
| Part | Ingress Protection | Contact Material | Primary Material | Applications | Number of Positions | Fastening Type | Features | Orientation | Voltage Rating | Contact Finish - Mating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Shielding | Color | Current Rating (Amps) | Material Flammability Rating | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Backshell Material, Plating | Connector Type | Shell Material | Shell Size - Insert | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP50 - Dust Protected | Brass | Plastic | Industrial Medical Testing Equipment & Measurement | 7 | Detent Lock Push-Pull | Backshell Strain Relief | H | 33 V | Gold | Free Hanging (In-Line) | 120 °C | -50 °C | Polyetheretherketone (PEEK) | Unshielded | Gray | 7.5 A | UL94 V-0 | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | Polysulfone (PSU) | Receptacle Female Sockets | Polysulfone (PSU) | 1 | ||
IP50 - Dust Protected | Brass | Plastic | Industrial Medical Testing Equipment & Measurement | 2 | Detent Lock Push-Pull | Backshell Strain Relief | H | 48 VDC | Gold | Free Hanging (In-Line) | 120 °C | -50 °C | Polyetheretherketone (PEEK) | Unshielded | Gray | 12 Amps | UL94 V-0 | 0.205 in | 0.157 in | Polysulfone (PSU) | Receptacle Female Sockets | Polysulfone (PSU) | 1 | 4 mm 5.2 mm |
