TPS82740A Series

200-mA Step Down Converter Module with 360nA Iq

Catalog

200-mA Step Down Converter Module with 360nA Iq

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Outputs	Package / Case	Efficiency	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Supplier Device Package	Applications	Voltage - Input (Max) [Max]	Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Regulator Topology	Main Purpose	Board Type	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Utilized IC / Part	Supplied Contents	Current - Output
Texas Instruments TPS82740BSIPR	Surface Mount	85 °C	-40 °C	OCP Remote On/Off UVLO	1	9-TBGA Module	90 %	2.2 V	0.09 "	0.04 in	3 mm	2.4 mm	1 mm	0.12 in	9-USIP	ITE (Commercial)	5.5 V	Non-Isolated PoL Module	3.3 V	2.6 V	200 mA
Texas Instruments TPS82740ASIPT	Surface Mount	85 °C	-40 °C	OCP Remote On/Off UVLO	1	9-TBGA Module	90 %	2.2 V	0.09 "	0.04 in	3 mm	2.4 mm	1 mm	0.12 in	9-USIP	ITE (Commercial)	5.5 V	Non-Isolated PoL Module	2.5 V	1.8 V	200 mA

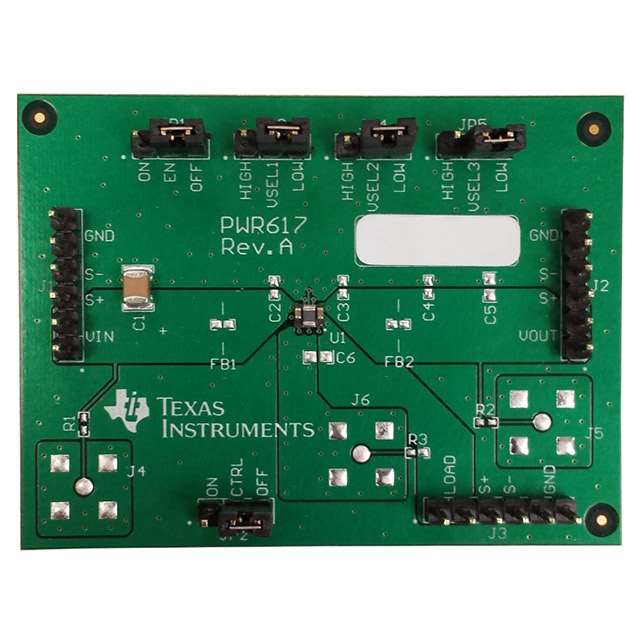

Texas Instruments TPS82740BEVM-617																						Buck	DC/DC Step Down	Fully Populated	3.3 V	2.6 V	2.2 V	5.5 V	Non-Isolated	1	TPS82740B	Board(s)	300 mA
Texas Instruments TPS82740BSIPT	Surface Mount	85 °C	-40 °C	OCP Remote On/Off UVLO	1	9-TBGA Module	90 %	2.2 V	0.09 "	0.04 in	3 mm	2.4 mm	1 mm	0.12 in	9-USIP	ITE (Commercial)	5.5 V	Non-Isolated PoL Module	3.3 V	2.6 V	200 mA

Catalog

200-mA Step Down Converter Module with 360nA Iq

Key Features

• 360-nA Typical Quiescent CurrentUp to 90% Efficiency at 10-µA Output CurrentPin-Selectable Output Voltages in 100-mV StepsIntegrated Slew Rate Controlled Load SwitchUp to 200-mA Output CurrentInput Voltage Range VINfrom 2.2 V to 5.5 VRF Friendly DCS-Control™Low Output Voltage RippleAutomatic Transition to No Ripple 100% ModeDischarge Function on VOUT and LOADSub 1.1-mm Profile SolutionTotal Solution Size < 6.7mm2Small 2.3 mm × 2.9 mm MicroSIP™ Package360-nA Typical Quiescent CurrentUp to 90% Efficiency at 10-µA Output CurrentPin-Selectable Output Voltages in 100-mV StepsIntegrated Slew Rate Controlled Load SwitchUp to 200-mA Output CurrentInput Voltage Range VINfrom 2.2 V to 5.5 VRF Friendly DCS-Control™Low Output Voltage RippleAutomatic Transition to No Ripple 100% ModeDischarge Function on VOUT and LOADSub 1.1-mm Profile SolutionTotal Solution Size < 6.7mm2Small 2.3 mm × 2.9 mm MicroSIP™ Package

Description

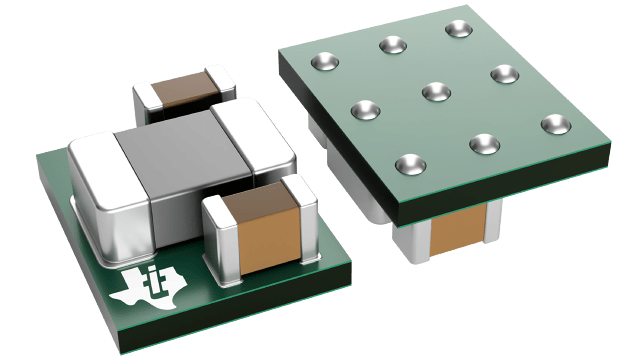

The TPS82740 is the industry’s first step-down converter module featuring typically 360-nA quiescent current consumption. It is a complete MicroSIPTMDC/DC step-down power solution intended for ultra low-power applications. The module includes the switching regulator, inductor and input/output capacitors. The integration of all required passive components enables a tiny solution size of only 6.7 mm2. This new DCS-Control™ based device extends the light load efficiency range below 10-µA load currents. It supports output currents up to 200 mA. The device operates from rechargeable Li-Ion batteries, Li-primary battery chemistries such as Li-SOCl2, Li-MnO2 and two or three cell alkaline batteries. The input voltage range up to 5.5 V also allows operation from an USB port and thin-film solar modules. The output voltage is user selectable by three voltage select pins (VSEL), within a range from 1.8 V to 2.5 V (TPS82740A) and 2.6 V to 3.3 V (TPS82740B) in 100-mV steps. The TPS82740 features low output voltage ripple and low noise. Once the battery voltage comes close to the output voltage (close to 100% duty cycle), the device enters no ripple 100% mode operation preventing an increase of output voltage ripple. In this case the device stops switching and the output is connected to the input voltage. The integrated slew rate controlled load switch with a typical ON-resistance of 0.6Ω distributes the selected output voltage to a temporarily used sub-system. The TPS82740 is available in a small 9-bump 6.7 mm2MicroSiP™ package. The TPS82740 is the industry’s first step-down converter module featuring typically 360-nA quiescent current consumption. It is a complete MicroSIPTMDC/DC step-down power solution intended for ultra low-power applications. The module includes the switching regulator, inductor and input/output capacitors. The integration of all required passive components enables a tiny solution size of only 6.7 mm2. This new DCS-Control™ based device extends the light load efficiency range below 10-µA load currents. It supports output currents up to 200 mA. The device operates from rechargeable Li-Ion batteries, Li-primary battery chemistries such as Li-SOCl2, Li-MnO2 and two or three cell alkaline batteries. The input voltage range up to 5.5 V also allows operation from an USB port and thin-film solar modules. The output voltage is user selectable by three voltage select pins (VSEL), within a range from 1.8 V to 2.5 V (TPS82740A) and 2.6 V to 3.3 V (TPS82740B) in 100-mV steps. The TPS82740 features low output voltage ripple and low noise. Once the battery voltage comes close to the output voltage (close to 100% duty cycle), the device enters no ripple 100% mode operation preventing an increase of output voltage ripple. In this case the device stops switching and the output is connected to the input voltage. The integrated slew rate controlled load switch with a typical ON-resistance of 0.6Ω distributes the selected output voltage to a temporarily used sub-system. The TPS82740 is available in a small 9-bump 6.7 mm2MicroSiP™ package.
