37501 Series
Manufacturer: Belden Inc.
Beta
⌘K

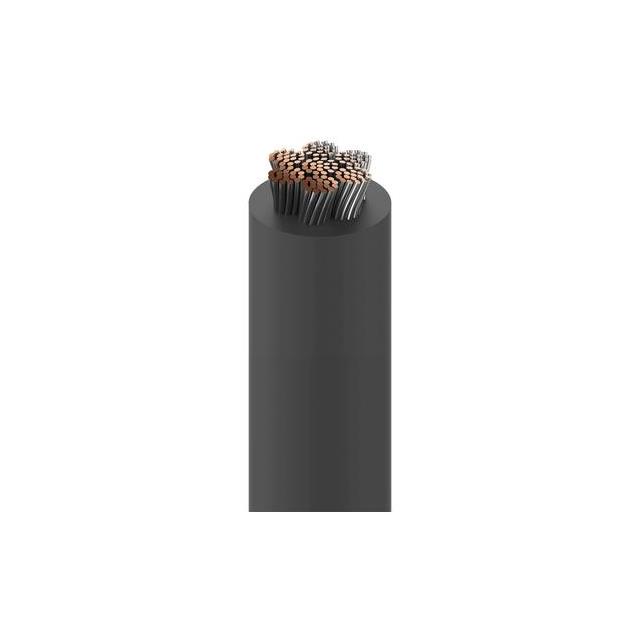

HOOK-UP STRND 1AWG 7500V BLK
| Part | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [x] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Cable Type | Jacket Color | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Ethylene Propylene Terpolymer Rubber (EPDM) | 16.21 mm | 0.638 " | Copper Tinned | 1 AWG | 210 | 24 AWG | 15.24 m | 50 ft | 3.33 mm | 0.131 in | High Temperature High Voltage | -55 C | 150 °C | UL Style 3499 | Hook-Up | Black | 7.5 kV |
Belden Inc. | Ethylene Propylene Terpolymer Rubber (EPDM) | 16.21 mm | 0.638 " | Copper Tinned | 1 AWG | 210 | 24 AWG | 152.4 m | 500 ft | 3.33 mm | 0.131 in | High Temperature High Voltage | -55 C | 150 °C | UL Style 3499 | Hook-Up | Black | 7.5 kV |
