W23F2C-P Series
Manufacturer: ODU
Beta
⌘K

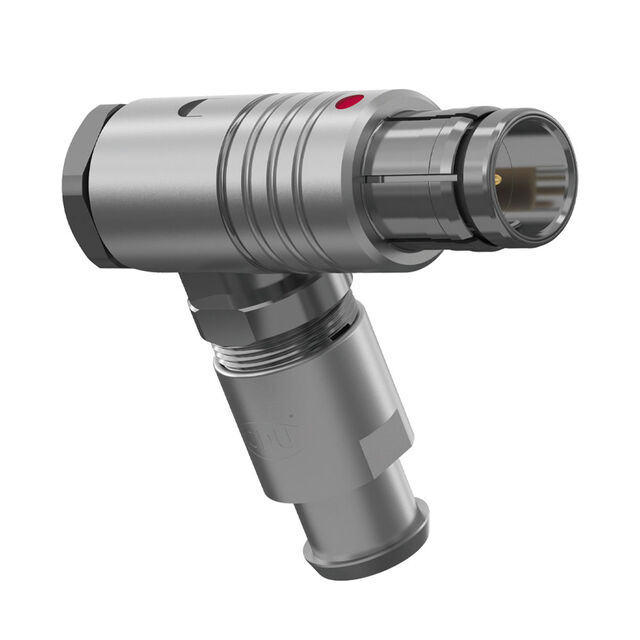

ODU MINI-SNAP PLUG, R/A, SZ 3, S
| Part | Color | Current Rating (Amps) | Connector Type | Insert Material | Fastening Type | Applications | Shell Material | Voltage Rating | Shell Size - Insert | Material Flammability Rating | Backshell Material, Plating | Features | Primary Material | Number of Positions | Contact Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Orientation [custom] | Contact Finish - Mating | Ingress Protection | Shell Finish | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Silver | 7.5 A | Plug Male Pins | Polyetheretherketone (PEEK) | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Brass | 300 VDC | 3 TPI | UL94 V-0 | Brass Chrome over Nickel | Backshell Strain Relief | Metal | 27 | Brass | Free Hanging (In-Line) Right Angle | 120 °C | -40 C | Unshielded | 2 | Gold | IP50 - Dust Protected | Chrome over Nickel | 0.256 in | 0.276 " | 7 mm | 6.5 mm | |
Silver | 7.5 A | Plug Male Pins | Polyetheretherketone (PEEK) | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Brass | 300 VDC | 3 TPI | UL94 V-0 | Brass Chrome over Nickel | Backshell Strain Relief | Metal | 27 | Brass | Free Hanging (In-Line) Right Angle | 120 °C | -40 C | Unshielded | 2 | Gold | IP50 - Dust Protected | Chrome over Nickel |
