3K208 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

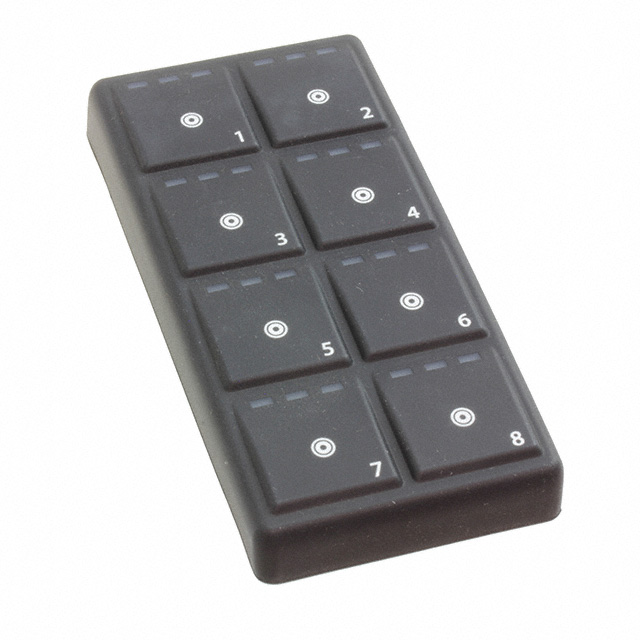

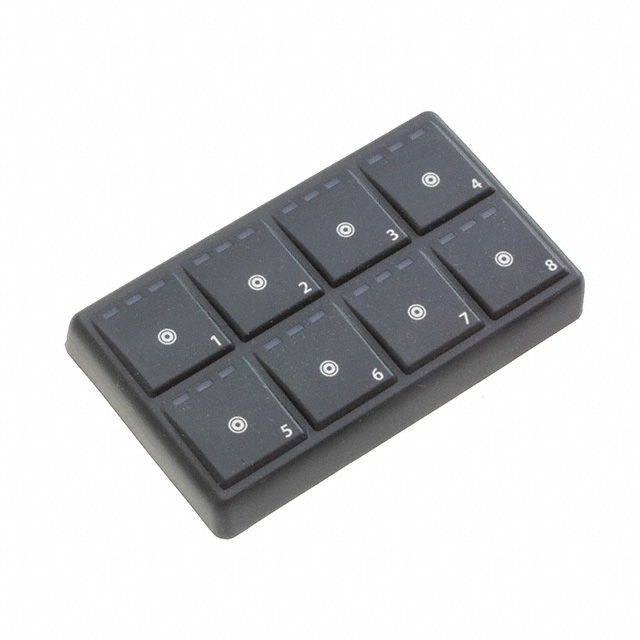

INPUT DEVICES ASM,3K STD,8H,CANOPEN,TARGET
| Part | Operational Life | Approval Agency | Ingress Protection | Legend Type | Output Type | Legend | Panel Cutout Dimensions [diameter] | Switch Type | Key Color | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Number of Keys | Illumination | Matrix (Columns x Rows) [custom] | Matrix (Columns x Rows) [custom] | Legend Color | Key Type | Mounting Type | Matrix (Columns x Rows) [x] | Matrix (Columns x Rows) [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 1000000 Cycles | CE | IP67 - Dust Tight Waterproof | Fixed | CAN Bus (CANopen) | Targets | 40.64 mm | Snap Dome | Black | 85 °C | -40 C | Connector | 8 | Illuminated | 4 | 2 | White | Rubber Overlay | Panel Mount Front | ||
 Grayhill Inc. | 1000000 Cycles | CE | IP67 - Dust Tight Waterproof | Fixed | CAN Bus (J1939) | Targets | 40.64 mm | Snap Dome | Black | 85 °C | -40 C | Connector | 8 | Illuminated | White | Rubber Overlay | Panel Mount Front | 2 | 4 | ||
Grayhill Inc. | 1000000 Cycles | CE | IP67 - Dust Tight Waterproof | Fixed | CAN Bus (CANopen) | Targets | 40.64 mm | Snap Dome | Black | 85 °C | -40 C | Connector | 8 | Illuminated | White | Rubber Overlay | Panel Mount Front | 2 | 4 | ||
Grayhill Inc. | 1000000 Cycles | CE | IP67 - Dust Tight Waterproof | Fixed | CAN Bus (J1939) | Targets | 40.64 mm | Snap Dome | Black | 85 °C | -40 C | Connector | 8 | Illuminated | 4 | 2 | White | Rubber Overlay | Panel Mount Front |
